Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce
Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce
Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce
Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce
Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce
Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-FX-119
Certification :
CE
Place of Origin :
Wuxi,China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
100 Units/ Month
Delivery Time :
30 days
Packaging Details :
Standard wooden case for export
Name :
Carton Case Side Sealer
Automatic Grade :
Semi Auto
Available Carton Size :
150- ∞mm(L)*180-500mm(W)*130-500mm(H)
Size Adjustment :
Manual
Belt Driven :
Up&down belt drive
Flap folding :
Manual
Application :
daily chemical industry, pharmaceutical industry, toy industry, hardware industry, handicrafts, digital communication, packaging and printing, food
Tape position :
Side sealing
Sealing way :
Tape
Tape distance :
50/60/70mm
Description

Carton Case Side Sealer Machine for Commercial/ E-Commerce

  • Product Desription

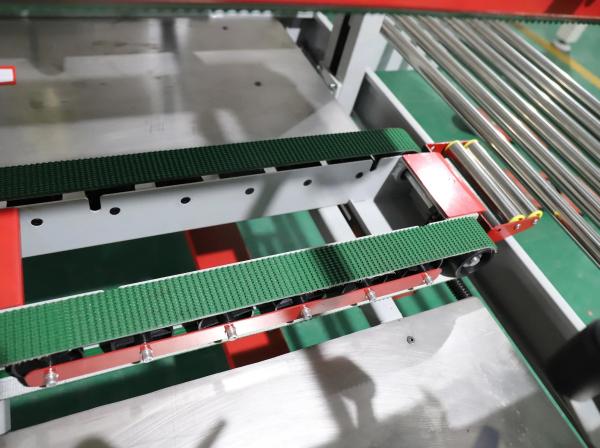

The side carton sealing machine is a carton sealing machine packaging equipment that automatically seals the upper and lower bottoms of the carton with tape. The side carton sealer is lightweight, durable and easy to operate. Side belt drive, suitable for narrower cartons (such as computer cases and LCD screens). Any self-adhesive tape will work.

The side case sealer is suitable for beverages, floor tiles and furniture packaging. Single size carton is applicable and can be adjusted. The upper and lower belts are driven, the carton conveying is smooth, and the sealing effect is perfect.

  • Technical Parameter
TECHNICAL SPECIFICATION
Applicable carton size 150- ∞mm(L)*180-500mm(W)*100-500mm(H)
Conveying speed 20 m / min
Equipment size 1600mm(L)*780mm(W)*1340mm(H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 0.18kw
Applicable Pressure 5-6kgf/c m
Tape width 48/60/75mm(Alternative use)
Equipment weight 160kg
  • Working Principle

Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce

  • Product Features

  1. Manufactured with Taiwan technology, and imported parts, electrical components and pneumatic components are selected;
  2. According to the carton specifications, manually adjust the width and height;
  3. Suitable for carton boxes with side openings, such as beverages, floor tiles, etc.
  4. Upper and lower belt drive, sealing on both sides, economical, fast and stable;
  5. Equipped with a knife guard to avoid accidental stab injuries during operation;
  6. It can be operated on a stand-alone machine, or it can be used in conjunction with an automatic assembly line.*

  • Product Samples

Side Commercial Semi Auto Carton Sealer Manual Box Taping Machine For E-Commerce
