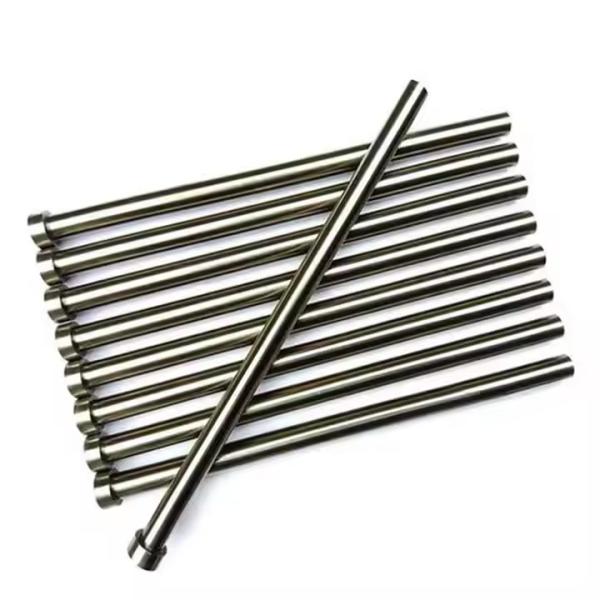

Injection Mould DME dMS Nitrided Ejector Pins Plastic Mold Stepped Straight
Injection Mould DME dMS Nitrided Ejector Pins Plastic Mold Stepped Straight
Specifications
Inspection :
100% before shipment
Usage :
Plastic Brick Mould
Feature :
Long Service Life
Keyword :
Injection Mould Dme Ejector Pins
Sample :
Available
Tolerance :
±0.01mm
MOQ :
1
Price :
$5-$50
Packaging Details :
Carton
Delivery Time :
7-15 work days
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
50000 Pieces/Day
Description

For Injection Mould Dme Ejector Pins Plastic Molde Stepped Straight

We focus on precision machining of multi-cavity mold components, including plastic mold cavities, core pins, inserts, movable core assemblies, and automotive die-casting mold cores and inserts. Our products are primarily used in precision packaging molds for industries such as daily-use packaging, cosmetics packaging, medical consumables and packaging, as well as automotive, electronics, and automation.

The ejector pin is a part used in the mold. Its main function is to push the cooled and solidified plastic part out of the mold cavity after the injection molding process is completed. When the mold is opened, the ejector pin cooperates with the ejection mechanism of the injection molding machine to move along the axial direction, exerting a thrust on the plastic part to make it leave the mold for subsequent removal and processing procedures, thereby improving the efficiency and automation of the injection molding process.

Injection Mould DME dMS Nitrided Ejector Pins Plastic Mold Stepped Straight
Product Name
Ejector Pin
Material
SKD-61, SKH-51, HSS, SUJ2...
Type
Stamping Die
Hardness
HRC58-60
Specification
Standard or Customized
Advantage
High internal toughness, not easy to break under impact
Application
Hardware stamping molds, die-casting molds, plastic molds, mechanical automation equipment, etc.

Injection Mould DME dMS Nitrided Ejector Pins Plastic Mold Stepped Straight

Injection Mould DME dMS Nitrided Ejector Pins Plastic Mold Stepped Straight
Product information, please consult for details
Product Name
Ejector pin/Straight/Shoulder/Core pins/Ejector Blades/Black ejector pin
Material
SKD61,SKH51,HSS,M2,H13,L2,SKS21,1.2344
Alloyed Steel,Tool Steel,Premium Hot Work Steel,
Withstand temperature
100oC-200oC, 600oC, 1000oC
Standard size:
L: 100mm-1000mm, D: 1mm-35mm
what can be customized:
Custom Flats,
Relief Grooves,
Special Coatings,
Customer specified corner radius
Heads can be annealed for machining or blackened
Tolerance of .0003” on the diameter
2 to 5 micro-inch finish is standard - eliminating galling
