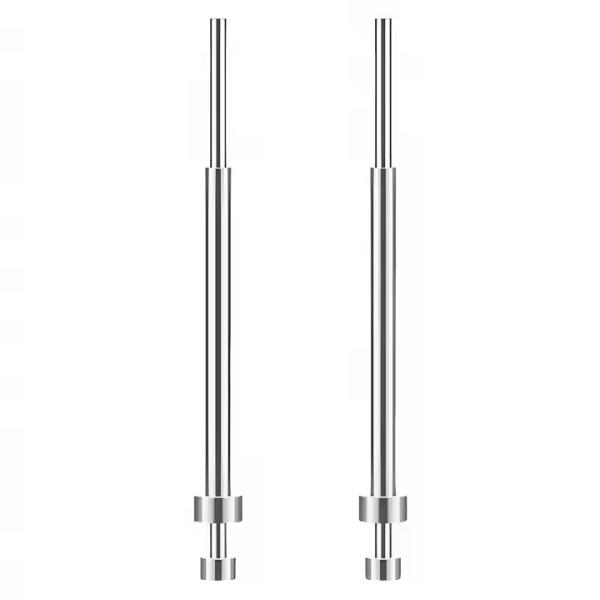

Mirror Polished SKD61 Ejector Guide Pin Plastic In Mold Parts
Mirror Polished SKD61 Ejector Guide Pin Plastic In Mold Parts
Specifications
Hardness :
HRC50°±2°
Polishness :
Mirror Polished
Feature :
Long Service Life
Inspection :
100% before shipment
Shaping Mode :
Plastic Mould/Casting Mold/Punch Mold
Tolerance :
±0.01mm
MOQ :
1
Price :
$5-$50
Packaging Details :
Carton
Delivery Time :
7-15 work days
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
50000 Pieces/Day
Description

SKD61 Material Ejector Pins Plastic Mold Parts For Injection Mold Accessories Standard Accessory

The working principle of the ejector pin is to push the molded product out of the mold by applying pressure to its tip. During the injection molding process, when the molten resin fills the cavity, the tip of the ejector pin is under pressure. Since the ejector pin is in the shape of a long and thin pin, if a large compressive load is applied to the end, it may cause the middle part of the pin to bend or break. This phenomenon is called "buckling".

Mirror Polished SKD61 Ejector Guide Pin Plastic In Mold Parts
Product Name
Ejector Pin
Material
SKD-61, SKH-51, HSS, SUJ2...
Type
Stamping Die
Hardness
HRC58-60
Specification
Standard or Customized
Advantage
High internal toughness, not easy to break under impact
Application
Hardware stamping molds, die-casting molds, plastic molds, mechanical automation equipment, etc.

Mirror Polished SKD61 Ejector Guide Pin Plastic In Mold Parts

Mirror Polished SKD61 Ejector Guide Pin Plastic In Mold Parts
Product information, please consult for details
Product Name
Ejector pin/Straight/Shoulder/Core pins/Ejector Blades/Black ejector pin
Material
SKD61,SKH51,HSS,M2,H13,L2,SKS21,1.2344
Alloyed Steel,Tool Steel,Premium Hot Work Steel,
Withstand temperature
100oC-200oC, 600oC, 1000oC
Standard size:
L: 100mm-1000mm, D: 1mm-35mm
what can be customized:
Custom Flats,
Relief Grooves,
Special Coatings,
Customer specified corner radius
Heads can be annealed for machining or blackened
Tolerance of .0003” on the diameter
2 to 5 micro-inch finish is standard - eliminating galling
