Specifications
Brand Name :
YL
Model Number :
YLFP-SP-XY
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
1 set per 35 days
Delivery Time :
30-35days
Packaging Details :
1 plywood case
Suitable material :
PVC, ABS, paper card etc.
Maximum layout :
350X600mm(Max)
Dimensions :
L1700×W1080×H1600mm
Output :
4000~6000 pcs /hour(depends on the punch head number)
Control mode :
PLC program+ servo system
Weight :
850Kg
Description

PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

Full Automatic Special Shape Card Puncher/Customized Shape Card Puncher/Specially Shaped Card Die Cutter/Full Auto Abnormal Shape Card Die Cutter YLFP-SP-XY

1. Introduction of PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

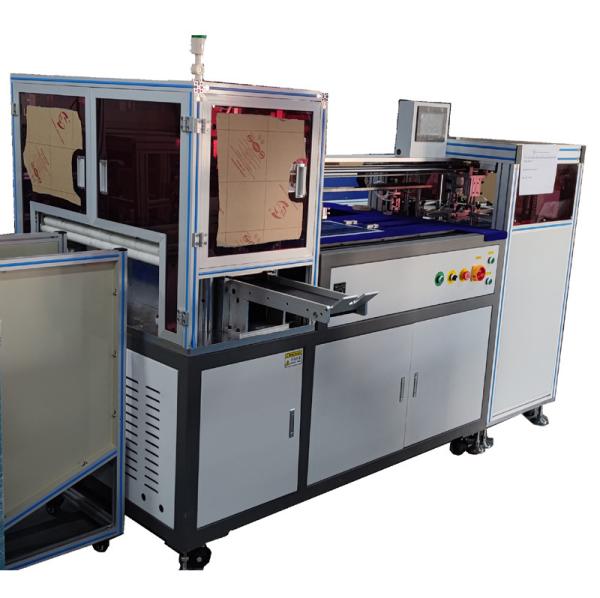

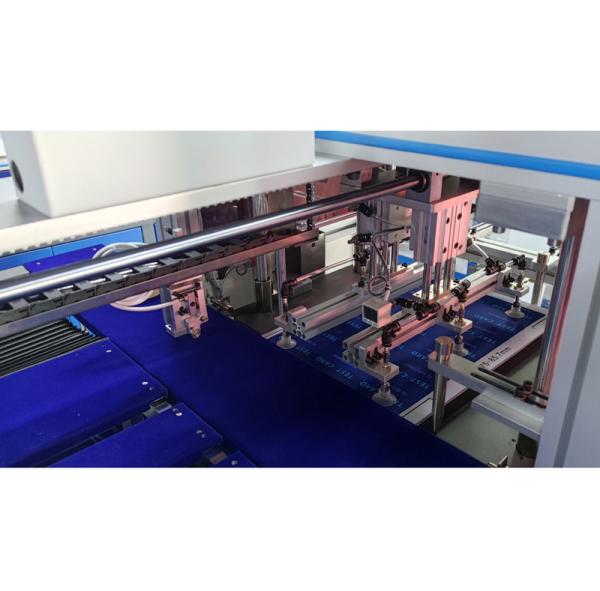

The machine is designed for punching the big laminated sheets into special shape card (specially shaped card, abnormal shape card or customized shape card) in a fully automatic way. It has the pick-placing unit for printed sheet picking and placing purpose. It adopts touch screen with friendly man-machine interface operation, and two groups of servo driven screw module in X and Y direction is used for plastic sheet feeding, and it can realizes the two-direction positioning feeding in X and Y axis with high punching precision.

PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

2. Features of PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

Distance can be freely adjusted according to the printed sheet layout, and the material punching does not need to be cut in advance.

1.) The high-power servo motor applied in the machine has the advantages of low power noise, stable power output and adjustable punching speed. When it is needed to punch cards with different thickness, its performance is much better.

2. ) 10 sets of layout position parameters can be stored in the system, which is convenient to call out and use, and it is convenient to change different punched products.

3.) The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown.

PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

3.Technical Parameter of PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

Power supply AC 380V/50 HZ Suitable material PVC, ABS, paper card etc.
Power 5.5KW Maximum layout 350X600mm(Max)
Air supply 6 kg/c㎡(no water) Output 4000~6000 pcs /hour(depends on the punch head number)
Air consumption About 70L/min Control mode PLC program+ servo system
Weight 850Kg Number of operators 1 person
Punch precise ±0.10mm Dimensions L1700×W1080×H1600mm

PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

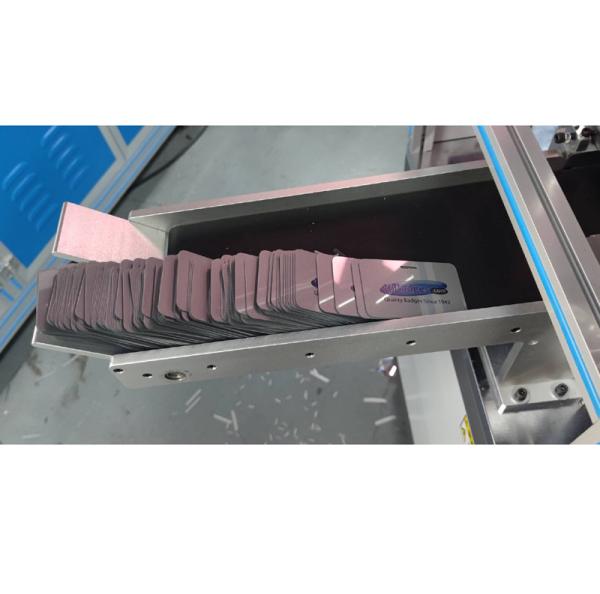

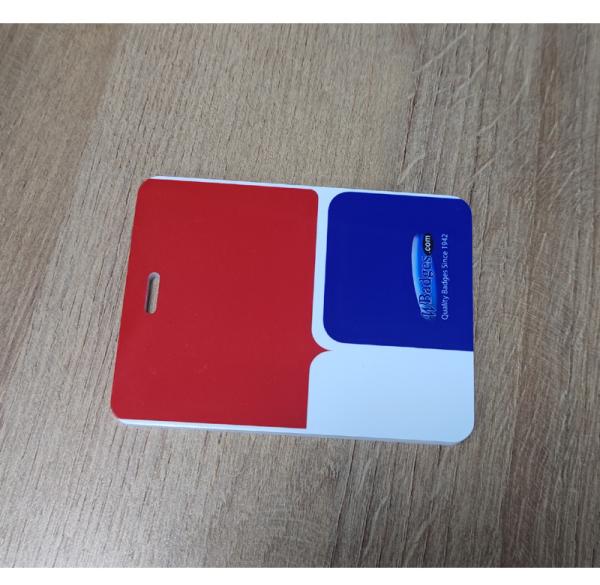

4. Application of PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

PLC Controlled Full Automatic Abnormal Shape Card Die Cutter YLFP-SP-XY For PVC, ABS, Paper Card

The card making machine -Full Automatic Special Shape Card Puncher YLFP-SP-XY. is also known as Customized Shape Card Puncher, Specially Shaped Card Die Cutter or Abnormal Shape Card Die Cutter YLFP-SP-XY.
