Specifications
Brand Name :
YL
Model Number :
YLP-SN
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 set per 35 days
Delivery Time :
30-35days
Packaging Details :
1 plywood case
Speed :
9000~12000 pcs /hr
Applicable PVC sheet layout: :
3X8, 4X8 or 5X8
Applicable material :
Various plastic sheets including PVC, ABS, PETG, etc.
Punch precision :
±0.1mm
Control mode: :
PLC programming+ servo system
Total power :
3.5KW
Description

Sequential Number Card Puncher For CR 80 PVC Card punching YLP-SN

Sequential Number Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-SN

(Sequential number card puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)

1. Introduction of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

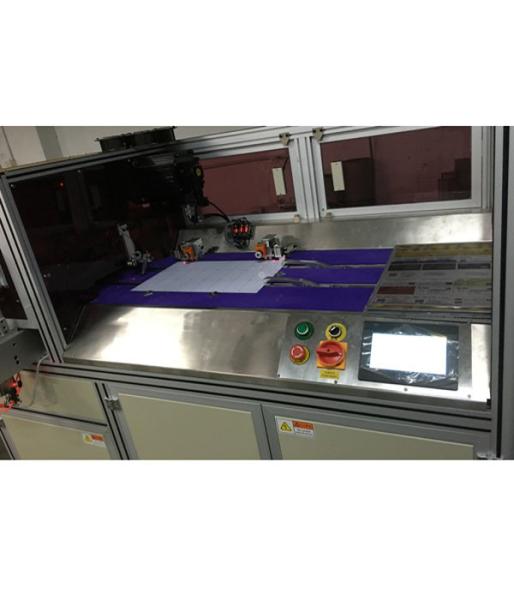

Sequential Number Card Puncher YLP-SN is specially designed for cutting the printed big sheets (such as 3*8, 4*8 or 5*5 layout) into the standard CR80 cards in a sequential and precise way.

Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

2. Features of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

1. High sensitivity optical fiber sensor is used to support the imported servo feeding system to ensure higher punch precision. The punching space position is adjustable by touch screen.

2. The durable servo motor system is applied to work as the punching power, which has lower noise, failure ratio and more reliable operation.

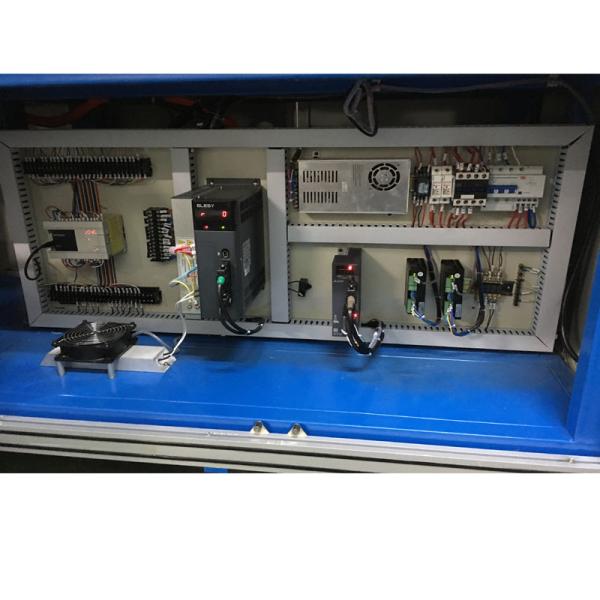

3. The machine is controlled with PLC system. It can punch automatically after the big sheet is manually loaded.]

Sequential Number Plastic Card Puncher is also known or named as Sequential Number Card Punching Machine, Card Die Cutter or Card Die Cutting Machine.

Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

3. Technical Parameter of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

Power Supply: AC 380V/50 HZ

Material: Various plastic sheets including PVC, ABS, PETG, etc.

Total Power: 3.5KW

Material Size: 3X8, 4X8 or 5X8

Air Source: 6 kg/c㎡(Dry)

Speed: 9000~12000 pcs /hr

Air Consumption: 70L/min

Control Method: PLC programming+ servo system

Weight: around 800Kg

Operator: 1 person

Precision: ±0.10mm

Dimension: L1700×W830×H1520mm

Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

4. Application of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

Free Spare part list of Sequential Number Card Puncher For CR 80 PVC Card punching
(No.) (Name) (Specification) (Quantity) (Remark)
1 Electromagnetic Valve 4V110 1PCS
2 Relay 14PIN DC24V MY4N-J DC 24V 3PCS
3 Fuse 10A 5PCS
4 Fuse holder RT18-32 1pcs
5 synchronous belt 10*200XL 1pcs
6 Internal Hexagonal screw driver   1 set
7 operating manua   1 set

The machine applies the powerful servo motor system as the punching power to ensure more reliable and easy punching. Professional card collecting structure is used to collect serial number cards or standard cards into one card magazine.
