High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
Specifications
Brand Name :
YL
Model Number :
YLRP-2000
Place of Origin :
China
MOQ :
3sets
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2 sets per month
Delivery Time :
about 45-50days after receiving the prepayment
Packaging Details :
in export plywood case for sea or air shipment
Material specification: :
Width 300mm roll
Working speed of antenna machine :
400-500pcs per hour
Working speed ofchip lamination machine :
1500-2000pcs per hour
Workding speed of cutting machine :
800-1000pcs per hour
Control mode of antenna machine: :
Industrial computer+PLC
Control mode of chip lamination machine: :
Industrial computer+PLC+CCD vision
Control mode of cutting machine: :
Industrial computer+PLC+CCD vision
Staff needed: :
totally 3 persons
Description

Automatic RFID Laundry Tag Production Line YLRP-2000



1.Introduction of Automatic RFID Laundry Tag Production Line YLRP-2000


Full Auto RFID Laundry Tag Production Line YLRP-2000 consists of three different machines including Laundry Tag Antenna Embedding Machine (4 sets), Laundry Tag Chip Implanting and Laminating Machine (1 set) and Laundry Tag Cutting and Quality Checking Machine (2 sets).


2.Features of Automatic RFID Laundry Tag Production Line YLRP-2000


It features higher production speed with more reliable performance. The designed production speed for one production line is in the range of 1600-2000 tags per hour.

This tag production line has higher the performance/price ratio with better technical support service after site installation.


3.Technical sheet of Automatic RFID Laundry Tag Production Line YLRP-2000

Tag Antenna Embedding Machine

Tag Chip Implanting and Laminating Machine

Tag Cutting and Quality Checking Machine

Technical parameters

Size:

L2000mm*W1100mm *H1300mm　

Size:

L4300mm*W1100mm *H1600mm　

Size:

L2000mm*W1700mm *H1700mm　

Power supply:

AC220V 50/60 Hz

Power supply:

AC220V 50/60 Hz

Power supply:

AC220V 50/60 Hz

Control mode:

Industrial computer+PLC

Control mode:

Industrial computer+PLC+CCD vision

Control mode:

Industrial computer+PLC+CCD vision

Material specification: Width 300mm roll

Material specification: Width 300mm roll

Material specification: Width 300mm roll

Working speed: 400-500 pieces/hour

Working speed: 1500-2000 pieces/hour

Working speed: 800-1000 pieces/hour

Staff needed: 1 person

Staff needed: 1 person

Staff needed: 1 person

/

Pressing mode:

hot pressing+cold pressing

Cutting mode:

CCD visual laser cutting

weight:around 200Kg

weight:around 400Kg

weight:around 230Kg

Function introduction

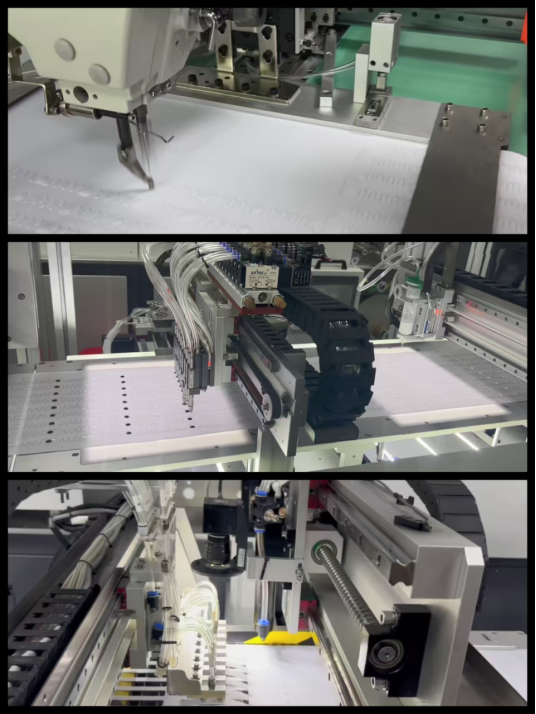

Draw the antenna shaped path through CNC software, and the device implants the antenna into a special cloth with hot melt adhesive according to the drawn path.

Using special fabric with implanted antennas as raw materials, precise dispensing and chip placement are carried out through CCD vision, followed by hot pressing and cold pressing to produce roll shaped tags.

Roll shaped tags are cut off one by one by using CCD visual laser unit, and then transported by a robotic arm for chip performance inspection. The tested single tags are placed in different collection boxes.

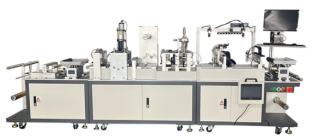

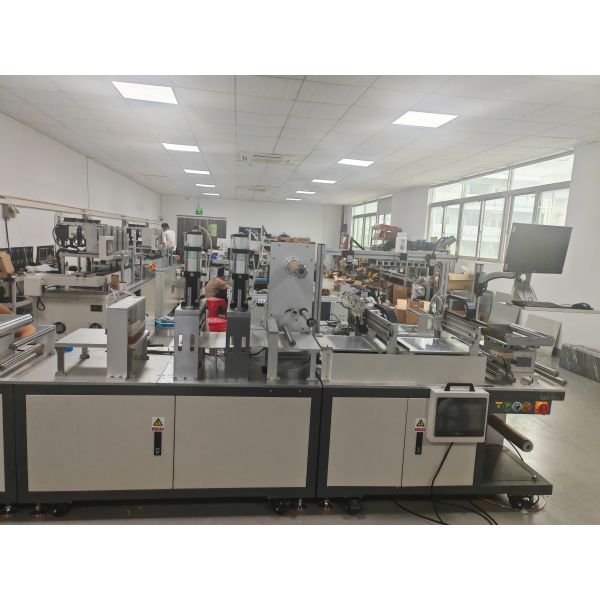

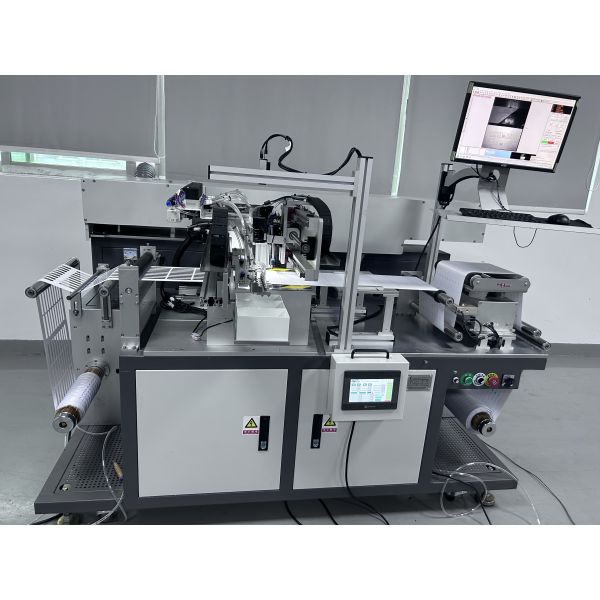

Machine photos

High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000

High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000

High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000

Tag production process flow:

Feeding with hot-melt adhesive tape roll - Antenna implantation machine implants antennas according to the set antenna shape - CCD visual glue dispensing - Chip placement - Hot pressing - Cold pressing & curing - CCD single tag laser cutting - Tag performance testing - Finished product collection

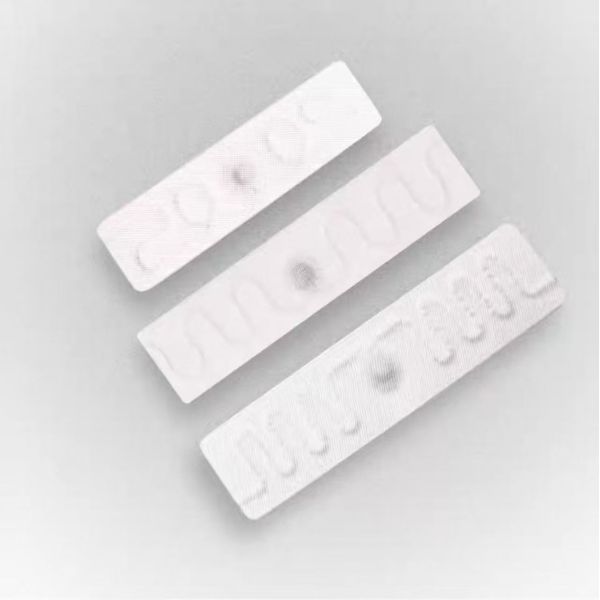

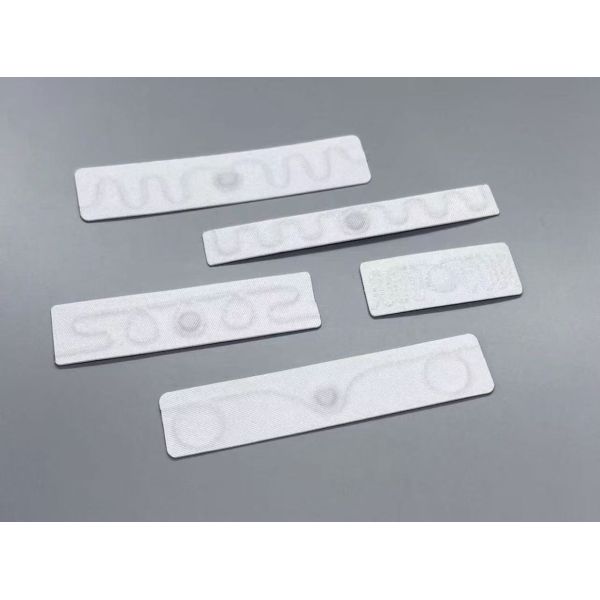

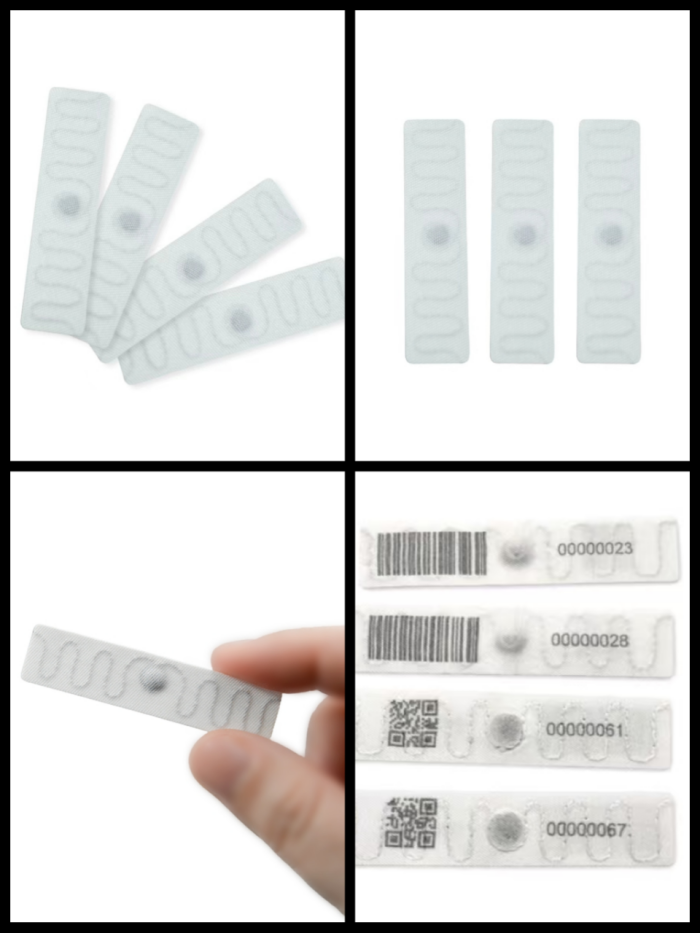

4.Product which is produced by Automatic RFID Laundry Tag Production Line YLRP-2000


High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000

High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000


High Performance Automatic RFID Textile Laundry Tag Production Line YLRP-2000
