Specifications
Brand Name :
AODONG
Model Number :
AODONG-19
Certification :
ISO 9001
Place of Origin :
CN
MOQ :
2 sets
Price :
2000-3000 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
35 days
Packaging Details :
woods
Automatic grade :
Automatic,Semi-Automatic,manual
Driven type :
Electric
After-sales service provided :
Video technical support
Type :
Laminating Machine,high speed semi-automatic flute laminating machine,laminating machine and flip flop machine
Application :
Machinery & Hardware,Commodity,Medical
Voltage :
220/380V
Packaging material :
Plastic
Packaging type :
Film
Product name :
semi automatic flute laminating machine,Flute Corruagated Cardboard Laminating Machine,YFMZ1100 Automatic Thermal Film Laminating Machine
Speed :
120-130m/min
Color :
Customer's Request,Picture color can also make according to your requirement,Everything can be quipped according to users's needs
Name :
flute laminating machine,flute corrugated board paper laminating machine / laminator machine,Audley packaging machine semi automatic flute laminating machine,Automatic Flute Carton Board Laminate Machine with Auto Delivery,Hot sale semi auto flute laminati
Function :
For cutting cardboard,Gluing Corrugated Carton Board
Description

Corrugated Cardboard Flute Lamination Machine Carton Box Laminating Machine Paperboard

Parameters:

Model ZGFM-1450 ZGFM-1650
Max size 1450*1450mm 1650*1650mm
Min size 450*450mm 450*450mm
Applicable paper 150-800g/m2 150-800g/m2
Bottom paper A-F corrugated board, ≤10mm A-F corrugated board, ≤10mm
Speed 150m/min 150m/min
Sticker accuracy ±1.5mm ±1.5mm
Power 33Kw 38kw
Machine dimension 22500*2200*2850mm 22500*2300*2850mm

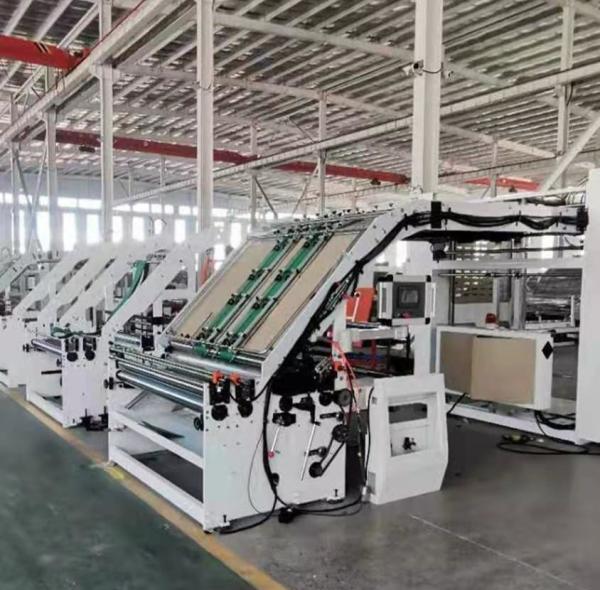

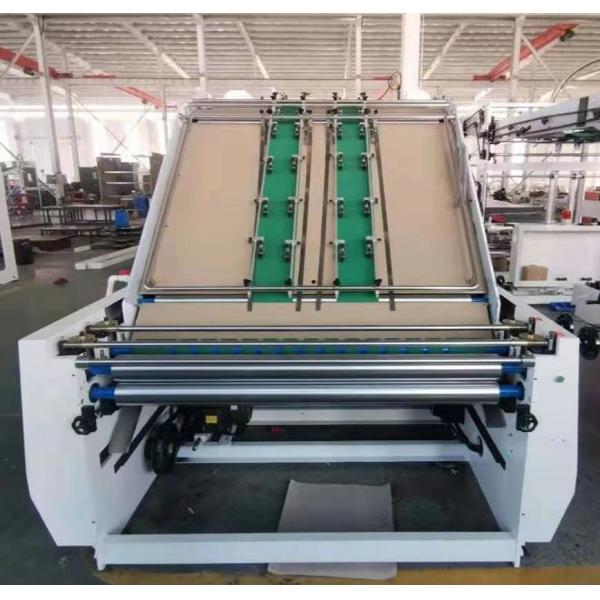

The production line consists of a flute laminating machine and a fully automatic pile turning machine. The high speed flute laminating machine is suitable for the stick of paper and corrugated board. The motion control system is perfectly integrated with the servo correction system. Using the relative position of multiple sets of photoelectric induction paper, the servo motor on both sides of the control paper is independently compensated, and the position of the bottom paper is tracked by the paper. Make the paper and the bottom paper accurately positioned. The machine is easy to operate and simply input the size of the paper, the machine will be adjusted by itself.

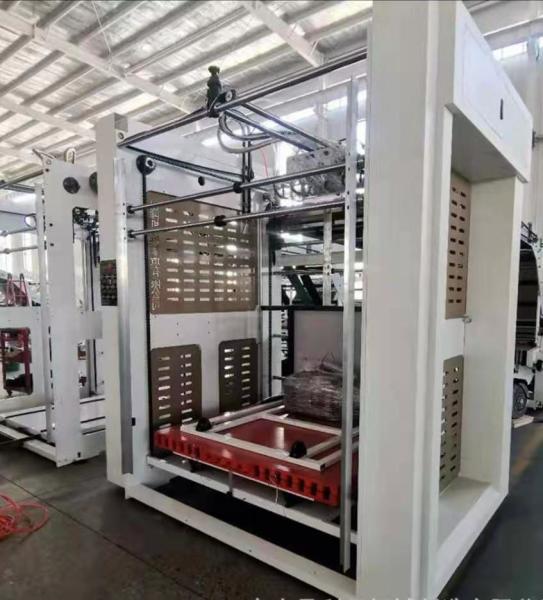

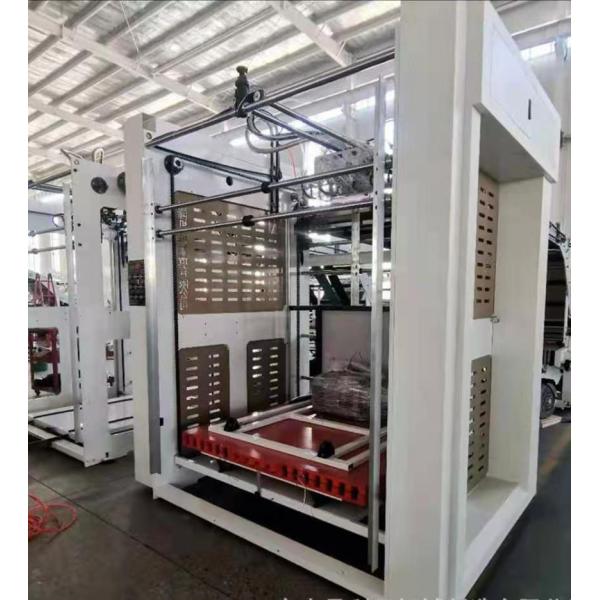

The fully automatic turning machine can complete the paper stacking, saving manpower and space, and solving the problem of bending deformation after the paper is attached.
