Heat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 Standard
Heat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 Standard
Heat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 Standard
Heat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 Standard
Heat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 Standard
Heat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 Standard
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Grade :
C10100, C10200, C12000, C28000,C44300, C70600, C71500...
Standard :
SB111, SB165, etc
Wall Thickness :
0.7-12.7mm
Outer Diameter :
6-219.1mm
Application :
heat exchanger, boiler, superheater, etc.
package :
In plywood case, steel framed case or according to clients
Description

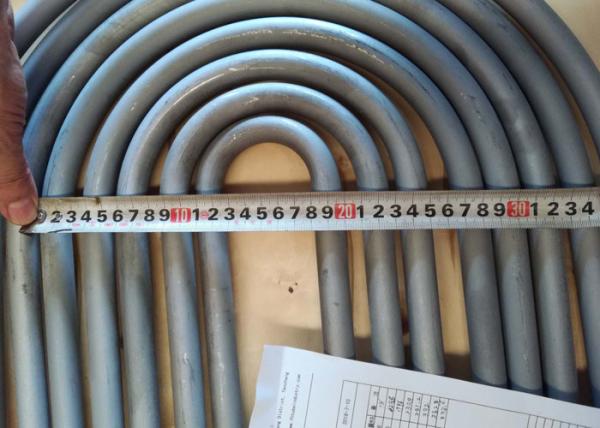

C71500 copper nickel pipe U tube

Material:copper

Components: brass 66.5% ,other 33.5%

Fins or threads: n/a

Usage:heat exchanger

Grade:C71500

Size: 19.05x1.25x8000mm

Application of copper pipes

Characterisized by lighter weight, good thermal conductivity, high strength at low temperature, the copper pipes are often used in the manufacture of heat exchange equipment (such as condenser, etc.). The copper pipes are also used in the oxygen generating equipment assembly line at low temperature. Small diameter of copper tube is often used for conveying liquid pressure (such as lubrication system, hydraulic system, etc.) and is used as the instrument of piezometric tube, etc.

Features of copper pipes
Hard
corrosiion resistant
high temperature resistant
high pressure resistant
wide application
Name seamless copper (nickel) pipe
Standard ASME SB165, SB111, etc.
Material C10100, C10200, C12000, C28000, C12200, C44300(brass alloys), C70600(90-10), C68700(CZ110 Aluminium barss alloy), C71500(70-30), C71640(66-30-2-2),etc.
OD 6-219.1mm
WT 0.7-12.7mm
Length 0-38000mm
Surface treatment solution annealing/Light Draw/Stress Relieving Heat Treatment
Test requirement 1.100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS 100% PMI
2.100% DIMENSION TESTS & 100% VISUAL EXAMINATION
3.TENSION TEST, FLARING TESTS(FOR SEAMLESS TUBE/PIPE)/FLANGE TESTS(FOR WELDED TUBE/PIPE), HARDNESS TEST, REVERSED FLATTENING TEST
4.100% HYDROSTATIC TEST/100% NON-DESTRUCTIVE TESTS
NOTES : ALL THE TESTS AND INSPECTION NEED TO PROVIDE WITH REPORTS ACCORDING TO STANDARD AND TEST RESULTS.
OPTION TEST & INSPECTION ITEMS:
1.STRAIGHTNESS TEST
2.ROUGHNESS TEST
3.CRYSTALLING PHASE ANALYSIS
4.INTERGRANULAR ATTACK TESTS
5.SHIPPING NOTIFICATION BEFORE SHIPMENT
6 .IMPACT ATTACK TEST UNDER LOW TEMPERATURE.
THE DOCUMENT LSI WILL PROVIDE YOU:
a. MTC (MATERIAL TEST CERTIFICATION) ACCORDING TO EN10204/3.1 OR EN10204/3.2;
b.RAW MATERIAL CERTIFICATION
c.ALL THE TEST & INSPECTION REPORTS AS PER PO AND STANDARDS
d.HEAT TREATMENT REPORT
e.SHIPPING NOTIFICATION BEFORE SHIPMENT
f.QUALITY WARRANTY LETTER.
Package In bundles, plywood cases, wooden cases with water-proof package, etc.
Product processing Cold drawn, cold rolled
Product origin Jiangsu, China(main land).
Ends PE, BE.
Trade terms FOB, CIF, CFR, DDP, EXW, etc.
Delivery Container, LCL, consignment.
Heat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 StandardHeat Exchanger C71500 Copper Nickel Pipe U Bend Pipe SB111 / SB165 Standard
