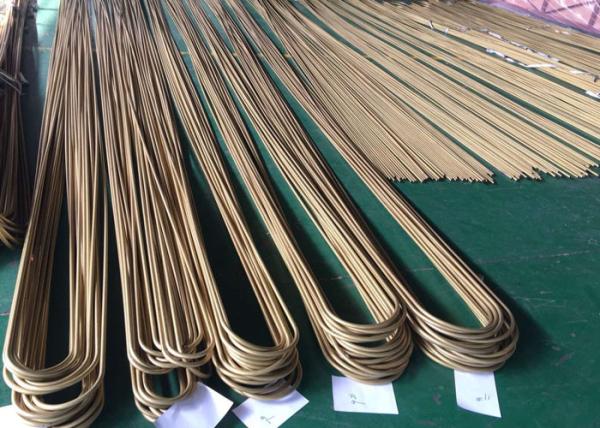

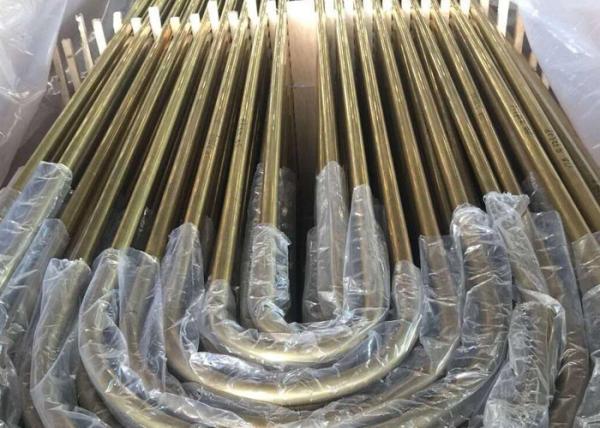

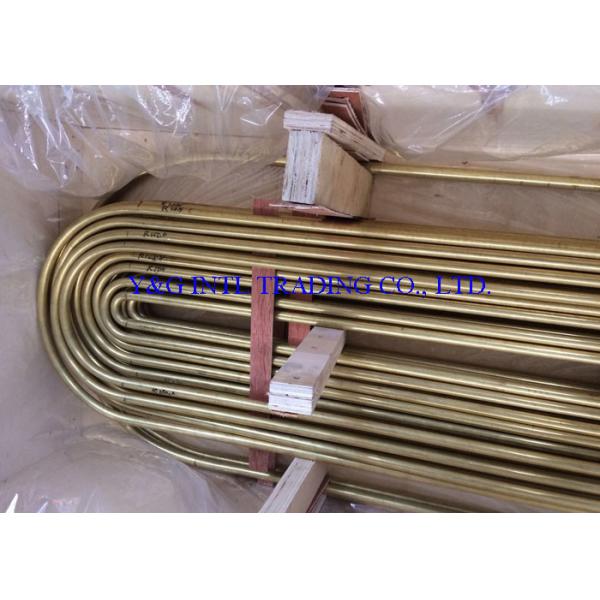

Seamless Copper OD 25.4mm 19.05mm U Bend Tube
Seamless Copper OD 25.4mm 19.05mm U Bend Tube
Seamless Copper OD 25.4mm 19.05mm U Bend Tube
Seamless Copper OD 25.4mm 19.05mm U Bend Tube
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Material :
C71500, C68700
Standard :
ASTM B111
Application :
Pressure and Heat Transmission
OD :
25.4- 273 mm
Thickness :
0.5m-40mm
Packing :
Standard Sea-worthy Packing
Description

Seamless Copper U Tube Heat Exchanger Tube OD25.4mm 19.05mm

U Bending Tube

As the both ends fixed on the same tube sheet, the shell and the tube are separated so the U-type heat exchange can not thermal expanse, and the tube bundle can free stretch out and draw back, and cannot produce temperature stress due to the fluid temperature difference. The U-shaped bend is adopting hydraulic drive, bend, PLC control and pipe clamp to complete automatically. The synchronization of the cantilever and elbow movement , effectively prevents pipe sag in the bending process and adjusts speed in the process of operation. Using encoder positioning can ensure the Angle is precise, and can be set freely. In the process of running, it can not only display the movement, but also can display an error message, to help correct the operation and debug troubles, in order to ensure the safety of the operator and device and put an end to the hidden trouble of the production.

One Of Reference Drawing :

Testing Items:

1. Appearance Inspection;

2. Dimensional Inspection;

3. Chemical Composition Testing;

4. Mechanical Properties Testing;

5. PWHT (Solution Annealing) of U-Bend+300mm of straight length after Bending at about 680 C Holding time 5 to 7 Seconds.

6. 100% Hydrostatic test after Bending;

7. According to client’s requirement...

Chemical Composition & Mechanical Properties:

Standard Chemical Composition
Cn Sn Al As Ni Fe Mn Pb B P Si S C Zn Other
C70600 Rem 9.0-11.0 1.0-1.8 1.0 Max 0.05Max 1.0Max

Standard Chemical Composition
Cn Sn Al As Ni Fe Mn Pb B P Si S C Zn Other
C71500 Rem 29.0-33.0 0.4-1.0 1.0 Max 0.05Max 1.0Max
