Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :

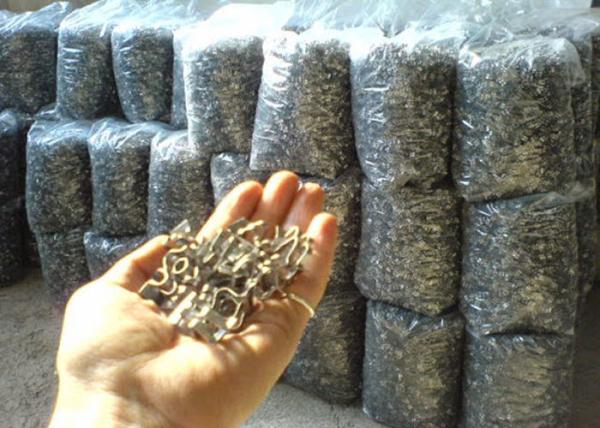

In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
CS, SS, Copper, Titanium
Diameter :
12~120mm
Thickness :
0.25~3mm
Bulk Weight :
250-496kg/m3
Life Span :
3 years
Application :
Industry,tower packing
Description

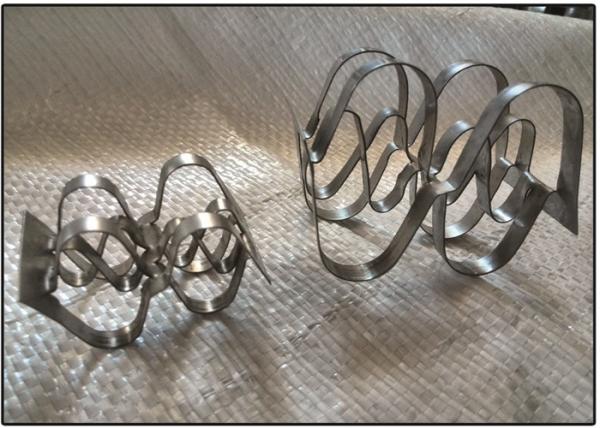

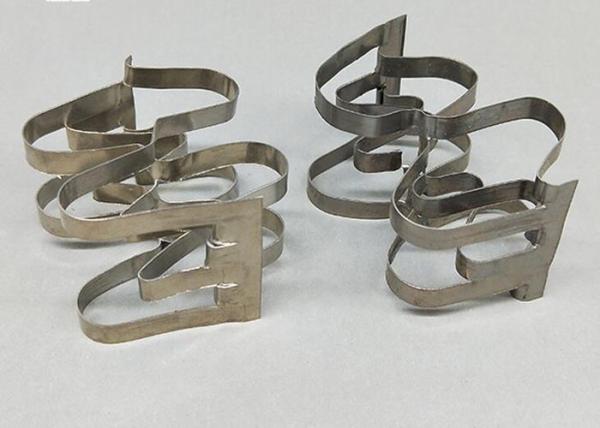

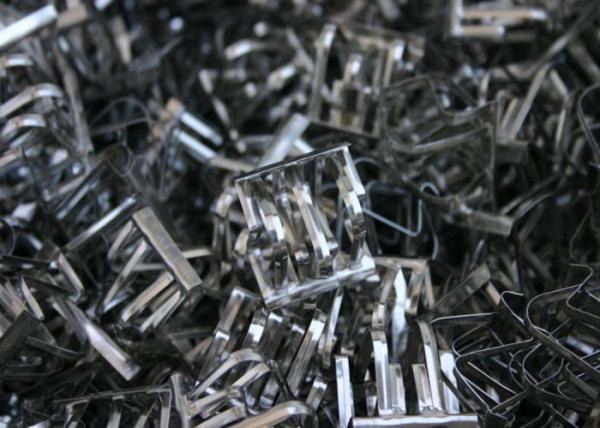

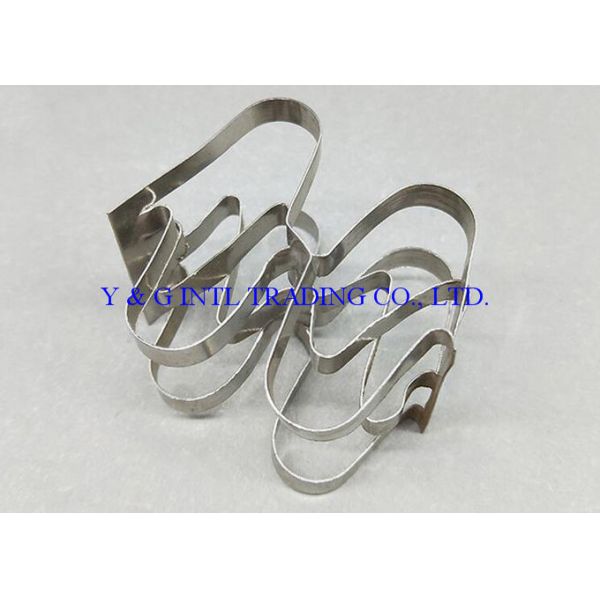

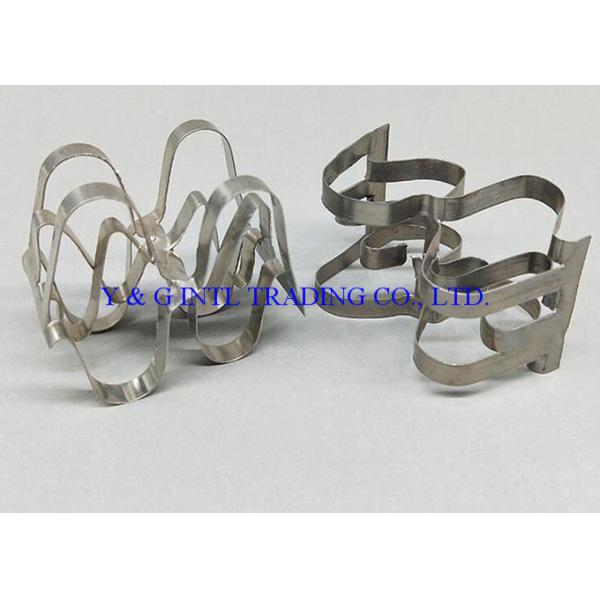

Super Metal Raschig Ring (Double metal conjugate ring)

Double metal conjugate ring is also called super metal Raschig ring, Raschig ring, the product compared with other traditional media has a load capacity of more than 33%, almost 67% for low pressure drop increase the separation efficiency of more than 12%. As a result of the energy and reduce the cost of investment. The product can be widely used as direct replacement Raschig ring packing.

Super metal Raschig ring has thin wall, heat resistance, large gap, high flux, low resistance, high separation efficiency. Especially in the vacuum distillation tower, temperature, easy decomposition, easily polymerized, carbon materials. Thus widely used in petrochemical, fertilizer, environmental protection and other industries in the packed tower.

Specification of Super Rasching Ring:

Mechanical Data of Various Metal Super Rasching Ring
Size(mm)

Number

Per M3

Surface

M2/M3

Free Volume

(%)
15 180000 315 96
20 145000 250 97
25 46500 180 98
30 32000 150 98
38 13750 120 98
50 9500 100 98
70 4300 80 98

Application: It is suitable for various separation, absorption and desorption devices, atmospheric and vacuum equipment, synthetic ammonia decarburization, desulfurization system, ethyl stupid separation, isooctane / clumsy separation and so on.

Super Metal Raschig Ring Double Metal Conjugate Ring With High Separation Efficiency

Super Metal Raschig Ring Double Metal Conjugate Ring With High Separation Efficiency
