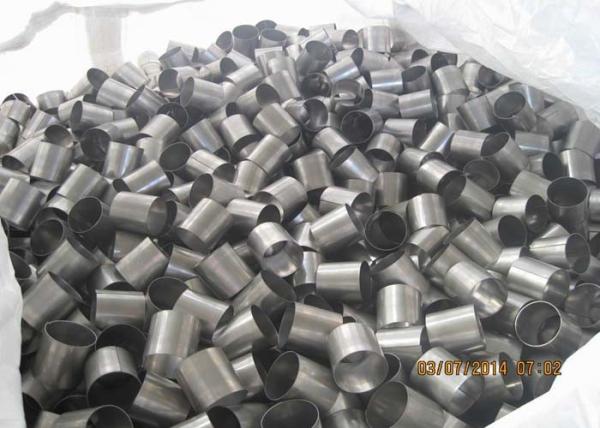

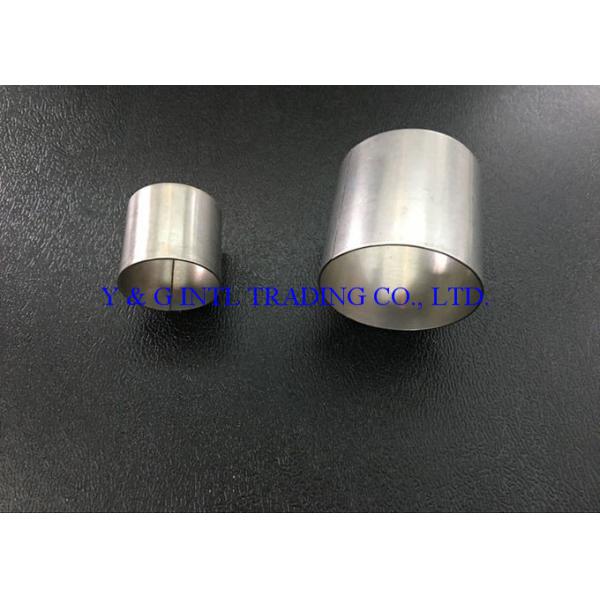

SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
SS304 Raschig Ring Metal Random Packing Anti Corrosion For Petrochemical Industry
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
CS，SS, Copper, Titanium
Diameter :
12~120mm
Thickness :
0.25~3mm
Bulk Weight :
250-496kg/m3
Life Span :
3 years
Application :
Industry,tower packing
Description

SS304 Metal Raschig Ring Packing Anti Corrosion For Petrochemical Industry

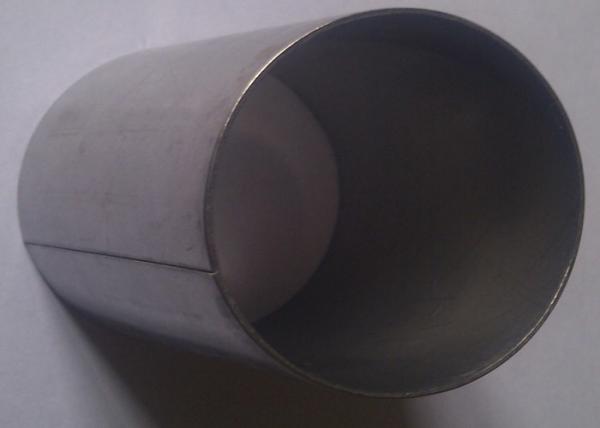

Raschig Ring was developed by F. Rasching in 1914. It is the first invented with a fixed geometry bulk packing. Its shape is simple, and the height is equal to the diameter of the diameter. Widely used in Adsorption, Steaming and Distilling performace, oil refinery, petrochemical industry, chemical industry and air pollution control etc., and also contracts anticorrosion engineering and environmental protection.

Specification of Raschig Ring:

Size

D x H x T

(mm)

Surface

(M2/M3)

Free Vol

(%)

Number

(Pc/m3)

Weight

(kg/m3)

Dry packing factor

(m-1)
16 16x16x0.4 338 0.94 216479 496 407
25 25x25x0.5 184 0.95 46262 355 215
38 38x38x0.6 128 0.96 14126 294 145
50 50x50x0.8 95 0.96 5933 296 107
76 76x76x1.0 66 0.97 1801 250 72
Application: It is suitable for various separation, absorption and desorption devices, atmospheric and vacuum equipment, synthetic ammonia decarburization, desulfurization system, ethyl stupid separation, isooctane / clumsy separation and so on.
