High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
High Capacity Metal Saddle Ring , Stainless Steel Packing With Great Separating
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
CS, SS, Copper, Titanium
Diameter :
12~120mm
Thickness :
0.25~3mm
Bulk Weight :
306-383kg/m3
Life Span :
3 years
Application :
Industry,tower packing
Description

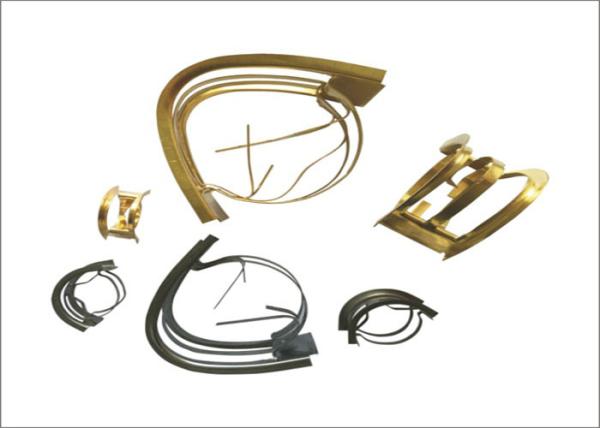

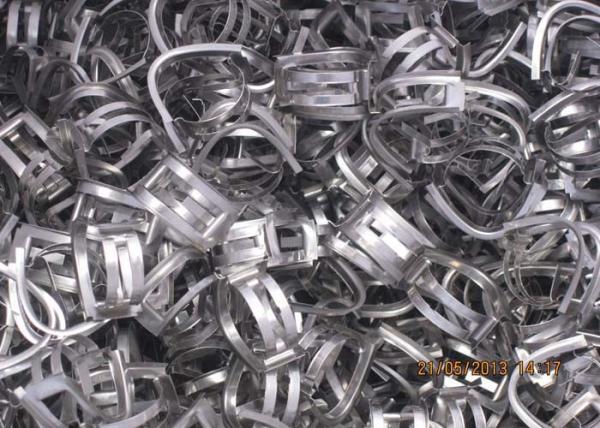

High Capacity Metal Intalox Saddle Ring Tower Packings With Great Separating

The rectangular saddle ring packing bed has a large gap, which is a circular arc liquid channel, which reduces the resistance of the gas through the bed layer, and also reduces the radial diffusion coefficient of liquid downward flow. The shape of the saddle ring is situated between the ring and saddle, so it has the advantage of both. This structure is beneficial to the distribution of liquid and the increase of the gas passage. Ceramic saddle ring because of its high density and excellent heat resistance and acid resistance, various inorganic acid, hydrofluoric acid can in addition to outside organic acid and organic solvent corrosion.

Specification of Intalox Saddle Rings:

Diameter

(mm)

D x H x T

(mm)

Surface

(M2/M3)

Free Vol

(%)

Number

Per M3

Weight

(Kgs/M3)

Dry packing factor

(m-1)
Φ 25 25x13x0.5 221 0.95 98120 383 257
Φ 38 38x19x0.6 153 0.96 30040 325 173
Φ 50 50x25x0.8 109 0.96 12340 308 123
Φ 76 76x38x1.0 75 0.96 3540 306 85

Advantages: low pressure drop and high efficiency; large effective interfacial area; high mechanical strength;low cost.
Application: Transfer towers both small and large diameter; Deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays; Distillation, absorption etc. High pressure towers.
