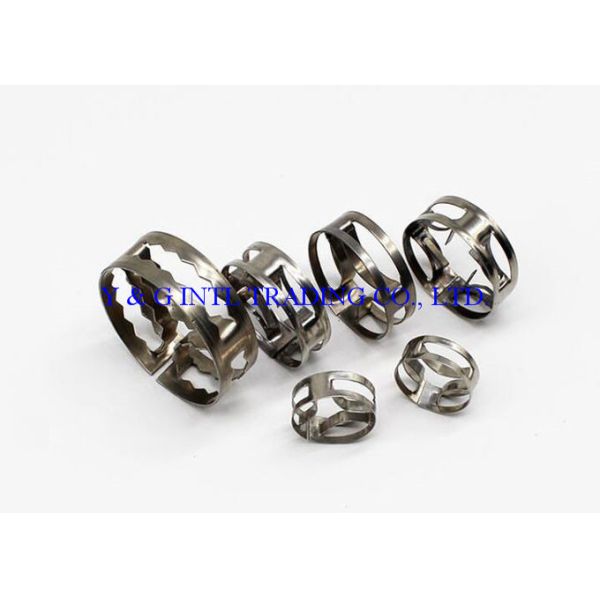

12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
CS, SS, Copper, Titanium
Diameter :
12~120mm
Thickness :
0.25~3mm
Bulk Weight :
364-604kg/m3
Life Span :
3 years
Application :
Industry,tower packing
Description

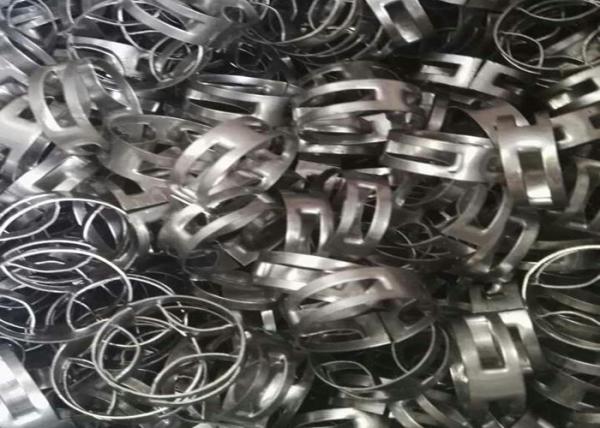

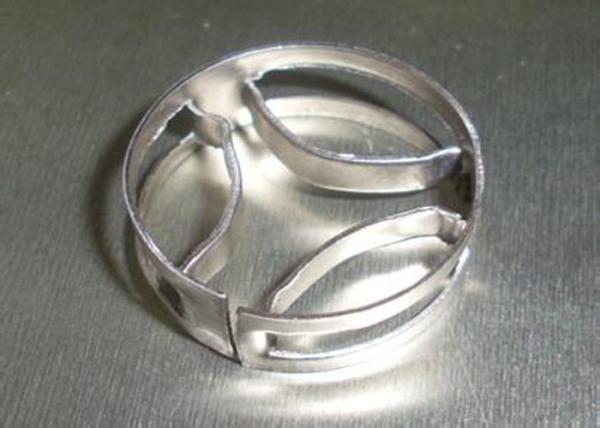

Normal Atmospheric Pressure Reduced Super Mini Rings Effective Cold And Heat Resistance

The height-to-diameter ratio of the Super Mini Rings without ladder central flanging is 0.2-0.4. The strength of the packing is improved by the inner arc ring which arrange orderly when randomly heaped. The Super Mini Rings are of reasonable great structure, low pressure drop, ameliorative processing capacity and excellent mass transfer performance.

Advantages of Super Mini Rings:

Large flux, low pressure drop, high mass transfer efficiency, large elasticity of operation, low pressure drop, great separating, effective cold and heat resistance, longer lifetime.

Specification of Super Mini Ring:

DIA

(mm)

D×H×T

(mm)

Surface Area

(m2/m3)

Void Rate

(%)

Number

Per M3

Weight

(Kg/M3)

Dry packing factor

(m-1)
16 16×5.5×0.5 348 92.3 630000 604 312
25 25×9.0×0.5 228 93.6 160000 506 280
38 38×13×0.7 150 95 48000 390 175
50 50×17×0.8 120 96.5 21500 275 156
75 75×25×2.5 70 97.5 5800 264 90.2

Applications:

various separation, absorption and desorption equipment, normal atmospheric pressure reduced and vacuum distillation plant and desulfuration systems, ethyl benzene separation, and Iso-octane/toluene systems.
