Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
8000mt per month
Delivery Time :
25~35days
Packaging Details :

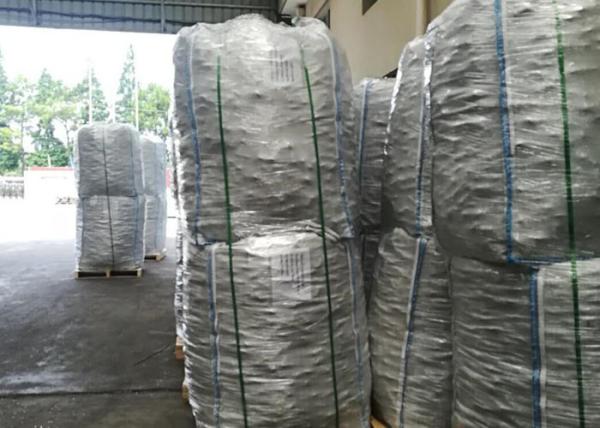

In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Materials :
CS, SS, Copper, Titanium
Diameter :
12~120mm
Thickness :
0.25~3mm
Bulk Weight :
280-420kg/m3
Life Span :
3 years
Application :
Industry,tower packing
Description

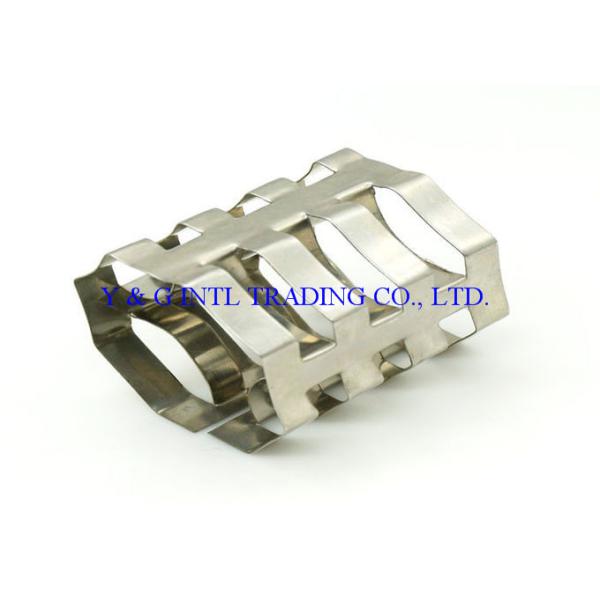

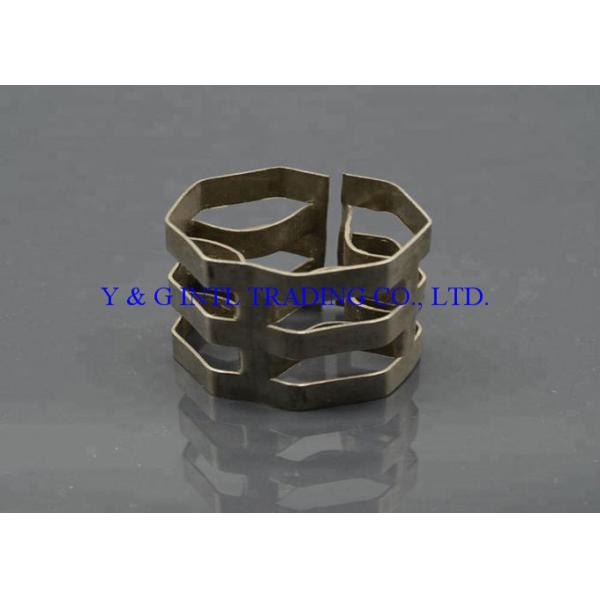

Good Structural Uniformity VSP Rings Non - Nesting Structure With High Extensive Point

VSP Rings have reasonable Geometric symmetry, good structural uniformity and High porosity. The surface of the packing tower is continuous and not disconnecting, evenly distributed in space. Compared with Pall Ring, its flux can increase 15-30 percent, and the pressure can reduce 20-30 percent.

During plant operation Metal VSP Rings create gas/liquid contact on easily wettable surfaces and promote the formation of droplets as the liquid cascades down the packed bed. This ensures good liquid mixing and consistent and uniform distribution. This open non-nesting structure creates high efficiency and a very low pressure drop.

Specification:

Diameter

(mm)

H x T

(mm)

Number

Per M3

Surface

(M2/M3)

Weight

(Kgs/M3)

Free Vol

(%)

Dry packing factor

(m-1)
Φ 25 25*0.5 59200 250 420 0.93 310
Φ 38 38*0.6 14000 138 296 0.947 163
Φ 50 50*0.8 7000 121 350 0.95 144
Φ 76 76*1.0 1950 75 280 0.95 86

Applications: various separation,absorption and desorption equipment,normal atmospheric pressure reduced and vacuum distillation plant,decarburateing and desulfuration systems,ethyl benzene separation,and Iso-octane/toluene systems.

Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity

Non - Nesting Metal Random Packing VSP Rings With Good Structural Uniformity
