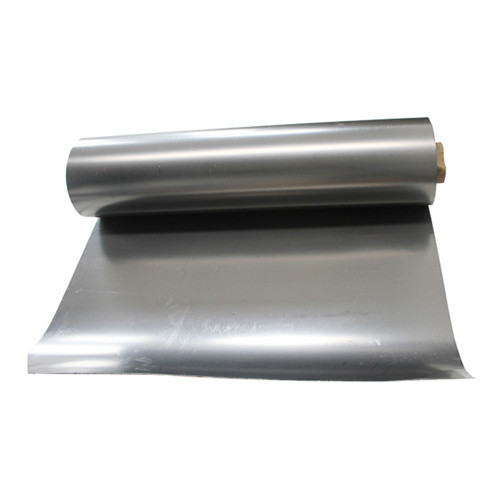

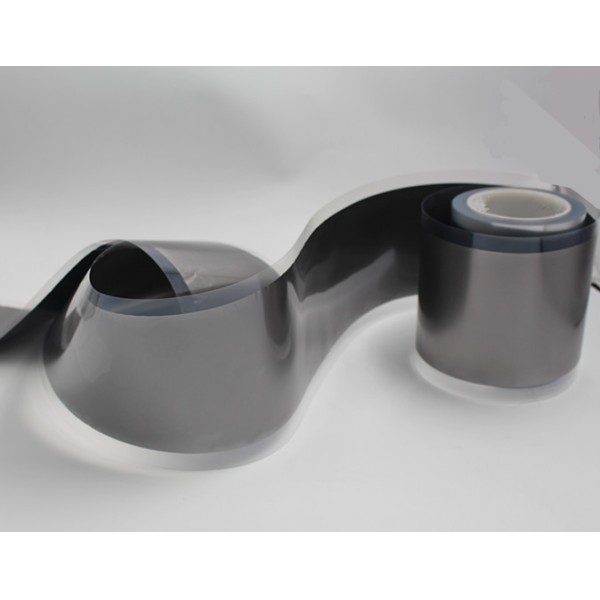

OEM Conductive Carbon Paper 40um Flexible Graphite Sheet
OEM Conductive Carbon Paper 40um Flexible Graphite Sheet
Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
Customized products without models
Certification :
ISO , CE
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Application :
mentally
C Content :
99.99
Size and Shape :
As your request
Custom Design :
OEM
Grade :
Industrial Grade
Type :
Reinforced Sheet
Description

40um conductive carbon paper flexible graphite sheet for smartphone cooling

99% carbon sealing graphite paper in roll

This is the parameter of the product that is 99% carbon sealing graphite paper in roll

Model No. Bulk Density Granularity/partical size Electrical Resistance Thermal Conductivity Thermal Expansion Coefficient(indoor-600oC) Shore Hardness
g/cm3 μm μΩm W/m.k 10-6/oC HSD
WX-4 1.75 12-15 8.5 121.1 5.46 42
WX-5 1.85 12-15 8.5 139.2 4.75 48
H-5 1.68 12-15 13 139.5 4.9 49
F-5 1.75 12-15 9-10 140 4.9 56
WXH-6 1.90 10-12 8-9 140 5.1 53
WXW-6 1.91 8-10 8-9 140 5.1 53
WX-7 1.85 8-10 11-13 85 5.6 65
WX-8 1.91 8-10 11-13 85 5.85 70
1.72 800 8.5 120 <2.4
1.75 800 8 140 2.4

Features of synthetic graphite sheet:

* Excellent thermal conductivity: up to 1950 W/m•K (2 to 5 times as high as copper, 3 to 8 time as high as aluminum)
* Lightweight: Specific gravity: 1.9 to 2.1 g/cm3
* Flexible and easy to be cut. (Withstands repeated bending)
* Low thermal resistance
* Low heat resistance with the flexible graphite sheet
* Low repulsion an
