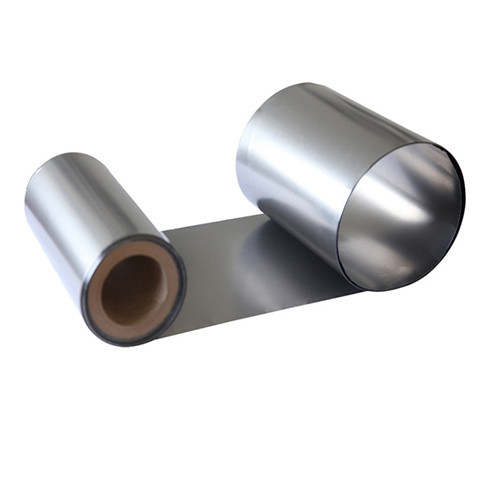

Heat Spreader 12um Carbon Graphite Paper High Electric Conductivity
Heat Spreader 12um Carbon Graphite Paper High Electric Conductivity
Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
Customized products without models
Certification :
ISO , CE
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Application :
Heat dissipation
Grade :
Industrial Grade, Industrial Grade
C Content (%) :
99.99%
Material :
High pure graphite
Thickness :
12～200um
Thermal conductivity (X-Y-axis) :
1100~1900w/mk
Description

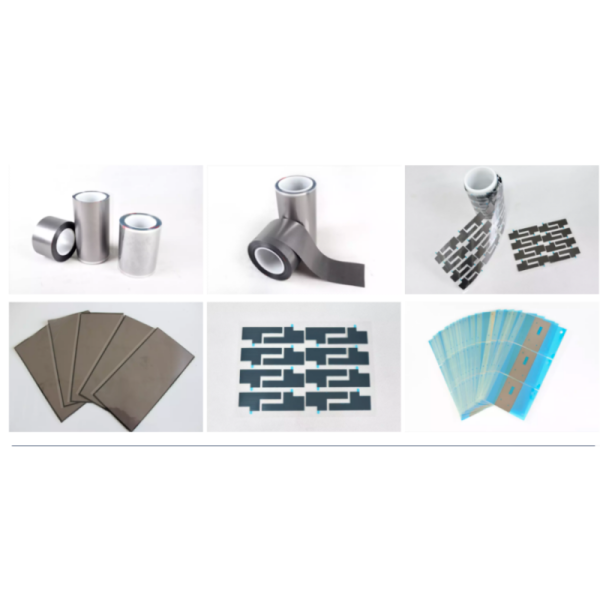

High electric conductivity pyrolytic carbon graphite heat spreader sheet paper with pet film

High electric conductivity pyrolytic carbon graphite heat spreader sheet paper with pet film
High electric conductivity graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide by sintering. Synthetic graphite sheet is available with an adhesive backing on one side, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.

Thickness12um17um25um32um40um50um70um100um
0.012±0.003mm0.017±0.003mm0.025±0.003mm0.032±0.004mm0.040±0.005mm0.050±0.005mm0.070±0.005mm0.100±0.008mm
X-Y axis (w/m.k)1800~19001500~17001400~16001300~15001200~14001100~13001100~1300

X-Y Ax. (w/m.k)
630~780

Z axis (w/m.k)10~1515~1816~1917~2018~2018~2118~21

In-plane Thermal Diffusivity
(mm²/s)

980~1040840~950800~920800~920760~890740~870700~830600~750
Density(g/cm3)2.1±0.052.05±0.052.00±0.051.85±0.051.80±0.051.70±0.051.8±0.051.2±0.05

Heat capacity
(J/g/K )

0.870±0.010.870±0.010.870±0.010.870±0.010.870±0.010.870±0.010.870±0.010.870±0.01
Operation temperature(℃)-40~400-40~400-40~400-40~400-40~400-40~400-40~400-40~400

Bending
(angle180, R5)

2000020000200002000020000200002000020000
