Linear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging Line
Linear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging Line
Linear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging Line
Linear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging Line
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NLM
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Automatic Grade :
Full Automatic
Condition :
New
Driven Type :
Electric
Type :
Labeling Machine
Application :
Food,Beverage
After-sales Service Provided :
Online Support,Engineers Available To Service Machinery
Description

Linear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging Line

General description:
BOPP labeling machineis widely suitable for different material of container and label. The label cost is comparatiely lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

Technical parameters:

Power supply Three-phase 380V 50 Hz 4KW
The total length of equipment 3615mm (conveyor length can be regulate base on your product lines)
Equipment width 2031mm
Conveyor speed 30m/min (the speed of the transmission lines can be adjusted according to actual production)
The method of speed adjustment uninterrupted - adjust rate
The largest Speed of labels feed maximum speed of 90 meters labels / min
The largest speed of labeling 12000~13000BPH (EP-0412R)
Labeling accuracy ± 1mm
Integrated Labeling accuracy ± 1mm
Product Size: base on client supply container 2L Φ 100mm
Maximum label width 135mm
The maximum length of label 500mm
The maximum diameter of label 600mm
Paper core diameter 152 mm
Labeling glue leading and trailing edge gluing with hot melt
Gluing temperature 120~160C
Type of label opp label, paper-plastic composite film label, paper label
Labeling workstation 12 per cycle
The quantity of labeling mold one suit (to be satisfied with one product, each mold contains infeed worm ,infeed starwheel ,discharge starwheel, position bottle and so on )
Machine weight 2600 Kg

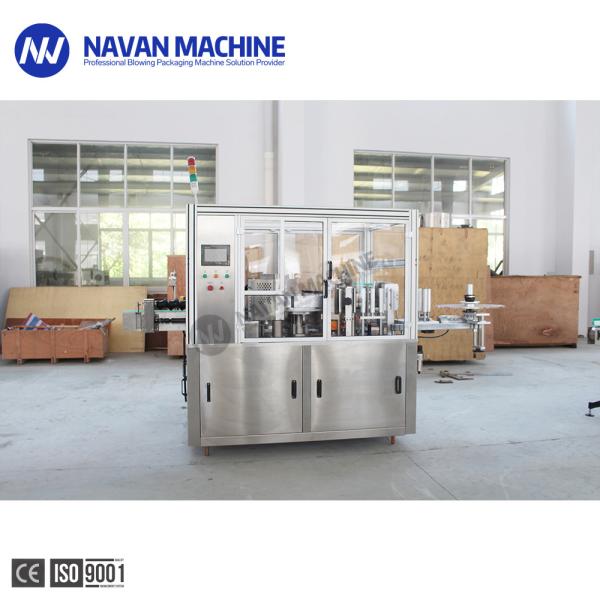

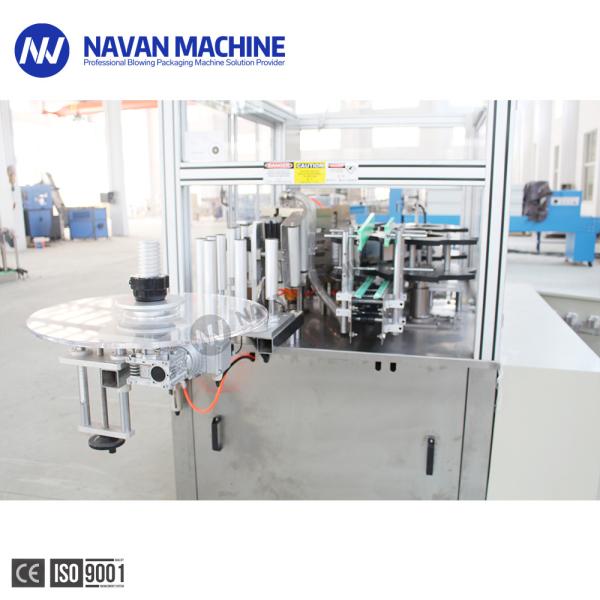

Detailed Images:

Linear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging LineLinear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging LineLinear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging Line
