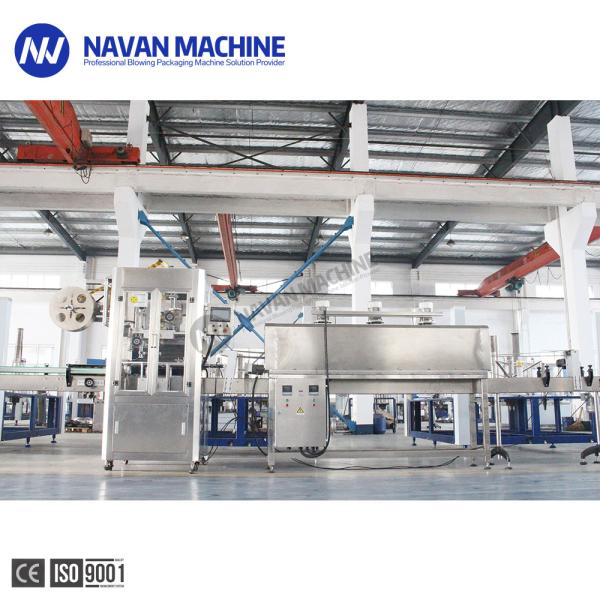

PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel
PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel
PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel
PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NLM
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
13,500USD
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Input Voltage :
3-phase, 380V/220V AC
Applicable Bottle Diameter :
28mm~120mm
Applicable Label Length :
30mm~250mm
Applicable Label Thickness :
0.03mm~0.13mm
Applicable Paper Tube inner Diameter :
5”~10”Freely Adjustable
Input Power :
1.5/3.3KW
Productivity :
150/250 bottles/min
Host Size :
2100L*850W*2000H /2100L*1100W*2000H
Description

PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel

1.Suitable for various bottle types of juice, tea beverage, dairy products, purified water, condiments, beer, sports drinks and other food and beverage industries. Not only does the sleeve label position have high accuracy, but it also highlights the bottle shape after shrinking.
2. Highly stable mechanical structure: The whole machine adopts stainless steel protective frame cover and aluminum alloy rigid frame, which is stable and does not rust.
3. Flexible choice of multiple bottle types: round bottles, square bottles, oval bottles, etc. can be set, and the mouth or body of the bottle can also be selected.
4. Unique synchronous cutter seat, within the specification range, no need to change the cutter seat. If you need to change the specifications, it can be completed quickly in 5 minutes.
5. Wide range of application: suitable for all kinds of plastic bottles, glass bottles, PVC, PET, PS, iron cans and other containers such as food, beverages, cleaning supplies, medicines, wine bottles, etc.
6. High-quality positioning accuracy: Fully mechanical transmission design, using forced sleeve labeling, all kinds of film materials above 0.030MM film thickness are applicable, the film material inner diameter can be adjusted in the range of 5-10.
7. Low maintenance cost of consumables: This machine adopts low-cost disposable blades, which are easy to replace and low cost burden.

Product Paramenters:

NLM-150
NLM-150
NLM-250
Input power
1.5KW
3.3KW
Input voltage
3-phase, 380V/220V AC
3-phase, 380V/220V AC
Productivity
150 bottles/min
250 bottles/min
Host size
2100L*850W*2000H
2100L*1100W*2000H
Applicable bottle diameter
28mm~120mm
28mm~120mm
Applicable label length
30mm~250mm
30mm~250mm
Applicable label thickness
0.03mm~0.13mm
0.03mm~0.13mm
Applicable paper tube inner diameter
5”~10” freely adjustable
5”~10” freely adjustable
Sleeve Labeling Machine - Main Machine.
Machine group: The whole machine adopts a stainless steel body to support the main machine and fix the conveyor belt.

Sleeve Labeling Machine - Shrinking Furnace.
Use electric heat or steam heat to shrink and evenly attach the label to the bottle.

PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel

Material rack group:

Save the time of changing materials, the discharge is fed by a set of conveying roller reduction motors.
PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel

Bottle-separating screw:
Separate the bottles to be set at equal intervals and enter the bottle group.

PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel

Cutter set:
It adopts an eccentric linkage mechanism and is driven by a stepping motor. There is no rotation under the induction of no incoming bottles, which increases the service life and safety. At the same time, its cutter adopts ordinary paper cutting blades to replace easily and economically.
Center column: The label film material is sleeved and opened, so that the film material can be conveyed and cut.

PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel

Brush set:
Use a strap or rubber band to drive the bottle label brush into position.
Brush-down group:
Using a synchronous adjustment mechanism, adjust the brush-down two sets of transfer wheels to slightly touch the rollers under the center column. When the label passes, the label is inserted into the bottle at a higher speed.

PVC Heat Shrink Sleeve Labeling Machine For Beverage Bottle With Shrink Tunnel

Main-machine interface:
The control center of this machine, each operation display page is divided into main table, manual, automatic, setting, monitoring, etc., and several auxiliary knobs and buttons are used to operate and control sleeve label operations.
