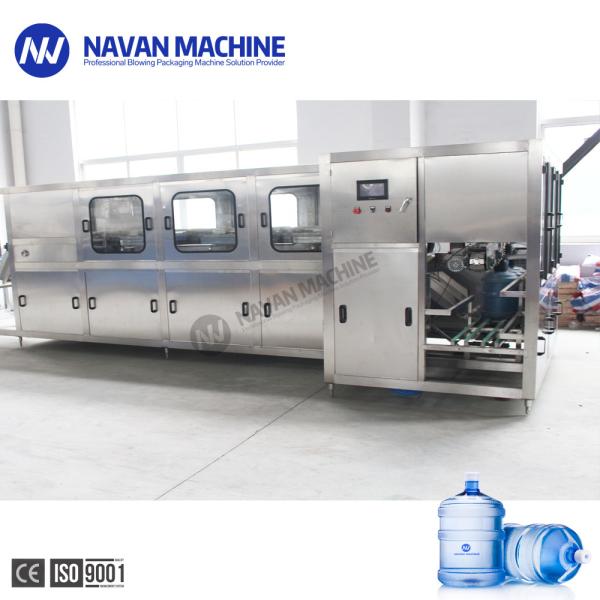

450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle
450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle
450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle
450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
QGF
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
450BPH@5Gallon
Suitable Bottle :
PET Bottle
Bottle Volume :
10-20L
Barrel Specification :
Ф270X490mm
Air Source Pressure :
0.4-06MPa
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

450BPH Water Barrel Filling Equipment for PET 5 Gallon Bottle

Description:

This type automatic inside and outside gallon bottle brusher is mainly used to brush the 3 or 5 gallong bottle barrels in gallon water filling machine line. It's for both inside and outsdie brushing of new PET bottle or recycled bottle.

It's automatic with speed adjustable to match the water filling line. This machine needs to be offered compressed air for brusher function.

It's set with outside machine frame to guarantee better space for whole effect.

Product Paramenters:

Model QGF-450
Production Capacity(B/H) 450
Filling heads 4
Machine type Linear type
Filling capacity(L) 10~20L
Barrel specification Ф270X490mm
Air source pressure(MPa) 0.4-06
Air consumption(m3/min) 0.6
Total Power(Kw) 6.2
Overall Dimensions(L×W×H)(mm) 3900×2050×1700
Total Weight(Kg) 2500

.

450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle

Outside Brusher Machine

450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle

Rinsing part

450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle

Bottle Filler

450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle

Bottle Capper

450BPH Water Barrel Filling Equipment For PET 5 Gallon Bottle

Water Filling Machine Automatic PET Bottled 5 Gallon Filing Capping Machine

3-5 Gallons Barreled Water Production Line

(1) QGF series automatic production line is specialized for production of 3-5 Gallon barrel

(2) The machine consists of washing, filling and sealing in one

(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of

washing sterilization.The disinfectant is recyclable

(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation

device to ensure the sanitation of cap

(5) Washing, disinfection, filling, gland, counting and discharging is automatic

(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure,

small occupation of land and high automation
