600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production
600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production
600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production
600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
QGF
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
600BPH@5Gallon
Suitable Bottle :
PET Bottle
Bottle Volume :
10-20L
Barrel Specification :
Ф270X490mm
Air Source Pressure :
0.4-06MPa
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

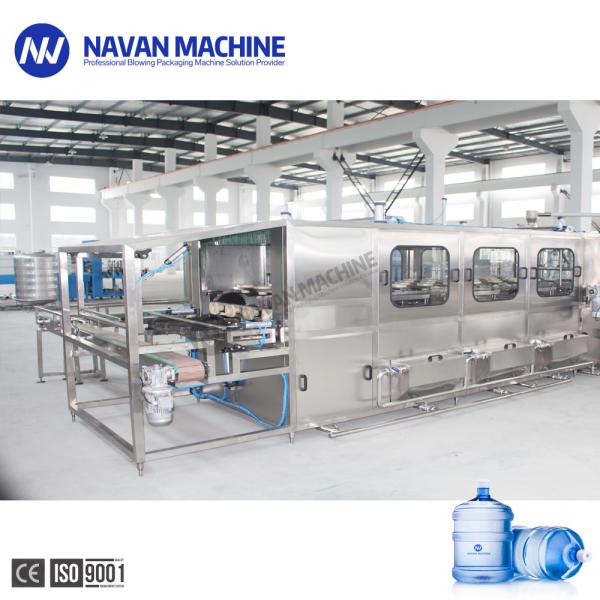

600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production

General introduction

The 5 gallon water filling machine specially for 3 - 5 gallon barreled drinking water ,It integrates bottle washing ,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,the washing machine uses multi washing liquid spray and thimerosal spray ,this thimerosal can be circularly ,the capping machine can cap barrel automaticlly ,this line equips with water spraying device in order to ensure those caps sterilie and clean ,it also can automatically carry out barrel ,washing ,sterilizing ,filling ,capping ,counting and products discharging ,with complete funciton ,modern design and high degree of automation .it is a new kind of barreled water auto production line ,which integrates mechanism ,electricity and pneumatics technologies together.

Product Paramenters:

Model QGF-600
Production Capacity(B/H) 600
Filling heads 4
Machine type Linear type
Filling capacity(L) 10~20L
Barrel specification Ф270X490mm
Air source pressure(MPa) 0.4-06
Air consumption(m3/min) 0.6
Total Power(Kw) 6.2
Overall Dimensions(L×W×H)(mm) 3900×2050×1700
Total Weight(Kg) 2500

Applications:

Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles.

600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production

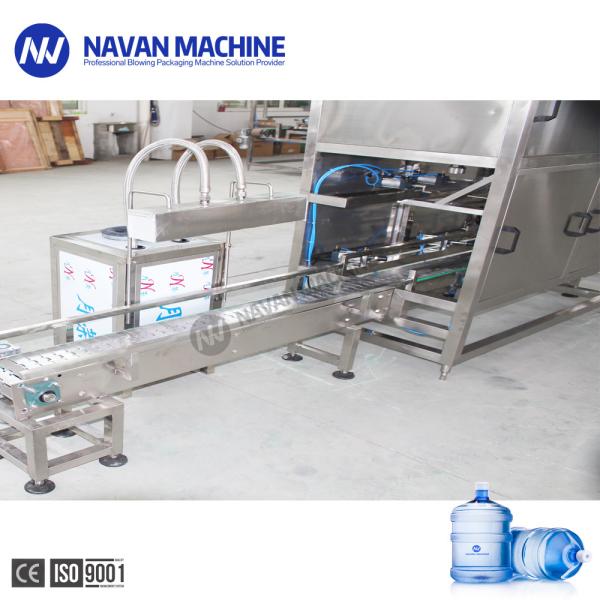

Outside Brusher Machine

Nylon brushes, long life service life

Energy saving

The material of machine frame and body: all 304 Stainless Steel

No bottles no washing

600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production

Rinsing part

12 steps washing procedure: 1. pre-washing, 2&3. alkali washing, 4.dropping 5&6 recycle water washing 7. dropping 8&9 disinfect water washing 10&11 finish water washing 12.dropping

>>All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

>>304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

>>304 stainless steel Rinsing pumps

>> All food grade SUS304/316 design

>> Effectively clean bottle and save water

>> Resting waiting for water drops

600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production

Bottle Filler

>>High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily

>>All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

>> Filling valve, guide rail, elevating device, etc.

>> Gravity filling type (No touch filling type)

>> Filling volume adjustable

>> All food grade SUS304/316 design, harmless for beverages and easy to clean

>>No bottle no filling

600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production

Bottle Capper

>>Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

>>All 304stainless steel construction

>> Cap unscrambler, cap drop rail and capper

>> Minimum bottle crash during capping

>> No bottle no capping

600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production
