Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine
Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine
Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine
Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NXGF
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
14,500USD
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
2500-19000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

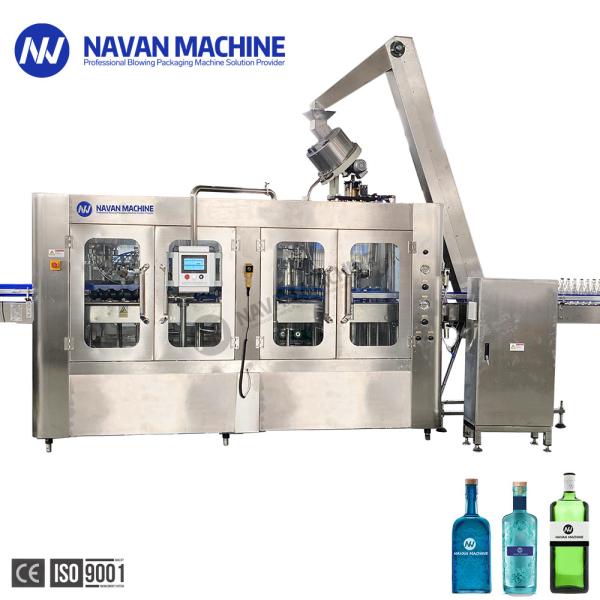

Automatic Glass Bottled Vodka Non-Carbonated Drink 3-In-1 Filling Machine

1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]

The machine for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated water and alcoholic drinks to be one of the advanced room filling production line.

The bottle enters into the filling part of three-in-one machine through screw rod by convey chain. The filling valve acted by the cam can realize up and down. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The guard plate holds bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through poking wheel.

Equipment Type Automatic
Bottle Type

Glass round or square bottle

Volume 200 - 2000ml

Bottle diameter 50-115mm

Bottle height 160-340mm
Output <bph> up to 20000 BPH
Your product wine fill/vodka fill/fruit wine and so on
Certificates CE / SGS / ISO 9001

Product Paramenters:

Main Technical parameters
Model

NXG

F14-12-6

NXGF

18-18-6

NXGF

24-24-8

NXGF

32-32-10

NXGF

40-40-12

NXGF

50-50-15
Produciton capacity(330ml) 2500-3000 4500-5000 8000-9000 12000-13000 14000-15000 18000-19000
Heads of Rinsing Filling & Capping 14-12-6 18-18-6 24-24-8 32-32-8 40-40-12 50-50-15
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Micro negative pressure filling / gravity filling
Filling temperature (℃) 0~30 or customzied
Filling pressure (MPa) 0.15~ 0.5
Main motor power(kw) 2.2 3 4 7.5 7.5 11
Total power(kw) 2.75 3.18 4.18 7.68 7.68 11.5
Overall dimensions (mm)

2700x150

0x2300

3012x201

2x3260

3280x242

0x3200

4430x288

0x3200

4650x320

0x3200

4987x3846

x3200
Weight(kg) 2800 3800 5000 6800 8800 11000

2 - Glass bottle Separating..

- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine

Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine

3 - Glass Bottle Washing.

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine

4 - Glass Bottle Filling

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump

- Efficient spray nozzle rinse thoroughly and save water for flushing

Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine

5-Capping Part

The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head

Automatic Glass Bottled Vodka Non Carbonated Drink 3 In 1 Filling Machine
