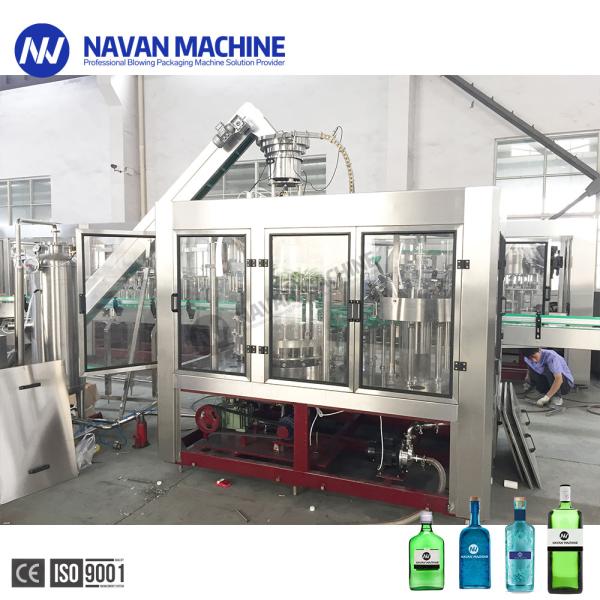

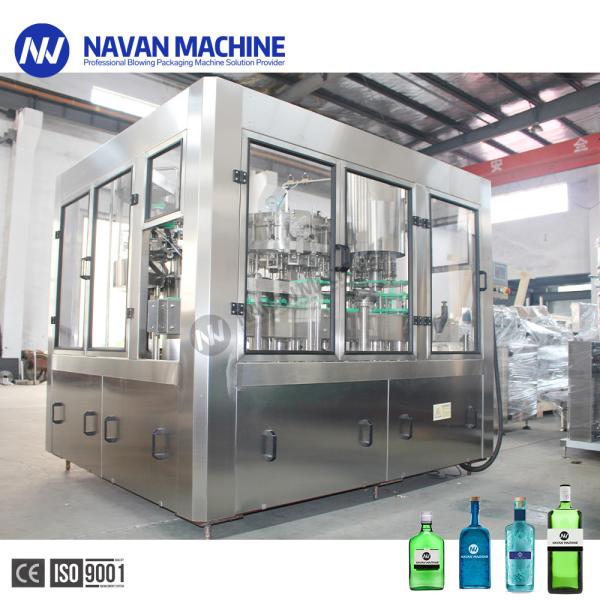

Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap
Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap
Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap
Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NPXGF18-18-6
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
3000-5000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

Glass Bottle Carbonated Drink Washing Filling Capping Machine With Aluminum Cap

It's used to filling gas-contained liquid in glass bottle - special plastic ring pull aluminum cap, with bottle washing, filling, sealing parts.Widely used in every beverage factory.


Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc

Main Technical parameters
Model NPXGF18-18-6
Produciton capacity(330ml) 3000-5000
Heads of Rinsing Filling & Capping 18-18-6
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Isobaric filling (twice vacuumized )
Filling temperature (℃) 0~5
Filling pressure(MPa) 0.15~ 0.5
Main motor power(kw) 3
Total power(kw) 3.18
Overall dimensions(mm) 3012x2012x3260
Weight(kg) 3800


Details of the Machine
- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap
- Glass Bottle Washing.

Spring cramps are used in the bottle washing process.

The empty bottles can be turned over 180~ along the conveying rail.

There are two times of internal and external washing, the efficiency of bottle washing is high.

Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap
- Glass Bottle Filling

The filling machine is designed with advanced technology.

The high quality of filling valve is adopted for filling the liquid, with fast filling speed,

High filling precision, stable filling function, long life span to guarantee the quality.

The amount of liquid is accurately controlled and the dropping and leakage are avoided.

Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap
-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
Glass Bottle Vodka Washing Filling Capping Machine With Aluminum Cap

Company Profile
Zhangjiagang Navan Industrial Co.,Ltd
Zhangjiagang Navan Industrial Co., Ltd. is a professional manufacturer of beverage machinery in China.
Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also alcoholic drink filling machine, 5 Gallon bottle filling production line, and all other auxiliary equipment.
Our engineers are located all over the world and can provide safe and fast service to your beverage production solutions in your country.
