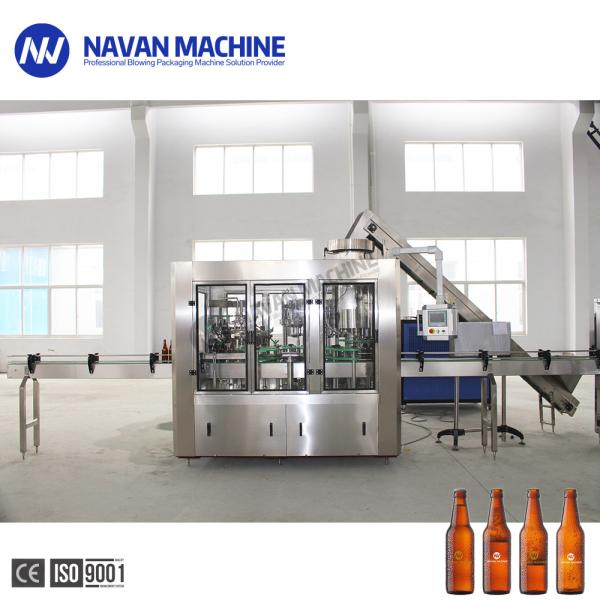

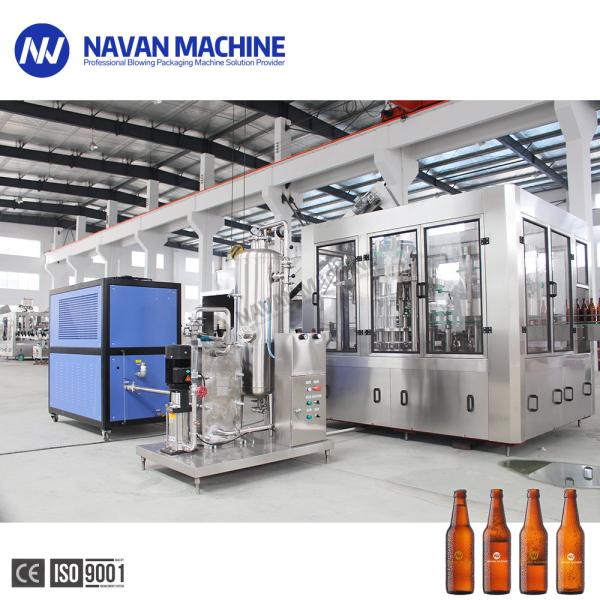

Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NPXGF18-18-6
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15-20 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
3000-5000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine

This machine adopts high precision filling valve, with the characteristics of no bottle no vacuum pumping.It can according to customer requirements to select different types of bottles.The liquid level height in the tanks is controlled by electric PLC program to assure the precise liquid level, it applicable to all kinds of soda water, beer, etc...


Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc

Main Technical parameters
Model NPXGF18-18-6
Produciton capacity(330ml) 3000-5000
Heads of Rinsing Filling & Capping 18-18-6
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Isobaric filling (twice vacuumized )
Filling temperature (℃) 0~5
Filling pressure(MPa) 0.15~ 0.5
Main motor power(kw) 3
Total power(kw) 3.18
Overall dimensions(mm) 3012x2012x3260
Weight(kg) 3800

Main Technical parameters
Model NPXGF14-12-5 NPXGF18-18-6 NPXGF24-24-8 NPXGF32-32-8 NPXGF40-40-10 NPXGF50-50-12
Produciton capacity(330ml) 1000-1500 3000-5000 6000-8000 8000-10000 12000-15000 15000-18000
Heads of Rinsing Filling & Capping 14-12-5 18-18-6 24-24-6 32-32-8 40-40-10 50-50-12
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Isobaric filling (twice vacuumized )
Filling temperature (℃) 0~5
Filling pressure (MPa) 0.15~ 0.5
Main motor power(kw) 2.2 3 4 7.5 7.5 11
Total power(kw) 2.75 3.18 4.18 7.68 7.68 11.5
Overall dimensions (mm) 2700x1500x2300 3012x2012x3260 3280x2420x3200 4430x2880x3200 4650x3200x3200 4987x3846x3200
Weight(kg) 2800 3800 5000 6800 8800 11000

Details of the Machine
- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
- Glass Bottle Washing.

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
- Glass Bottle Filling

304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing

Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
Auto 3000-5000BPH Glass Bottle Carbonated Sparkling Drink Filling Machine
