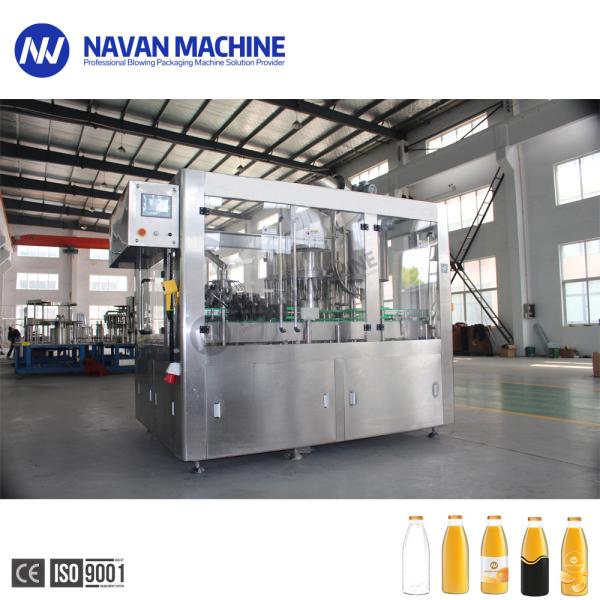

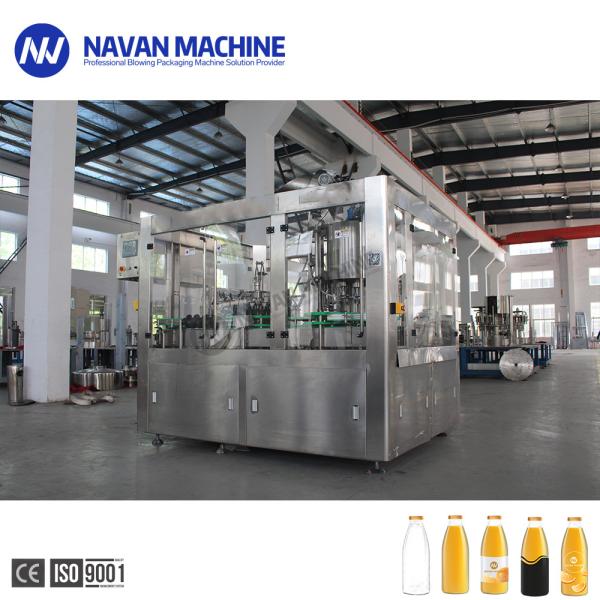

Monoblock Glass Bottle Juice Water Washing Filling Capping Machine
Monoblock Glass Bottle Juice Water Washing Filling Capping Machine
Monoblock Glass Bottle Juice Water Washing Filling Capping Machine
Monoblock Glass Bottle Juice Water Washing Filling Capping Machine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NXGF18-18-6
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
10,000-15,000USD
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15-20 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
4500-5000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

Monoblock Glass Bottle Juice Water Washing Filling Capping Machine

This glass bottle filler and capper is developed on the base of digesting ,absorbing and improving the advanced technology introduced from all over the world , up to international level .This series of machines can meet the filling –sealing requirements of different sealing manners for capper ,T-cork , wooden cork capper ,screw capper etc , and can be applied to water ,carbonated soft drink ,fruit juice ,coffee drink, protein drinks , beer ,rice wine and so on ,with domestic technology leading level .The machines adopt the international popular design technology .Its design is scientific and reasonable , appearance is beautiful , operation and maintenance is convenient , and it is with high degree of automation .So it is the good machine choosing for middle and beginning factory .


Product Paramenters:

Main Technical parameters
Model NXGF18-18-6
Produciton capacity(330ml) 4500-5000
Heads of Rinsing Filling & Capping 18-18-6
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Micro negative pressure filling / gravity filling
Filling temperature (℃) 0~30 or customzied
Filling pressure(MPa) 0.15~ 0.5
Main motor power(kw) 3
Total power(kw) 3.18
Overall dimensions(mm) 3012*2012*3260
Weight(kg) 3800

Details of the Machine
- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Monoblock Glass Bottle Juice Water Washing Filling Capping Machine
- Glass Bottle Washing.

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

Monoblock Glass Bottle Juice Water Washing Filling Capping Machine
- Glass Bottle Filling

304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing

Monoblock Glass Bottle Juice Water Washing Filling Capping Machine
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
Monoblock Glass Bottle Juice Water Washing Filling Capping Machine

Competitive Advantage:

1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
