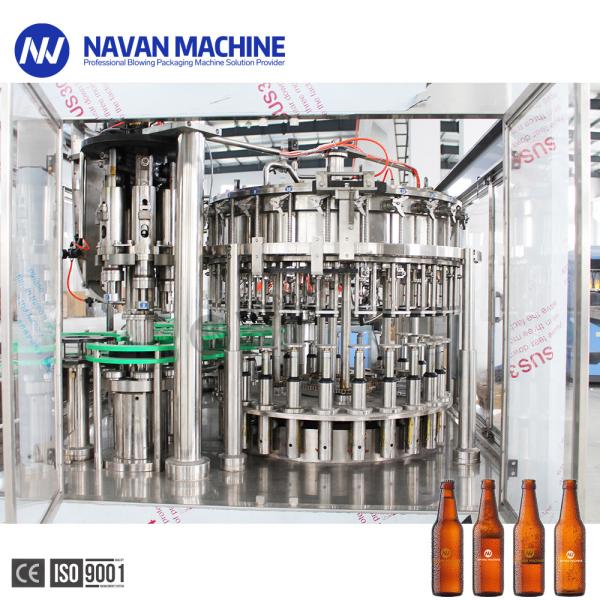

Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine
Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine
Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine
Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NPXGF24-24-8
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15-20 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
6000-8000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine

Main Features

1)Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2) Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3)The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4)High-speed large Isobaric filling valve, filling fast, filling accurate and no liquid lose.

5)Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6)Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.


Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc

Main Technical parameters
Model NPXGF24-24-8
Produciton capacity(330ml) 6000-8000
Heads of Rinsing Filling & Capping 24-24-8
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Isobaric filling (twice vacuumized )
Filling temperature (℃) 0~5
Filling pressure(MPa) 0.15~ 0.5
Main motor power(kw) 4
Total power(kw) 4.18
Overall dimensions(mm) 3280x2420x3200
Weight(kg) 5000

Main Technical parameters
Model NPXGF14-12-5 NPXGF18-18-6 NPXGF24-24-8 NPXGF32-32-8 NPXGF40-40-10 NPXGF50-50-12
Produciton capacity(330ml) 1000-1500 3000-5000 6000-8000 8000-10000 12000-15000 15000-18000
Heads of Rinsing Filling & Capping 14-12-5 18-18-6 24-24-6 32-32-8 40-40-10 50-50-12
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Isobaric filling (twice vacuumized )
Filling temperature (℃) 0~5
Filling pressure (MPa) 0.15~ 0.5
Main motor power(kw) 2.2 3 4 7.5 7.5 11
Total power(kw) 2.75 3.18 4.18 7.68 7.68 11.5
Overall dimensions (mm) 2700x1500x2300 3012x2012x3260 3280x2420x3200 4430x2880x3200 4650x3200x3200 4987x3846x3200
Weight(kg) 2800 3800 5000 6800 8800 11000

Details of the Machine
- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine
- Glass Bottle Washing.

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine
- Glass Bottle Filling

304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing

Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
Automatic 24-24-8 Glass Bottle Carbonated Sparkling Drink Beer Filling Machine

Company Profile
Zhangjiagang Navan Industrial Co.,Ltd
Zhangjiagang Navan Industrial Co., Ltd. is a professional manufacturer of beverage machinery in China.
Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also alcoholic drink filling machine, 5 Gallon bottle filling production line, and all other auxiliary equipment.
Our engineers are located all over the world and can provide safe and fast service to your beverage production solutions in your country.
