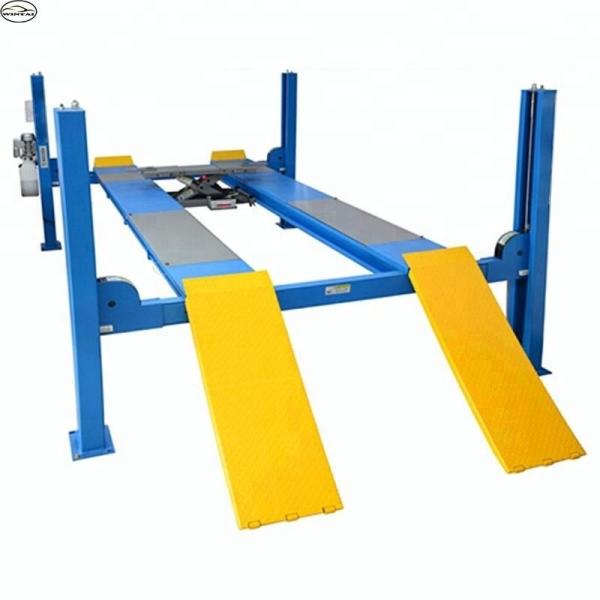

Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Specifications
Design :
Four Post
Type :
Double Cylinder Hydraulic Lift
Lifting Capacity :
4.0T
Warranty :
1 Years
Min Height :
210mm
Lifting Height :
1750mm
Capacity of Secondary Jack :
2000kgs
Lifting Height of secondary jack :
480mm
Motor Power :
2.2KW
Voltage :
220V/380V
Total Height :
2050mm
Inner Width :
2830mm
Port :
shenzhen or guangzhou
Place of Origin :
Guangdong, China
Brand Name :
wintai
Model Number :
440D
Packaging Details :
standard export packing
Supply Ability :
1000 Set/Sets per Month
Price :
$2,450.00/sets >=1 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15
Description
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
CE Certified Performance

440D 4 POST CAR LIFT Pass CE 6T static test and 4.6T dynamic test.

Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Premium Construction Features
  • Oil cylinder parts made by automatic high rotation speed CNC lathe ensure excellent finish and concentricity
  • Japanese oil sealing elements with overload protection
  • International brand oil pipe for reliability
  • Direct driven by twin cylinders with safety steel wire synchronization
  • Polymer wear-resistance slider for extended durability
Advanced Safety Systems
  • Single side control with both sides unlock safety
  • Arm locks with tooth type ratchet mechanism
  • Multiple safety devices for enhanced reliability
  • Gantry type design with no floor obstruction
  • Roof protection safety device
  • Automatic arm lock by built-in ratchet tooth
Durable Surface Finish

Shot blasting and high temperature baking powder coated surface finish for maximum corrosion resistance and longevity.

Technical Specifications
Parameter 440D 455D
Lifting Capacity 4.0T 5.5T
Min Height 210mm 210mm
Lifting Height 1750mm 1750mm
Capacity of Secondary Jack 2000kgs 3000kgs
Lifting Height of Secondary Jack 480mm 480mm
Motor Power 2.2KW 2.2KW
Voltage 220V/380V 220V/380V
Total Height 2050mm 2450mm
Inner Width 2830mm 2920mm
Machine Dimension 4720x3164mm 6152x3385mm
