5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
Specifications
Place of Origin :
Guangdong, China
Brand Name :
WINTAI
Model Number :
250L
Price :
$1,700.00/sets 1-9 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 sets/month
Delivery Time :
15
Packaging Details :
Standard export packaging
Design :
Two Post
Type :
Double Cylinder Hydraulic Lift, 2 post
Lifting Capacity :
5000kg
Warranty :
1 Years
Color :
red,grey,blue,yellow
Voltage :
110v 220v 240v 380v Optional
Lifting Time :
50s
Descending time :
30s
Motor Power :
2.2KW
Total height :
3900mm
Inner width :
3000mm
lifting capacity :
5000kgs
Support arm :
2 steps, 3 steps
Description

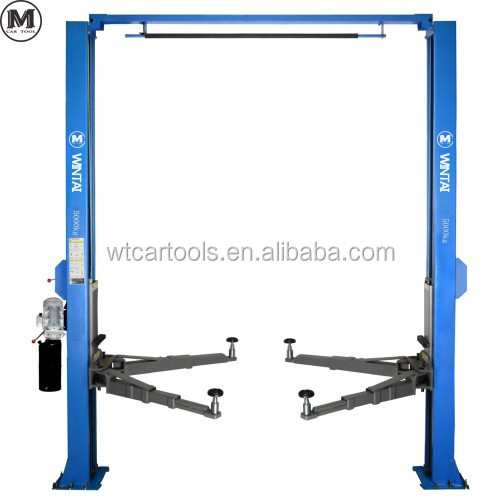

110v 220v 240v 380v Optional Clear Floor 2 Post Car Hoist for SUV Minibus 5000KGS

Product Description

Product Application

5000KGS high quality clear floor 2 post car hoist for SUV minibus is widely used in garage, auto maintenance shop

5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus

Main Features

Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
Japanese oil sealing elements, overload protection, international brand oil pipe.
Direct driven by twin cylinders with safety steel wire as synchronization.
Polymer wear-resistance slider
Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.
Gantry type, no obstruction on the floor.
Roof protection safety device, automatic arm lock by built in ratchet tooth.
Shot blasting and high temperature baking powder coated surface finish.
Pass CE 7.5T static test and 5.7T dynamic test.

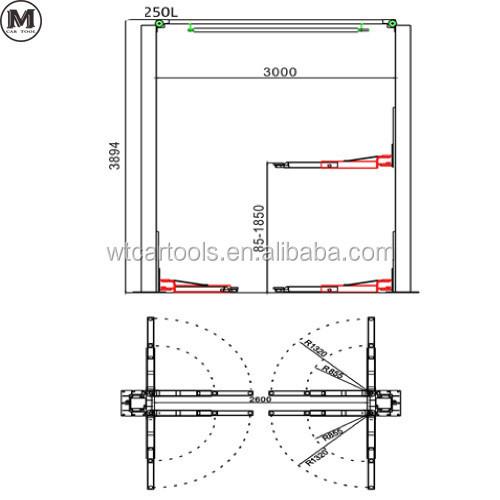

Parameter:
Model 250L
Lifting Capacity 5.0T
Min Height 85mm
Lifting Height 1850mm
Rise Time 50s
Descending Time 30s
Motor Power 2.2KW
Voltage 220V/380V
Total Height 3900mm
Inner Width 3000mm
Total Width 3560mm
Details
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
Details
Details

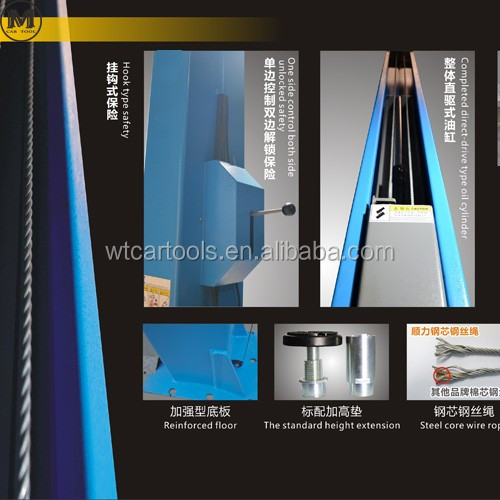

Single side control both sides unlock safety
Complete direct-drive type oil clinder
Extra high extension

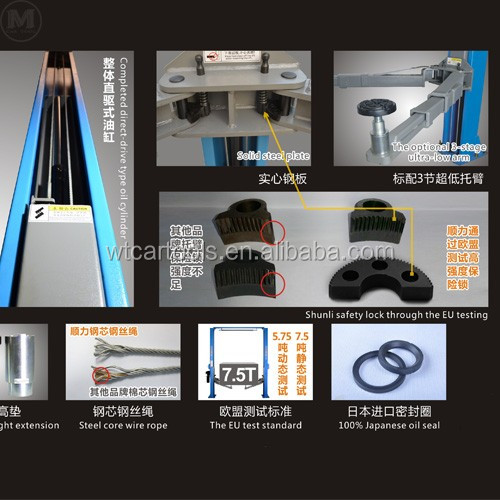

Solid steel plate
5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
Packaging
Details

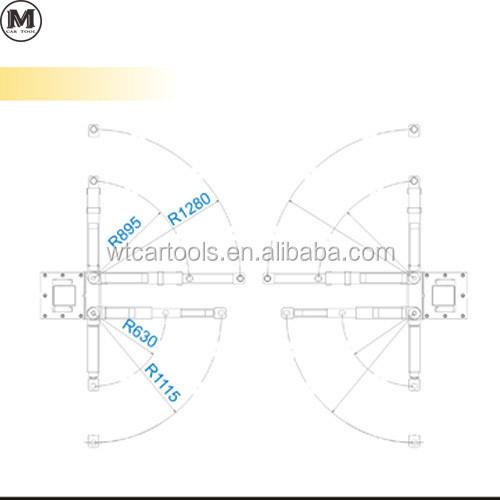

3 steps arm is optional
Steel core wire rope
reinforced floor basement
Strong safety lock
imported seal
