Automatic Car Wash Machine Touchless Car Wash Equipment With Water Flushing Pressure 120 Bar Car Wash Water Reclamation System Car Wash Robotic
Automatic Car Wash Machine Touchless Car Wash Equipment With Water Flushing Pressure 120 Bar Car Wash Water Reclamation System Car Wash Robotic
Automatic Car Wash Machine Touchless Car Wash Equipment With Water Flushing Pressure 120 Bar Car Wash Water Reclamation System Car Wash Robotic
Automatic Car Wash Machine Touchless Car Wash Equipment With Water Flushing Pressure 120 Bar Car Wash Water Reclamation System Car Wash Robotic
Specifications
Brand Name :
WINTAI
Model Number :
KP
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
To be discussed
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 sets/month
Delivery Time :
25
Packaging Details :
Standard export packaging
Electricity requirements :
55 Kw/50Hz

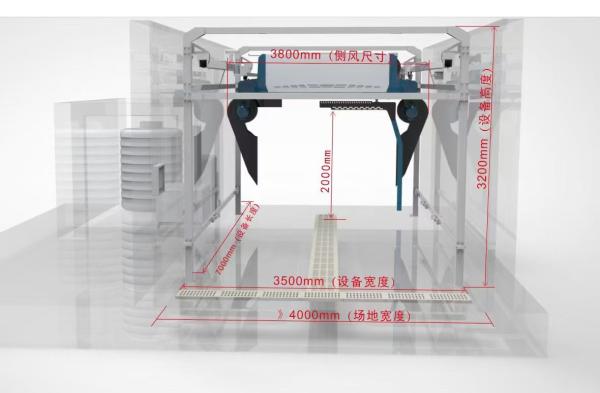

Installation dimensions :
8000*3700*3400(mm)
Maximum car wash size :
6000*2500*2050(mm)
Liquid water pump :
304 stainless steel
Water pump motor(kw) :
380V/18.5kw
Flushing pressure :
80-120kg
Liquid consumption（ml） :
Metering pump/20-50ml
Power consumption（kWh） :
0.5-0.8/per
Water consumption（L） :
100-200L
Installation framework(mm) :
120*120*4 galvanized
Rinse once :
28sec
Description

Do you need a machine with 6 dryers?

Washing Model

Fine Mode (6 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Low foam detergent spraying--High pressure car body flushing--Wax Spraying--Wax Rain--Drying

Fast Mode (2 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Wax Spraying--Wax Rain--Dryin

Built-in 360 degree rotating arms:

1. CAE computer aided simulation design, reasonable placement of nozzle angle and position, to avoid water hedging to weaken the cleaning effect.

2. Intelligent distance calculation, safety and collision prevention function. Equalize pressure, equalize distance and uniform speed washing way.

3.High pressure water pre-wash, shampoos, waxing coating with 360 degree coverage, and finally drying.

Laser pipe cutting machine

All the tube and frame firstly cutting by the laser machine with high precision.

Laser board cutting machine

All the steel board will be cutting by the laser machine with high precision.

CNC bending machine

To make bend the frame directly without any welding point, can the frame more stable.

Hot-dip Galvanized frame without welding.

The frame adopts laser high-precision cutting, CNC bending, 304 stainless steel high-strength screw fixation, the overall operation precision is higher than the welding frame precision, more stable and safe.

The frame steel adopts Q235 international standard profile, the thickness is 4mm, the surface is treated by pickling, phosphating and hot dip galvanizing, SGS salt spray test grade report is grade 10.
