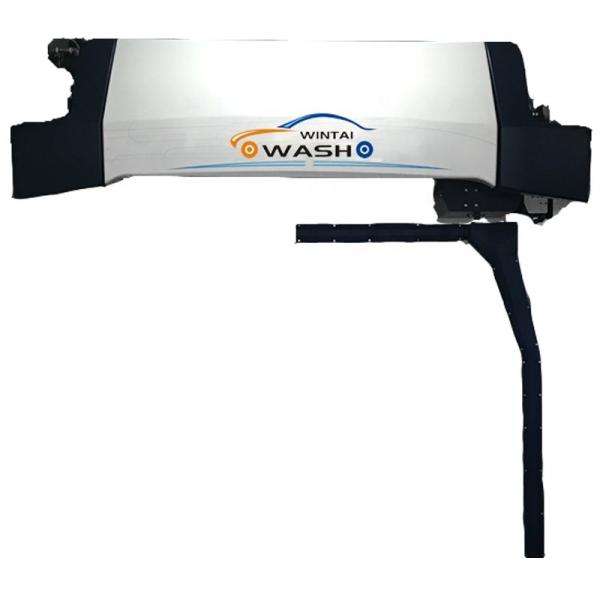

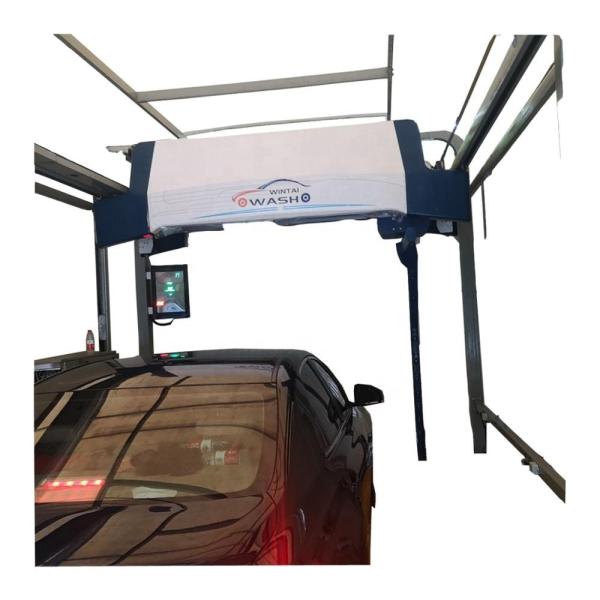

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving
Specifications
Place of Origin :
Guangdong, China
Brand Name :
WinTai
Model Number :
T9
Packaging Details :
Standard Export Packages
Supply Ability :
1000 Set/Sets per Month
Price :
$26,800.00/sets >=1 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
25
Size :
3670mm*1330mm*1300mm
Warranty :
1
Output Power :
>1500W
Design Style :
New China-Chic
Model number :
T9
Max Vehicle Suitable :
6000*2500*2080mm
Water consumption :
65-200L/car
Electricity consumption :
0.4-1KW.H/car
High pressure :
130bar
Waste water recycling :
optional
Self-service payment system :
optional
Air Switch :
100A
Total power :
13KW/24.5KW
Port :
Shenzhen/Guangzhou
Description

Brushless car wash machine fully automatic 130bar high pressure

This is a headache-free machine which can make your business better. You don't need much energy to maintain it as we consider a lot for the quality of each component. Total weight 2.8 tons and 8 cubic meters.

Keywords:

Touch free car washing machine

self-service car washing machine

Touchless car washing machine

brushless car washing machine

Optional:

Waste water recycling system

Self-service payment system

colorful lights system

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving

Special Feature:

Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.

Wasing Mode:

1.Fine Mode (5 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--shampoo spraying--High pressure car body flushing--Wax Spraying---Drying--End

2.Fast Mode (2 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Drying--End

Item Parameters Function Remark
Machine Size(L*W*H) 3670mm*1330mm*1300mm Self-parking and detecting system √
Pump Size(L*W*H) 1280mm*740mm*600mm Digital anti-collision system √
Chemical station size(L*W*H) 1160mm*470mm*1350mm All degree rotary high pressure flushing √
Max Vehicle Suitable 6000*2500*2080mm Chassis flushing √
Installation(L)-Frame Length 7500mm~8000mm Detergent spraying √
Installation(W) 3350mm~3686mm Colorful/high foam detergent spraying √
Installation(H) 3300mm-3400mm Wax spraying system √
Total Weight/volume ≥3300kgs/≥8.5m³ Built-in automatic drying system √
Power Requirement 380V/25KW or other voltage LED indication light guide system √
Air Switch 100A Operation permission setting function √
Total Power 13KW/24.5KW Self-service payment system √
Water Pump Motor Power 18.5KW/pressure 100Bar,100-100 Bar Adjustable,Simens Voice Prompts function √
Fan Motor Power 5.5KW/set x4sets Car washing counting function √
Horizontal Motor Power 0.55KW asynchronous frequency conversion speed regulation Antifreeze system √
Cross Motor Power 1KW digital servo motor Oil-free system √
Rotation motor Power 1KW digital servo motor Equal pressure anti-blocking nozzle √
Chemical Proportion Motor Power 0.37KW Safe alarm system √
Central Processing unit PLC Industrial intelligent digital control system Automatic Standby function √
Drive system variable frequency speed control+digital servo driver
Inspection system Intelligent three-dimensional detection system
Running speed 27 seconds/360 degree one circle Self-service payment system .
Water consumption 65-200L/car Colorful Lights(like above right picture) .
Electricity consumption 0.4-1KW.H/car Water Recycle System .
√ Standard . Optional

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving

Optional : sewage purification and recycling system
