360 Rotating Arms Touchless Car Washer With Self Service Payment System
360 Rotating Arms Touchless Car Washer With Self Service Payment System
360 Rotating Arms Touchless Car Washer With Self Service Payment System
360 Rotating Arms Touchless Car Washer With Self Service Payment System
360 Rotating Arms Touchless Car Washer With Self Service Payment System
360 Rotating Arms Touchless Car Washer With Self Service Payment System
360 Rotating Arms Touchless Car Washer With Self Service Payment System
360 Rotating Arms Touchless Car Washer With Self Service Payment System
Specifications
Place of Origin :
Guangdong, China
Brand Name :
WinTai
Model Number :
T9
Packaging Details :
Standard Export Packages
Supply Ability :
1000 Set/Sets per Month
Price :
$26,800.00/sets 1-1 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, T/T, D/P
Delivery Time :
25
Max Vehicle Suitable :
6000*2500*2080mm
Water consumption :
65-200L/car
Electricity consumption :
0.4-1KW.H/car
Total Weight/volume :
≥3300kgs/≥8.5m
Installation(H) :
3300mm-3400mm
Air Switch :
100A
Total power :
13KW/24.5KW
Description

Touch free automatic car washing machine with self service payment system

This is a headache-free machine which can make your business better. You don't need much energy to maintain it as we consider a lot for the quality of each component. Total weight 2.8 tons and 8 cubic meters.

Simple, streamlined design:

1. Beautiful shape with streamline, simple and fashion, beauty both in mechanical and practical.

2. Smooth overall structure,Reasonable walking trolley structure, make sure the machine runs more stable and safe.

3. Exquisite material selection, giving consideration to firmness and lightness, simplicity and durability.

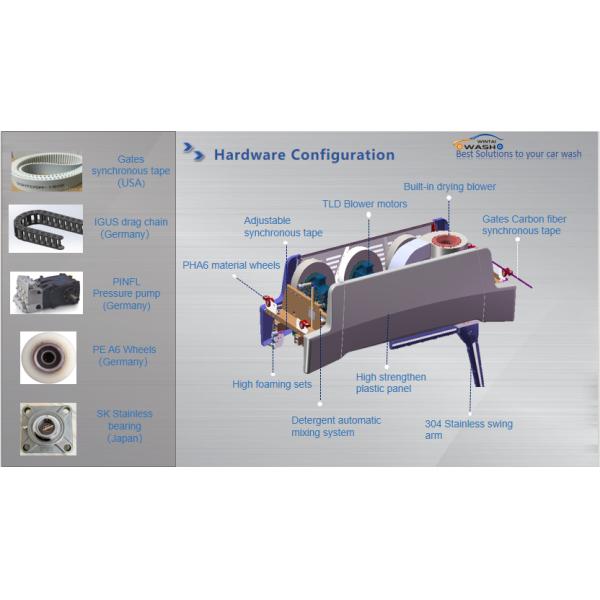

Built-in 360 degree rotating arms:

1. CAE computer aided simulation design, reasonable placement of nozzle angle and position, to avoid water hedging to weaken the cleaning effect.

2. Intelligent distance calculation, safety and collision prevention function. Equalize pressure, equalize distance and uniform speed washing way.

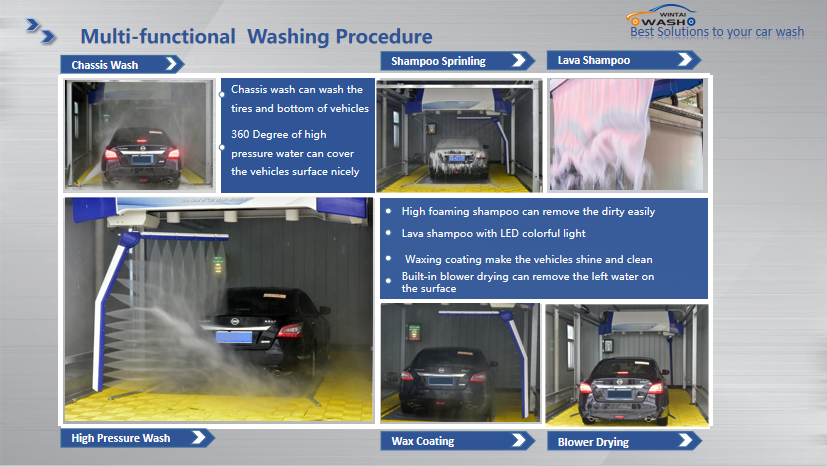

3.High pressure water pre-wash, shampoos, waxing coating with 360 degree coverage, and finally drying.

Bulit-in slient drying blower:

1. Built-in drying blower, elegant appearance and intensive structure, more beautiful and space saving.

2. Blower can moving along with equipment trolley, mobile drying with great blower effect.

360 Rotating Arms Touchless Car Washer With Self Service Payment System

Item Parameters Function Remark
Machine Size(L*W*H) 3670mm*1330mm*1300mm Self-parking and detecting system √
Pump Size(L*W*H) 1280mm*740mm*600mm Digital anti-collision system √
Chemical station size(L*W*H) 1160mm*470mm*1350mm All degree rotary high pressure flushing √
Max Vehicle Suitable 6000*2500*2080mm Chassis flushing √
Installation(L)-Frame Length 7500mm~8000mm Detergent spraying √
Installation(W) 3350mm~3686mm Colorful/high foam detergent spraying √
Installation(H) 3300mm-3400mm Wax spraying system √
Total Weight/volume ≥3300kgs/≥8.5m³ Built-in automatic drying system √
Power Requirement 380V/25KW or other voltage LED indication light guide system √
Air Switch 100A Operation permission setting function √
Total Power 13KW/24.5KW Self-service payment system √
Water Pump Motor Power 18.5KW/pressure 100Bar,100-100 Bar Adjustable,Simens Voice Prompts function √
Fan Motor Power 5.5KW/set x4sets Car washing counting function √
Horizontal Motor Power 0.55KW asynchronous frequency conversion speed regulation Antifreeze system √
Cross Motor Power 1KW digital servo motor Oil-free system √
Rotation motor Power 1KW digital servo motor Equal pressure anti-blocking nozzle √
Chemical Proportion Motor Power 0.37KW Safe alarm system √
Central Processing unit PLC Industrial intelligent digital control system Automatic Standby function √
Running speed 27 seconds/360 degree one circle Self-service payment system .
consumptionWater 65-200L/car Colorful Lights(like above right picture) .
Electricity consumption 0.4-1KW.H/car Water Recycle System .

360 Rotating Arms Touchless Car Washer With Self Service Payment System

360 Rotating Arms Touchless Car Washer With Self Service Payment System

360 Rotating Arms Touchless Car Washer With Self Service Payment System

360 Rotating Arms Touchless Car Washer With Self Service Payment System360 Rotating Arms Touchless Car Washer With Self Service Payment System360 Rotating Arms Touchless Car Washer With Self Service Payment System360 Rotating Arms Touchless Car Washer With Self Service Payment System360 Rotating Arms Touchless Car Washer With Self Service Payment System

Optional : sewage purification and recycling system

360 Rotating Arms Touchless Car Washer With Self Service Payment System
