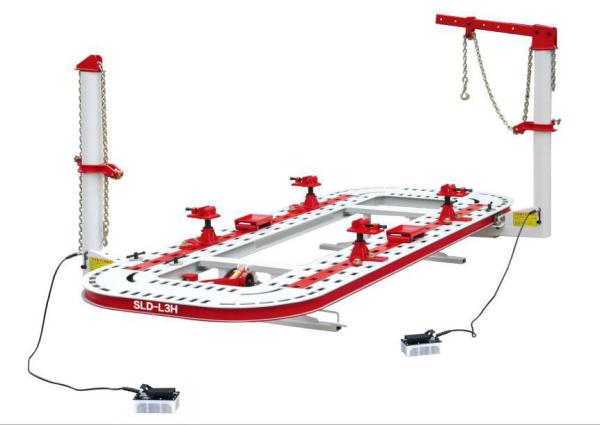

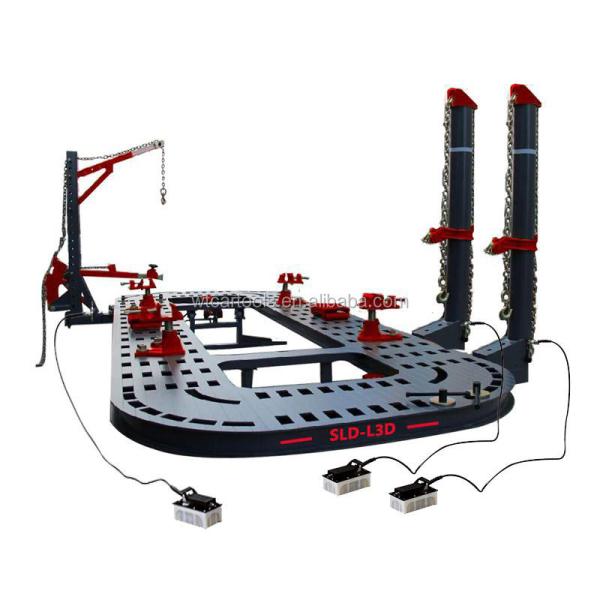

Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Specifications
Type :
Other
Color :
Black
Material :
Metal
Weight :
2300kg
Max. Lifting Capacity :
3500
Worktable Width :
2200mm
Warranty :
1 Year
Bench Height :
550MM
Worktable Length :
5900MM
Function :
Car Collision Straightening Machine for car accident repair
shippping :
Ocean /sea
Delivery Time :
15
Port :
Guangzhou
Place of Origin :
Guangdong, China
Brand Name :
Wintai
Model Number :
L3H
Packaging Details :
Standard export packaging
Supply Ability :
1000 Piece/Pieces per Month
Price :
$4,683.00/pieces 1-1 pieces
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Description
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity
Professional Straightening Equipment for Automotive Car Body Repair Frame Pulling
Metal Car Frame Straightening Machine Customized With 3500kg Lifting Capacity

Widely used for auto body repair shops, 4S stations, and quick repair facilities.

Construction & Materials
  • Materials: Manganese steel
  • Color: BLUE, RED, WHITE, or any custom color available
  • Surface Treatment: Powder Coating
  • Customizable number of towers and booms
  • Manganese steel construction with single tilting system platform
  • 10mm steel plate with 5 rows of square holes
  • Includes 2 circular towers (Φ=140mm)
Technical Specifications
Specification Details
Platform 5600/5800/5900×2200×550mm
Platform Thickness 120mm
Air Supply Required 0.8MPa
Hydraulic Power 70Mpa (10000psi)
Max. Pulling Capacity 100KN (10 ton)
Tower Working Range 360°
Max. Lifting Capacity 3500kg
Packing List
  • 1 movable crane jib
  • 25 pieces of tools
  • 4 main clamps
  • 2 air pumps
  • 2 ramps
  • 1 tool cart
Package Dimensions & Weight
Package Sizes:
5600/5800/5900 × 2200 × 230mm
2200 × 1450 × 520mm
Weight: 2300kg
