2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
Specifications
Certification :
CE
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15
Type :
Parking Lift
Warranty :
12 Months
Loading Capacity :
2500kgs
Equipment size :
L 4100mm*W 2650mm*H 350mm~2350mm
Car size :
L 5000mm*W 2000mm*H 1900mm
Lifting capacity :
2500kgs
Number of parking :
2
Running speed :
UP 60s/DOWN 50s
Motor :
2.2KW
Voltage :
220/380V
Operating pressure :
21Mpa~25Mpa
Port :
Guangzhou/Shenzhen
Place of Origin :
Guangdong, China
Brand Name :
wintai
Model Number :
0N-7809
Packaging Details :
standard export package
Supply Ability :
1000 Set/Sets per Month
MOQ :
5 sets
Price :
$2,000.00/sets >=5 sets
Description
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm×2000mm×1900mm Car Size
Product Overview

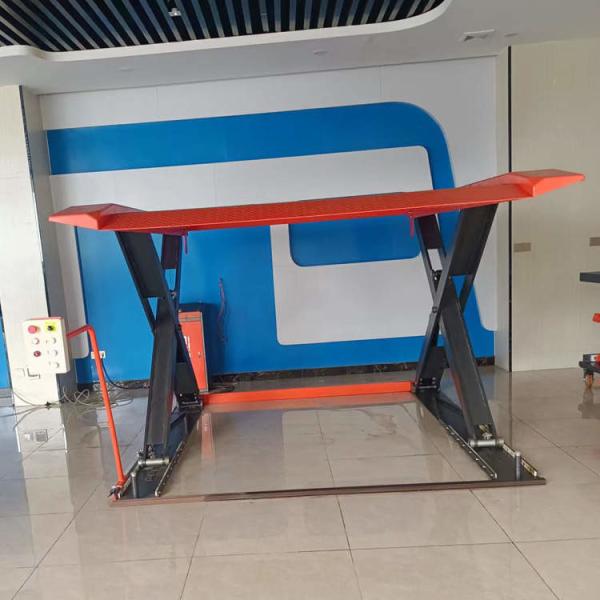

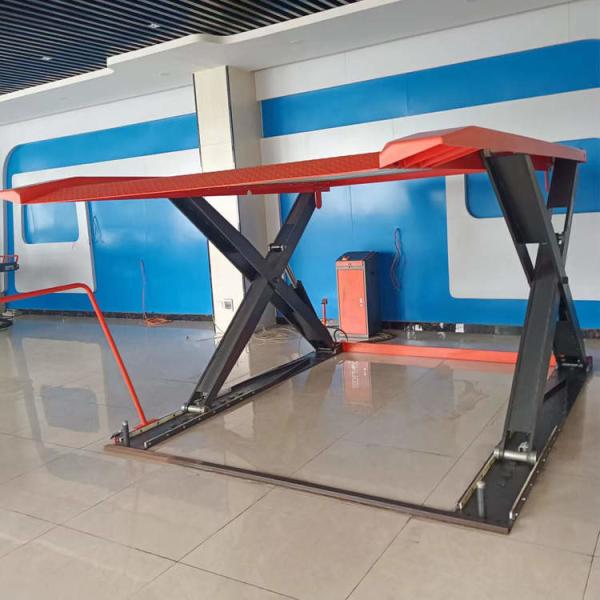

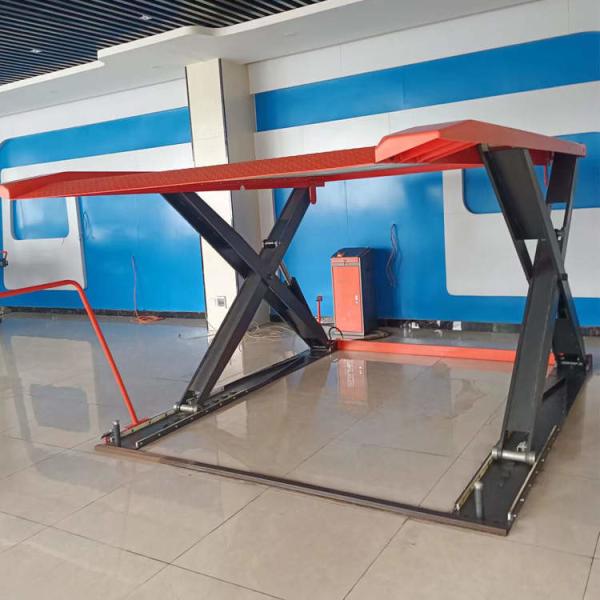

The scissor parking equipment features a scissor structure designed for 2 vehicles. Utilizing hydraulic transmission, the system employs a hydraulic pump that outputs high-pressure oil to drive hydraulic cylinders, enabling the loading plate to rise or descend for vehicle access. When the vehicle board is in the raised position, ground-level parking spaces become accessible for vehicle entry and exit.

Key Features
  • Compliance with European and American standards with CE certification for guaranteed quality
  • Compact footprint with flexible parking space configuration adaptable to parking lot requirements
  • Single-stage double cylinder lifting system with automatic balance adjustment, ensuring quiet and stable operation
  • Vehicle platform constructed with hot-dip galvanized corrugated board technology for enhanced durability and aesthetic appeal
  • Side beams feature bending and spraying processes to increase strength and visual appeal
  • Easy installation suitable for residential, 4S shops, public, or underground parking lots (requires underground clearance exceeding 3.6 meters)
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
Right Elevation
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
Left Elevation
2.2KW Motor Double Deck Scissor Car Parking Lift For 5000mm*2000mm*1900mm Car Size
Front Elevation
Technical Specifications
Item Specification
Model ON-7809
Equipment Size 4100mm (L) × 2650mm (W) × 350mm–2350mm (H)
Car Size Capacity 5000mm (L) × 2000mm (W) × 1900mm (H)
Maximum Car Weight 2350 kg
Number of Parking Spaces 2
Operating Speed UP: 60 seconds / DOWN: 50 seconds
Motor Power 2.2 KW
Voltage 220V / 380V
