Specifications
Type :
Spray Booths
Power :
15KW
External Size :
7000*5350*3400mm(L*W*H)
Internal Size :
6900*3900*2650mm
Voltage :
110V/220V/ 380V
Disc Dia. :
NM
No Load Speed :
NM
Place of Origin :
Guangdong, China
Brand Name :
WINTAI
Model Number :
WW0802
Warranty :
1 year
Color :
red,orange,white,blue
Heating source :
diesel,gas,LPG,electricity
Suitable vehicle :
car,SUV,saloon car
Intake Fan :
2X4KW centrifugal fan
Exhaust Fan :
1x5.5KW centrifugal fan
Light :
LED
Basement :
300mm
Ceiling Filter :
F5/EU5/600G
Floor Filter :
Fiberglass
Exhaust Filter :
Fiberglass
Price :
$7,998.00/sets >=1 sets
Description
NM Disc Dia. Semi Down Draft Car Painting Spray Booth for Auto Painting Operation
Product Overview

This high-quality semi down draft car painting spray booth with turbo fan is designed for automotive, furniture, and industrial applications. It creates a perfect dust-free environment for painting and baking vehicles, furniture, and other products.

NM Disc Dia. Semi Down Draft Car Painting Spray Booth for Auto Painting Operation NM Disc Dia. Semi Down Draft Car Painting Spray Booth for Auto Painting Operation NM Disc Dia. Semi Down Draft Car Painting Spray Booth for Auto Painting Operation NM Disc Dia. Semi Down Draft Car Painting Spray Booth for Auto Painting Operation
Main Features
  • Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness with colorful steel skin boards (0.426mm) and galvanized steel roof panel

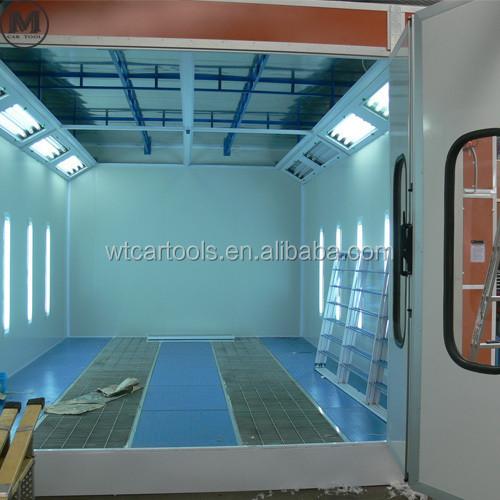

  • Basement: Galvanized steel sheet and square steel pipe construction with 2 rows of grids with floor filter & 3 rows of checkered plates, including 2 ramps
  • Door System: 3 front doors with aluminum frame (3000mm x 2600mm) and 1 emergency door
  • Air Circulation: 2x4kW intake fans, 1x5.5kW exhaust fan with BELIMO 20N electric damper
  • Heating System: Italy Riello G20 diesel burner (200,000 Kcal/h) with 5-7 minute heating time (20-60°C), maximum temperature 80°C, fuel consumption 4-5kg/vehicle
  • Heat Exchanger: Stainless steel construction with 85% heat exchange rate
  • Lighting: 24 ceiling LED lamps (16W) and 16 side LED lamps (16W) providing 1200 Lux illumination
  • Air Purification: Dual filtering structure with primary filter capturing granules >10μm and ceiling filter capturing granules >5μm, achieving 98% air cleanliness
  • Pollution Control: Multi-layer fiberglass filter system
Technical Specifications
Model External Size (m) Internal Size (m) Air Flow (m³/h) Air Speed (m/s) Power (kW) Vehicle Suited
WW0802 7x5.45x3.35 6.9x3.9x2.65 24000 0.3-0.5 16 Saloon Car, Jeep
Packaging & Delivery
NM Disc Dia. Semi Down Draft Car Painting Spray Booth for Auto Painting Operation

Packaging Materials: EPS wallboard (rockwool optional) with bubble paper protection

Packaging Details: Each part is labeled with part numbers corresponding to the packing list for easy identification and assembly
