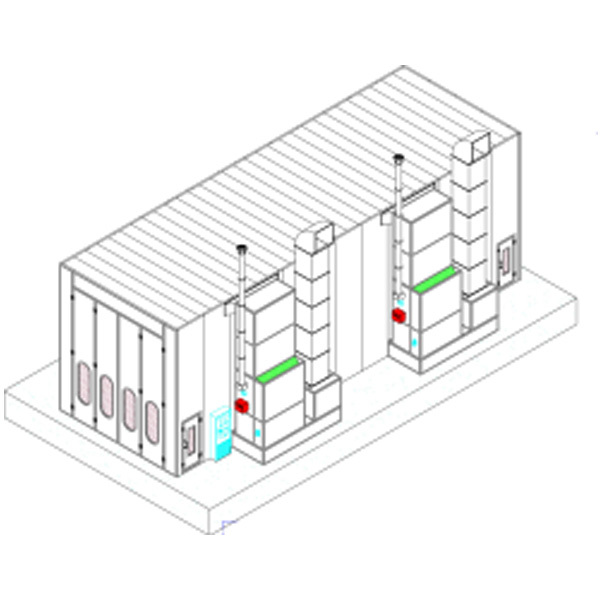

12M Truck Spray Booth with Diesel Burner
Professional spray booth system designed for trucks, trains, metro vehicles, and buses without base requirements.
TELASKA A08 Standard Specifications
| Booth Cabin Panel |
High gloss white rock wool panel, thickness 75mm with edges |
| Front Door/Safety Door |
Four sheet metal front doors and 2 safety doors |
Lighting System
| Top Lighting |
16 sets of LED lights, each set 4×18W |
| Middle Lighting |
16 sets of LED lights, each set 4×18W |
Filter System
| Ceiling Filter |
12 sets of grill type net supporting installation |
Intake & Exhaust System
| Intake Fan |
2 units of European style fans with capacity of 30,000 m³/h (two sets of intake fans) |
| Exhaust Fan |
2 units of European style fans with capacity of 30,000 m³/h (two sets of exhaust fans) |
| VCD Damper |
2 units |
| Load Air Velocity |
0.25-0.35 m/s |
| Exhaust Duct |
4 meters of straight duct, 1 piece of 90° bend, and 1 piece of 45° bend (2 sets) |
Heating System
| Heating Method |
RIELLO brand RG5S diesel burner, cycle heating (2 sets) |
| Max. Working Temperature |
80℃ |
| Constant Temp. Spray Painting |
Constant Temperature Operation |
Control System
| Control Panel |
Made by quality components with functions of overload, overheat and phase lack protection |
| Functions |
Spray, Bake, Lighting and Emergency Stop |
