Specifications
Power :
15KW
External Size :
7000*5350*3400mm(L*W*H)
Internal Size :
6900*3900*2650mm
Voltage :
110V/220V/ 380V
Place of Origin :
Guangdong, China
Brand Name :
WINTAI
Model Number :
WW0900
Certification :
CE
Color :
red,orange,white,blue
Heating source :
diesel,gas,LPG,electricity
Intake Fan :
7.5KW turbo fan
Exhaust Fan :
5.5KW turbo fan
Basement :
300mm
Ceiling Filter :
F5
Floor Filter :
Fiberglass
Exhaust Filter :
active carbon filter
Packaging Details :
standard export package
Supply Ability :
100 Set/Sets per Month
Price :
$8,000.00 - $10,000.00/sets
Description
European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter
Product Application
This European type diesel spray booth with turbo fan is widely used in automotive, furniture and other industries. It creates a perfect dust-free space for painting and baking cars, furniture and other products. The unit uses turbo fans as intake & exhaust fans for easy maintenance and features an active carbon filter system for cleaner emission air. With 3 rows of grids and 2 rows of checkered plates, air can be recycled more efficiently.
European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter
Main Features
  • Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
  • Basement: Galvanized steel sheet and square steel pipe construction. 3 rows of grids with floor filter & 2 rows of checkered plates. Full ramps.
  • Door: 3 pieces of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2600(h). 1 emergency door. Watching window with aluminum frame.
  • Air Circulation System: 1 x 7.5kw direct drive intake fan, 1 x 5.5kw direct drive exhaust fan. BELIMO 20N electric damper.
  • Burner: Italy Riello RG5S diesel burner, 260,000 Kcal/h. Heating time 4-5min (20-60°C). Maximum temperature at 80°C. Fuel consumption is 5-6kg/vehicle.
  • Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
  • Lighting System: Ceiling light has 32 pieces of 16w LED lamps. Side light has 16 pieces of 16w LED lamps. 1200 Lux.
  • Air Purification: Dual filtering structure. Primary filter is M pattern nonwoven filter bags capturing granules larger than 10μm. Ceiling filter captures granules bigger than 5μm. Air cleanliness in working environment reaches 98%.
  • Pollution Control System: Special configuration with M pattern Active Carbon pocket Filter System.
Model External Size (m) Internal Size (m) Air Flow (m³/h) Air Speed (m/s) Power (kw) Vehicle Suited
WW0900 7x5.45x3.35 6.9x3.9x2.65 25000 0.3-0.5 15 Saloon Car Jeep
Packaging & Delivery
Packaging Details: Each part is labelled by part number which you can find from packing list.
European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter
Wallboard EPS, rockwool is optional
Package Bubble paper
Related Products
European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter

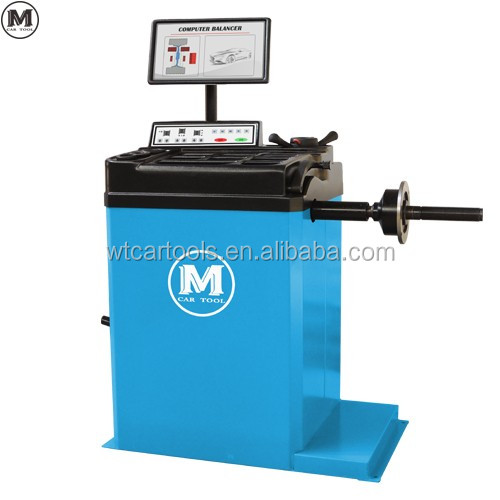

Wheel Balancer
