Heavy Duty Diesel Turbo Fan Truck Spray Booth 48 Pcs Infrared Lamps Reinforced Steel Basement Industrial Truck Painting Equipment
Heavy Duty Diesel Turbo Fan Truck Spray Booth 48 Pcs Infrared Lamps Reinforced Steel Basement Industrial Truck Painting Equipment
Specifications
Brand Name :
WINTAI
Model Number :
WINTAI-9005
Place of Origin :
Guangzhou, China
Certification :
CE, ISO 9001, ISO 14001, OHSAS 18001
MOQ :
1
Price :
us$18500/set-us$25000/set
Payment Terms :
L/C,T/T
Supply Ability :
15 sets per month
Delivery Time :
45
Packaging Details :
Containerized, 5-8×40ft HC containers
Fan Type :
4× Turbo VFD Direct Drive
IR Lamps :
48 Ceiling + 32 Side + 12 Wall
Heating Source :
Dual Diesel 600K Kcal/h
Loading Capacity :
10T (Tested 14T)
Control System :
Schneider PLC + 12" HMI + VPN
Panel Insulation :
100mm Rock Wool Class A
Total Airflow(m³/h) :
85000
Description

Heavy Duty Diesel Turbo Fan Truck Spray Booth 48 Pcs Infrared Lamps Reinforced Steel Basement Industrial Truck Painting Equipment

Specification

Model Number

WINTAI-9005

Power

28KW

External Size

12000*7000*5200mm (L*W*H)

Internal Size

11800*5600*4400mm

Voltage

380V/415V/480V 3-Phase

Color Options

White, Blue, Grey, Custom

Heating Source

Diesel Dual Burner (2*300,000 Kcal/h)

Infrared Lamps

48 Pcs * 16W LED IR (Ceiling) + 32 Pcs Side Wall

Suitable Vehicle

Heavy Truck, Bus, Trailer, Construction Equipment

Intake Fan

2*9.5KW Turbo Fans (Dual, VFD)

Exhaust Fan

2*7.5KW Turbo Fans (Dual, VFD)

Lighting

LED 1600 Lux, 48 Ceiling + 32 Side + 12 Wall

Basement

500mm Heavy-Duty, 5 Rows Grids + 4 Rows Plates

Loading Capacity

10T (Tested 14T Static Load)

Ceiling Filter

F6 EU6, 10 Panels, Walk-On Plenum

Floor Filter

Fiberglass 5-Zone, Quick-Release Frame

Exhaust Filter

Active Carbon Tower + HEPA H13 Option

Control Panel

Schneider PLC + 12" Industrial Touch Screen + Remote Access

Max Temperature

80°C (Heat-up: 10-12 min to 60°C)

Heat Exchanger

Dual SS316L, 90% Combined Efficiency

Noise Level

≤85dB (Soundproofed Fan Housing)

Certification

CE, ISO 9001, ISO 14001, OHSAS 18001

Product Application

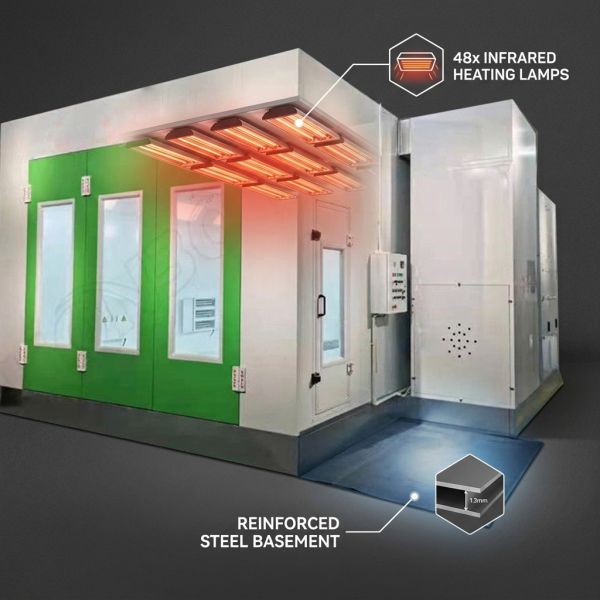

WINTAI-9005 is the flagship heavy-duty diesel spray booth for the most demanding industrial applications: heavy truck fleet maintenance, bus manufacturing, construction equipment refinishing, and military vehicle coating. The 10T reinforced basement with 5-row grid extraction handles the largest commercial vehicles. Dual diesel burners (600,000 Kcal/h combined) paired with 48 ceiling IR lamps and 32 side wall lamps ensure uniform curing across the massive 66m² interior. WINTAI has completed heavy industrial booth projects for national bus operators, mining equipment manufacturers, and port logistics companies worldwide.

Main Features
1) Wallboard: 100mm rock wool sandwich, 0.6mm galvanized steel dual skin. Class A fire-rated (GB 8624). Wind-load rated 180 km/h.
2) Basement: Heavy I-beam substructure. 500mm reinforced concrete pit (design provided). 5 rows ventilation grids + 4 rows checkered plates. 10T operational / 14T static tested.
3) Door: Industrial motorized vertical lift (6000*5000mm) with safety light curtain. Dual rear doors. 4 personnel doors with panic bars.
4) Air System: 4* Turbo VFD fans (2*9.5KW intake + 2*7.5KW exhaust). Total airflow 85,000 m³/h. Air velocity 0.35-0.45 m/s. 350 air changes/hour.
5) Diesel Burners: Dual synchronized Riello-type diesel burners (600,000 Kcal/h total). Dual SS316L heat exchangers with 90% efficiency. Fuel consumption 8-10 kg/vehicle.
6) IR Lighting Array: 48 ceiling IR LED lamps + 32 side wall + 12 wall lamps. 1600 Lux at working height. Color rendering index (CRI) >90 for accurate color work.
7) Filtration: F6 EU6 walk-on ceiling plenum (10 panels). 5-zone fiberglass quick-release floor filters. Optional HEPA H13 final filter for critical applications.
8) Emission Control: Industrial active carbon adsorption tower (3m³ capacity). Continuous VOC monitoring with data logging. >98% VOC removal efficiency.
9) Control & Safety: Schneider PLC + 12" industrial touch screen. Remote access via VPN for diagnostics. 50 programmable cure recipes. Integrated gas detection + fire alarm interface.
