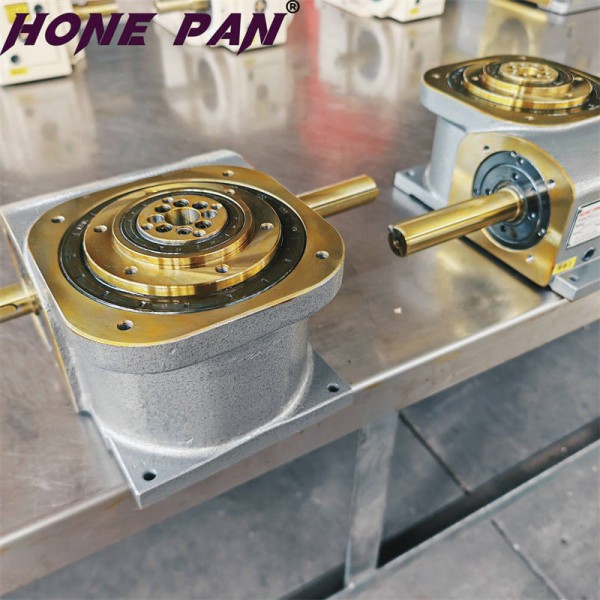

DA Series Free Stop Cam Indexer / Arbitrary Stop Cam Indexing Gearboxes
Ultra-Slim Platen Type Design

Featuring a compact size and slimmer profile compared to the DT Series, the DA Series is engineered for space-constrained environments requiring precision and durability.

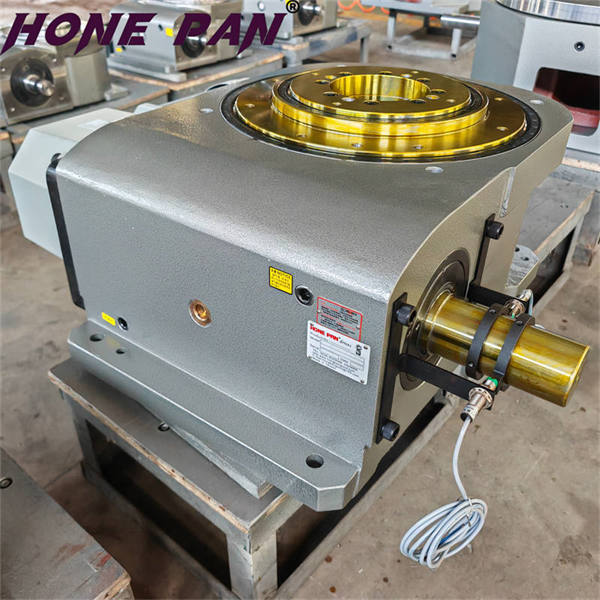

Available Models

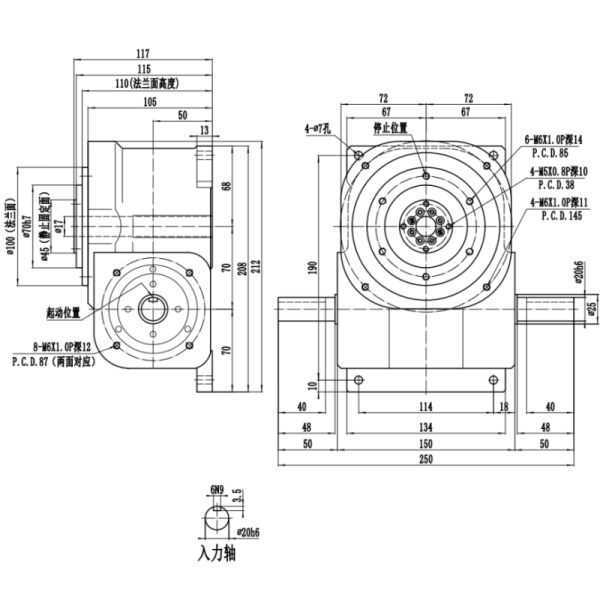

  • 70DA
  • 90DA
  • 110DA

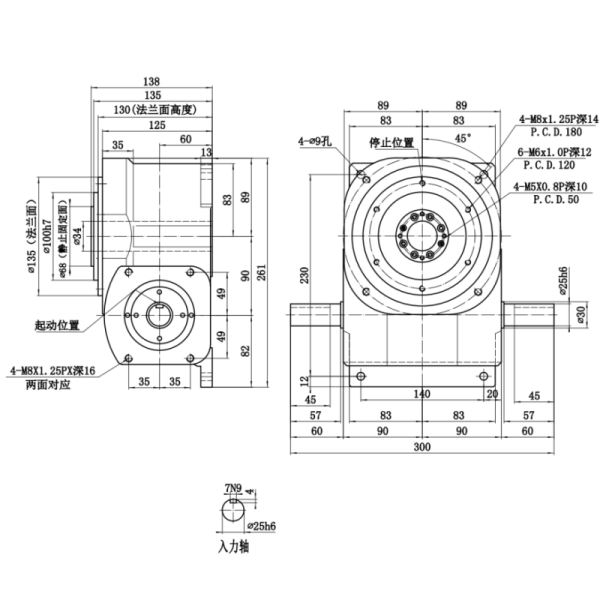

  • 150DA

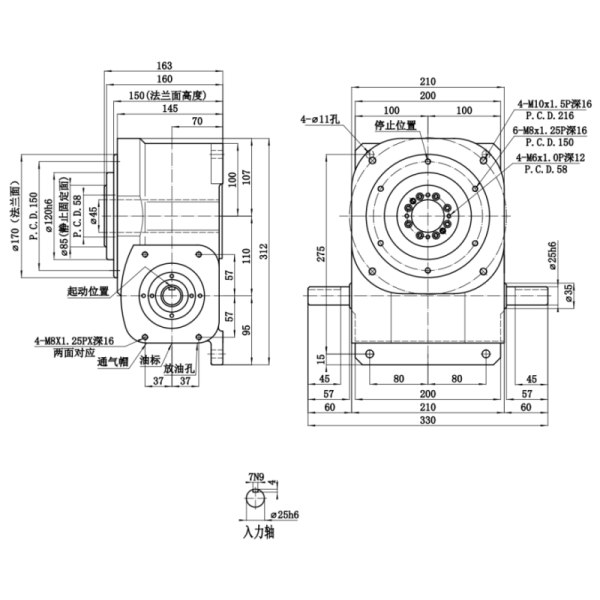

  • 190DA

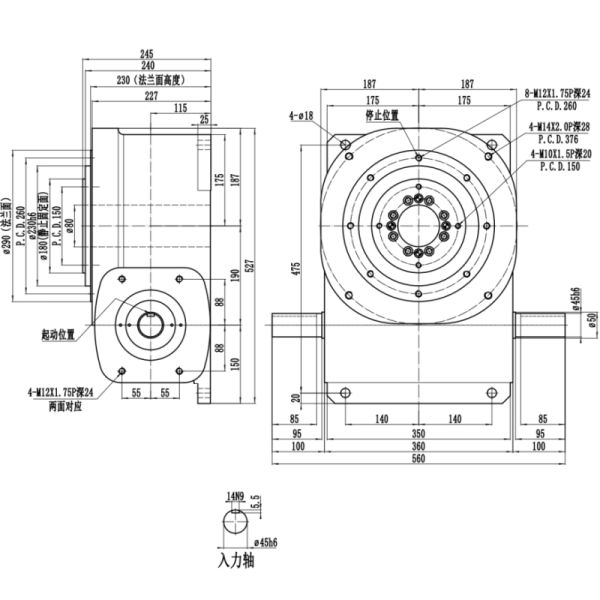

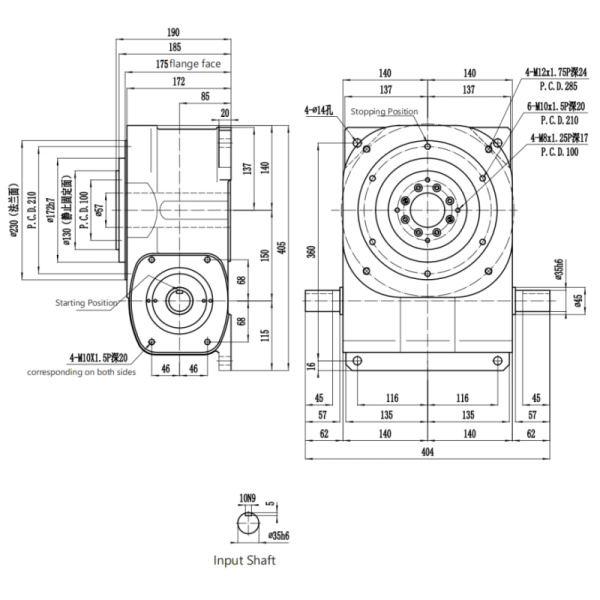

  • 230DA
  • 330DA

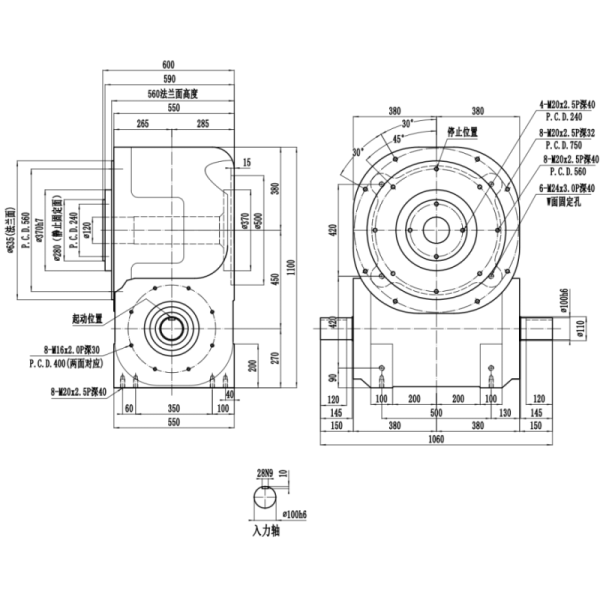

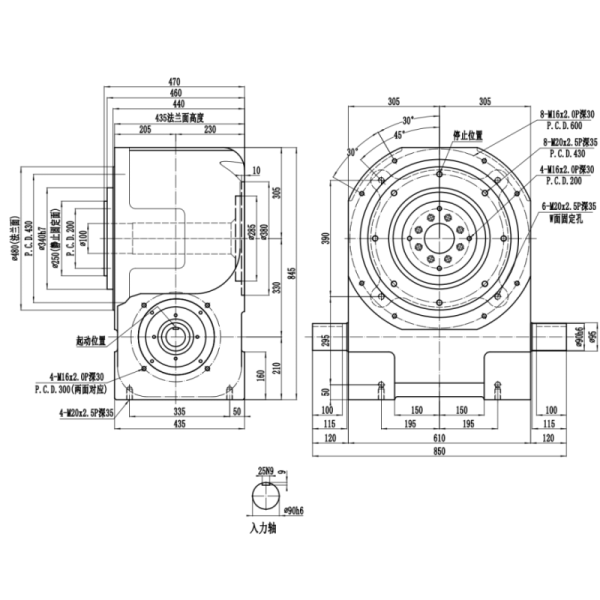

  • 450DA

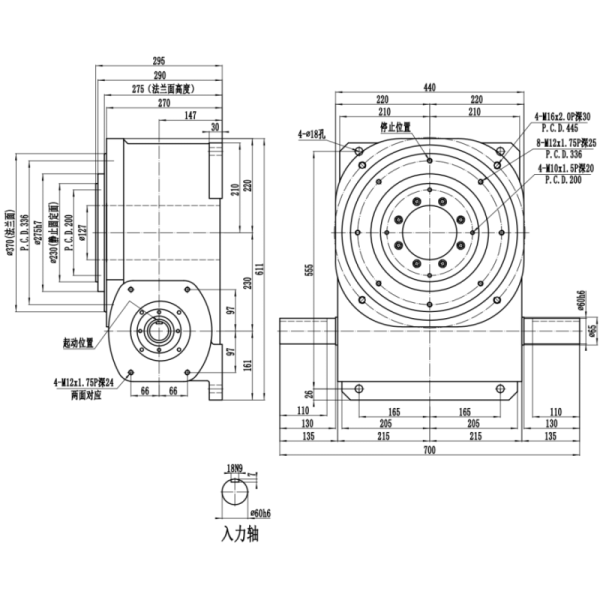

Technical Specifications
70DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 316
Allowable Axial Load of Output Shaft C2 kgf 142
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 190
Maximum Bending Moment of Input Shaft C4 kgf 163
Maximum Torque of Input Shaft C5 kgf-m 9.5
Moment of Inertia of Input Shaft C6 kgf-m² 1.9×10⁻⁵
Positioning Indexing Accuracy
sec. ±30
Weight
kg 15
Note 1: Moment of Inertia values
DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
90DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 480
Allowable Axial Load of Output Shaft C2 kgf 195
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 250
Maximum Bending Moment of Input Shaft C4 kgf 250
Maximum Torque of Input Shaft C5 kgf-m 22
Moment of Inertia of Input Shaft C6 kgf-m² 2.5×10⁻⁵
Positioning Indexing Accuracy
sec. ±30
Weight
kg 30
Note 1: Moment of Inertia values
DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
110DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 680
Allowable Axial Load of Output Shaft C2 kgf 330
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 300
Maximum Bending Moment of Input Shaft C4 kgf 350
Maximum Torque of Input Shaft C5 kgf-m 27
Moment of Inertia of Input Shaft C6 kgf-m² 6×10⁻⁵
Positioning Indexing Accuracy
sec. ±30
Weight
kg 44
Note 1: Moment of Inertia values
DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
150DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1000
Allowable Axial Load of Output Shaft C2 kgf 650
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 400
Maximum Bending Moment of Input Shaft C4 kgf 400
Maximum Torque of Input Shaft C5 kgf-m 36
Moment of Inertia of Input Shaft C6 kgf-m² 2×10⁻⁵
Positioning Indexing Accuracy
sec. ±30
Weight
kg 90
Note 1: Moment of Inertia values
DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
190DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1838
Allowable Axial Load of Output Shaft C2 kgf 918
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 510
Maximum Bending Moment of Input Shaft C4 kgf 510
Maximum Torque of Input Shaft C5 kgf-m 61
Moment of Inertia of Input Shaft C6 kgf-m² 0.105
Positioning Indexing Accuracy
sec. ±30
Weight
kg 180
Note 1: Moment of Inertia values
DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
230DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 2800
Allowable Axial Load of Output Shaft C2 kgf 1300
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 650
Maximum Bending Moment of Input Shaft C4 kgf 650
Maximum Torque of Input Shaft C5 kgf-m 80
Moment of Inertia of Input Shaft C6 kgf-m² 0.136
Positioning Indexing Accuracy
sec. ±30
Weight
kg 285
Note 1: Moment of Inertia values
DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
330DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 3560
Allowable Axial Load of Output Shaft C2 kgf 3430
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1880
Maximum Bending Moment of Input Shaft C4 kgf 2150
Maximum Torque of Input Shaft C5 kgf-m 650
Moment of Inertia of Input Shaft C6 kgf-m² 1.71
Positioning Indexing Accuracy
sec. ±30
Weight
kg 1000
Note 1: Moment of Inertia values
DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
450DA Model
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 4850
Allowable Axial Load of Output Shaft C2 kgf 4160
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 2460
Maximum Bending Moment of Input Shaft C4 kgf 2760
Maximum Torque of Input Shaft C5 kgf-m 860
Moment of Inertia of Input Shaft C6 kgf-m² 7.9
Positioning Indexing Accuracy
sec. ±30
Weight
kg 1600
Note 1: Moment of Inertia values
