Specifications
Delivery Time :
4 DAYS-20 DAYS
Longest lifespan :
60000 hours
Supply Ability :
5000 SET/MONTH
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Warranty :
1year
MOQ :
≥1000 $
Price :
200 $/SET~4500 $/SET
Payment Terms :
T/T
Cam material :
Default 42CrMoAl，Customizable
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Hardness :
50HRC~72HRC ，Customizable
Dimensions :
Customizable
customization :
All non-standard parts
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Brand Name :
HONEPAN
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
Certification :
ISO9001
Place of Origin :
CHINA
Packaging Details :
PLYWOOD BOX
Description
Introduction to Cam Indexer Series

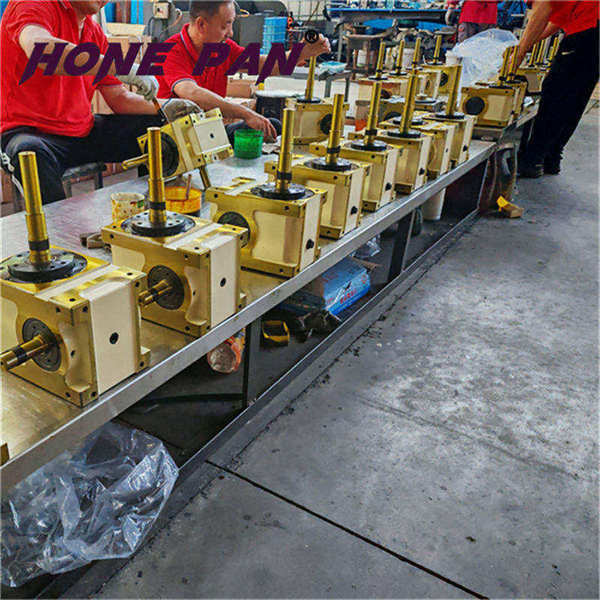

DS Series: Spindle Type

Output: Shaft-driven

Application: Ideal for intermittent conveyor systems using gears, couplings, or coupling discs.

Key Features: Designed for belt-driven transmission with precise start-stop control.

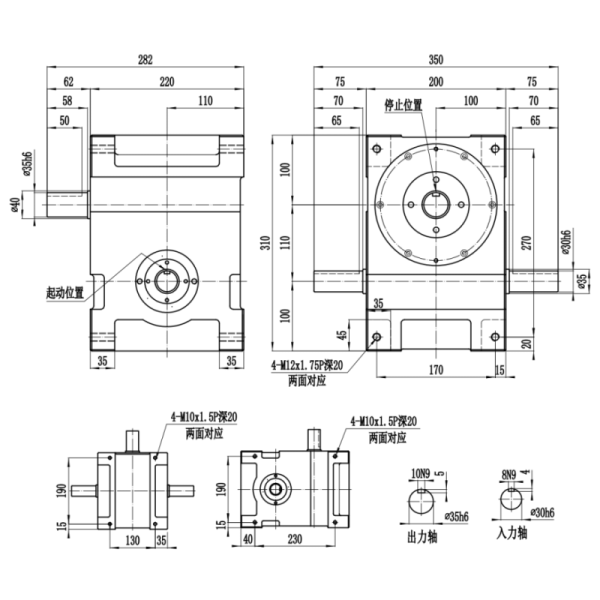

According to the distance between the input shaft and the output shaft, the size of the cabinet, and the size of the load that can be withstood, it can be divided into: 32DS/38DS/45DS/60DS/63DS/70DS/80DS/83DS/100DS/110DS/125DS/140DS/150DS/170DS/180DS/200DS

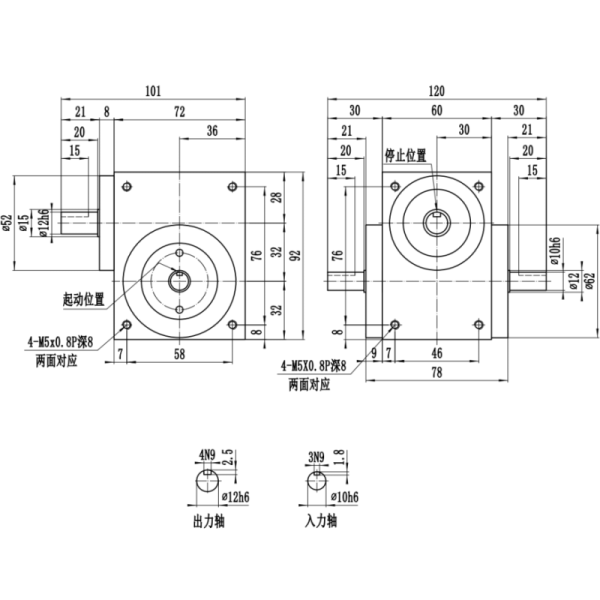

32DS
32DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 19
Allowable Axial Load of Output Shaft C2 kgf 29
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 17
Maximum Bending Moment of Input Shaft C4 kgf 19
Maximum Torque of Input Shaft C5 kgf-m 2.5
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3×10-5
Positioning Indexing Accuracy
sec. ±30
Weight
kg 1.5

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

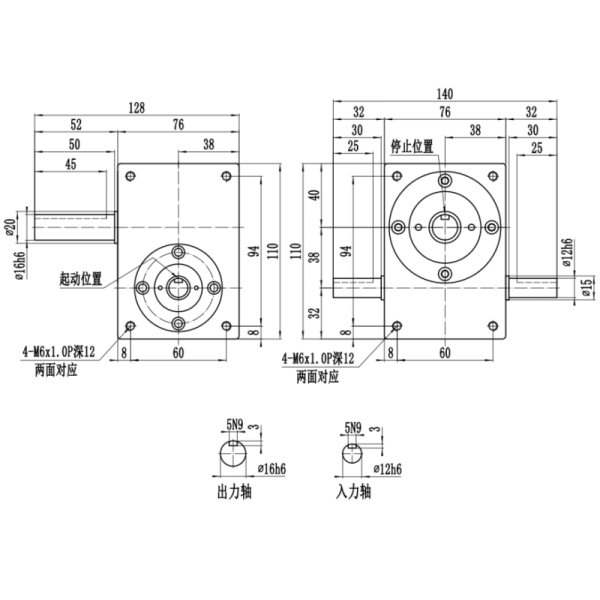

38DS
38DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 39
Allowable Axial Load of Output Shaft C2 kgf 44
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 34
Maximum Bending Moment of Input Shaft C4 kgf 34
Maximum Torque of Input Shaft C5 kgf-m 2.4
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6.6×10-4
Positioning Indexing Accuracy
sec. ±30
Weight
kg 5

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

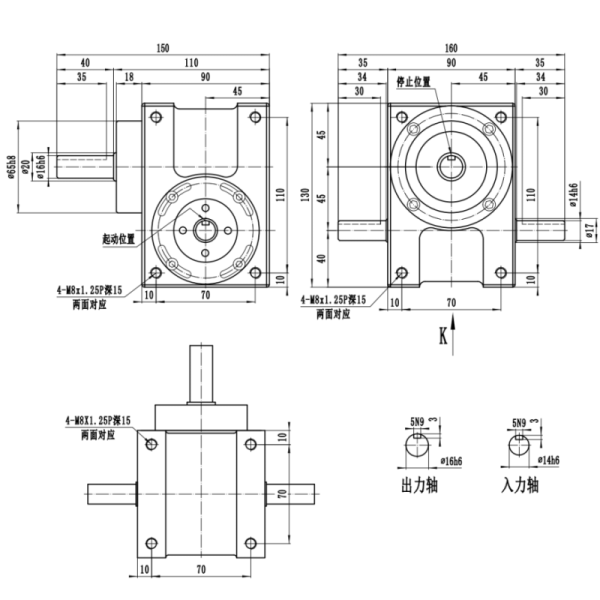

45DS
45DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 78
Allowable Axial Load of Output Shaft C2 kgf 70.5
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 73
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3.2×10-4
Positioning Indexing Accuracy
sec. ±30
Weight
kg 9

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

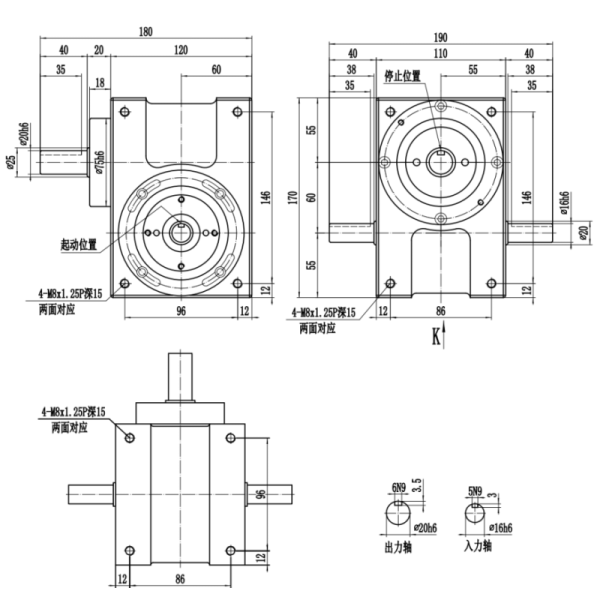

60DS
60DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 78
Allowable Axial Load of Output Shaft C2 kgf 70.5
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 73
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 3.2×10-4
Positioning Indexing Accuracy
sec. ±30
Weight
kg 9

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

63DS
63DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 178
Allowable Axial Load of Output Shaft C2 kgf 148
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 97
Maximum Bending Moment of Input Shaft C4 kgf 93
Maximum Torque of Input Shaft C5 kgf-m 6
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 1.9×10-3
Positioning Indexing Accuracy
sec. ±30
Weight
kg 17

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

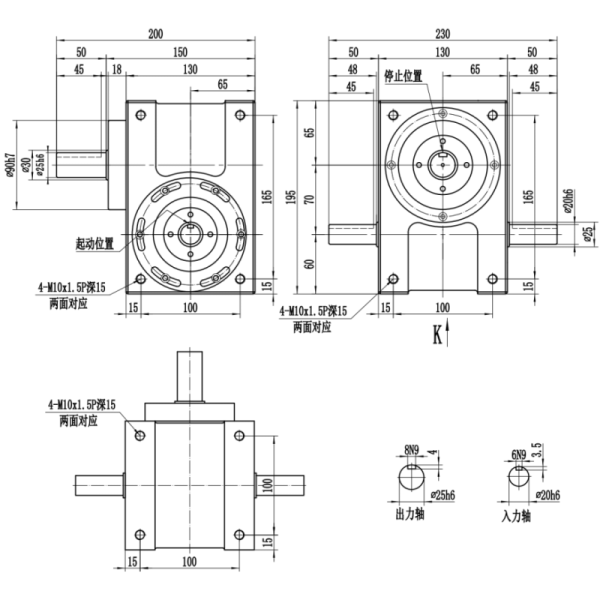

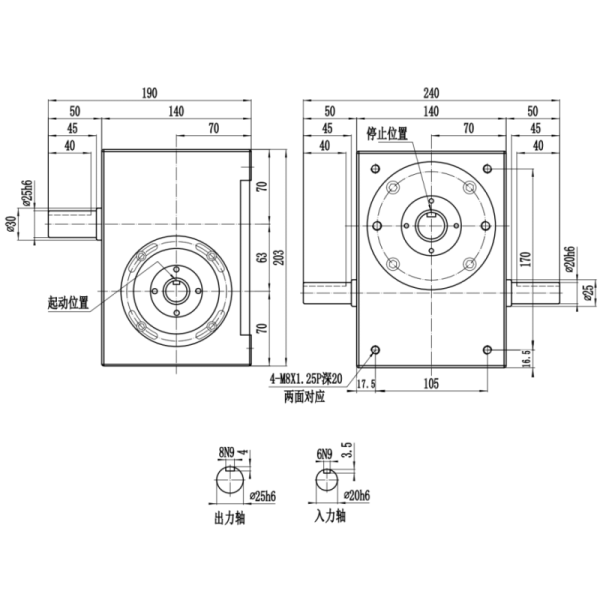

70DS
70DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 215
Allowable Axial Load of Output Shaft C2 kgf 217
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 146
Maximum Bending Moment of Input Shaft C4 kgf 106
Maximum Torque of Input Shaft C5 kgf-m 9
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 6×10-3
Positioning Indexing Accuracy
sec. ±30
Weight
kg 20

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

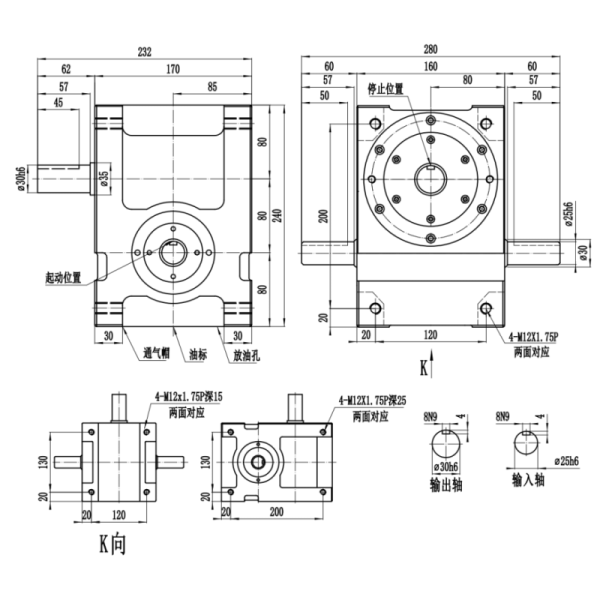

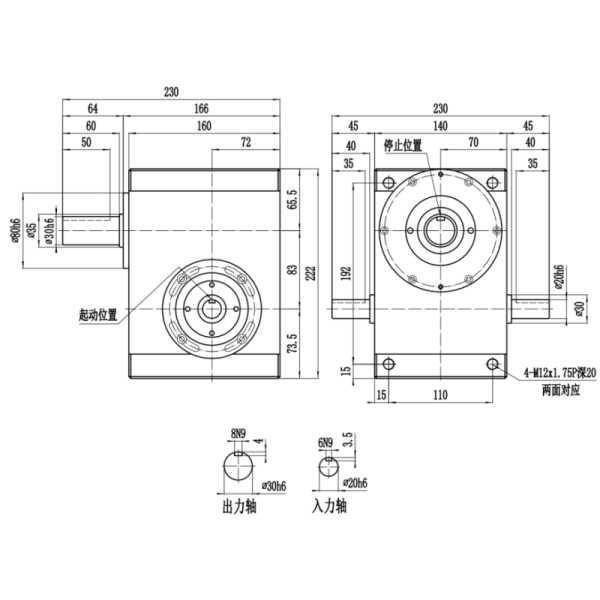

80DS
80DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 327
Allowable Axial Load of Output Shaft C2 kgf 417
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy
sec. ±30
Weight
kg 35

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

83DS
83DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 325
Allowable Axial Load of Output Shaft C2 kgf 415
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 9×10-3
Positioning Indexing Accuracy
sec. ±30
Weight
kg 28

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

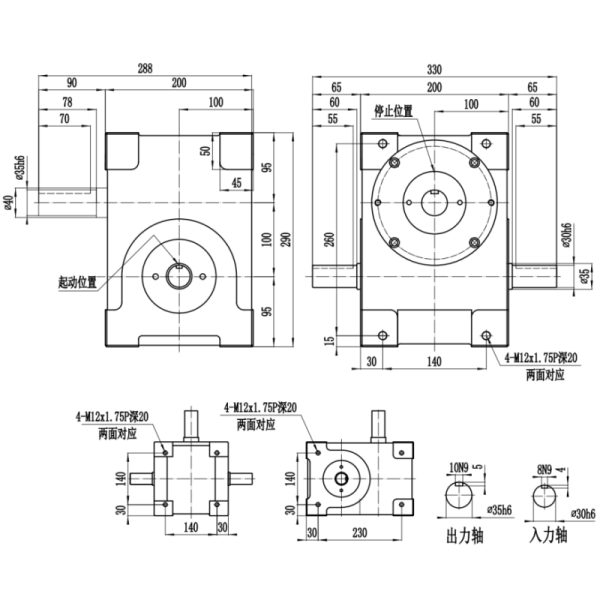

100DS
100DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 395
Allowable Axial Load of Output Shaft C2 kgf 445
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 295
Maximum Bending Moment of Input Shaft C4 kgf 215
Maximum Torque of Input Shaft C5 kgf-m 25
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 4×10-3
Positioning Indexing Accuracy
sec. ±30
Weight
kg 54

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

110DS
110DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 494
Allowable Axial Load of Output Shaft C2 kgf 544
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 355
Maximum Bending Moment of Input Shaft C4 kgf 285
Maximum Torque of Input Shaft C5 kgf-m 31
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 2.8×10-2
Positioning Indexing Accuracy
sec. ±30
Weight
kg 67

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

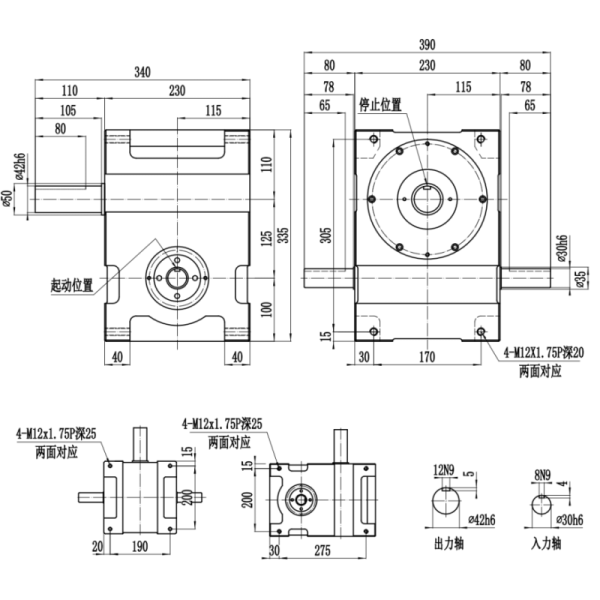

125DS
125DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 600
Allowable Axial Load of Output Shaft C2 kgf 690
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 390
Maximum Bending Moment of Input Shaft C4 kgf 410
Maximum Torque of Input Shaft C5 kgf-m 50
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.092
Positioning Indexing Accuracy
sec. ±30
Weight
kg 78

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

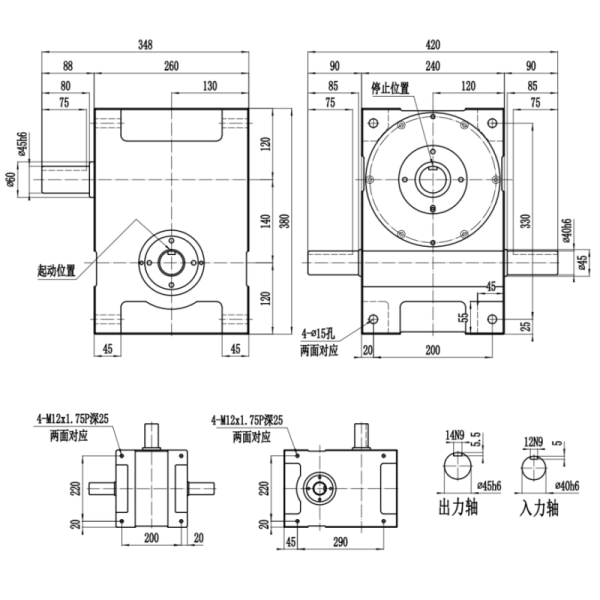

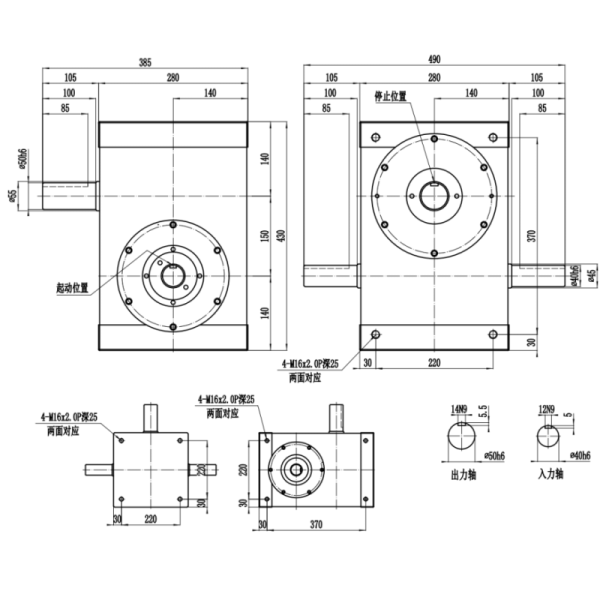

140DS
140DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 720
Allowable Axial Load of Output Shaft C2 kgf 850
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 430
Maximum Bending Moment of Input Shaft C4 kgf 550
Maximum Torque of Input Shaft C5 kgf-m 74
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy
sec. ±30
Weight
kg 92

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

150DS
150DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 730
Allowable Axial Load of Output Shaft C2 kgf 860
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 440
Maximum Bending Moment of Input Shaft C4 kgf 560
Maximum Torque of Input Shaft C5 kgf-m 75
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.11
Positioning Indexing Accuracy
sec. ±30
Weight
kg 96

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

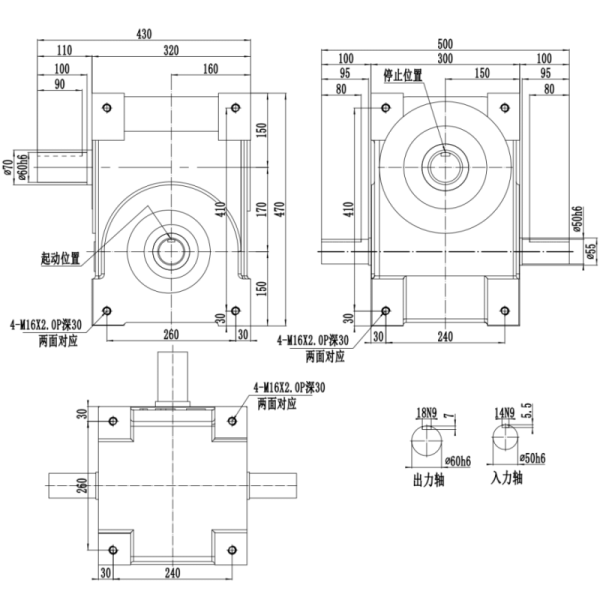

170DS
170DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 990
Allowable Axial Load of Output Shaft C2 kgf 1290
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 480
Maximum Bending Moment of Input Shaft C4 kgf 940
Maximum Torque of Input Shaft C5 kgf-m 130
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy
sec. ±30
Weight
kg 200

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

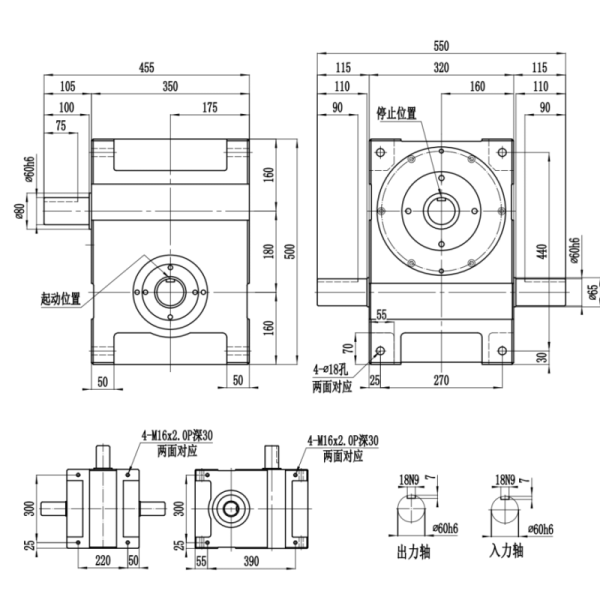

180DS
180DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1190
Allowable Axial Load of Output Shaft C2 kgf 1490
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 580
Maximum Bending Moment of Input Shaft C4 kgf 1040
Maximum Torque of Input Shaft C5 kgf-m 145
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy
sec. ±30
Weight
kg 230

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

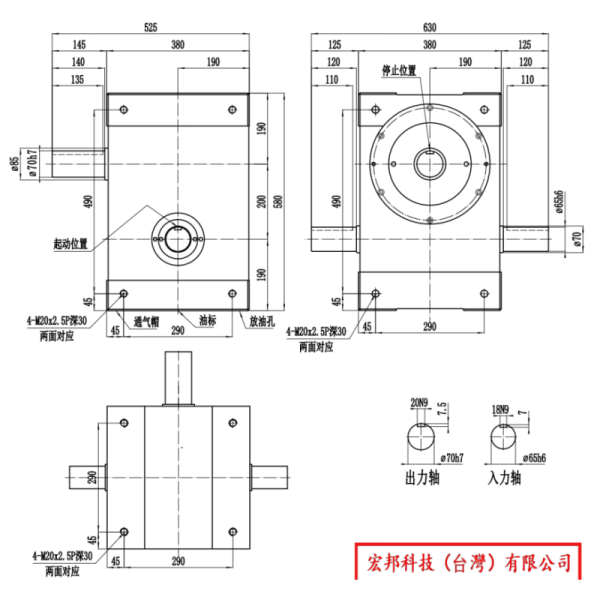

200DS
200DS
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1200
Allowable Axial Load of Output Shaft C2 kgf 1500
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 590
Maximum Bending Moment of Input Shaft C4 kgf 1045
Maximum Torque of Input Shaft C5 kgf-m 147
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m2 0.39
Positioning Indexing Accuracy
sec. ±30
Weight
kg 240

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

Send your message to this supplier
Send Now

DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

Ask Latest Price
Product Detail
Delivery Time :
4 DAYS-20 DAYS
Longest lifespan :
60000 hours
Supply Ability :
5000 SET/MONTH
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Warranty :
1year
MOQ :
≥1000 $
Contact Supplier
DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission
DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission
DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission
DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission

Zhucheng HONEPAN Automation Machinery Factory

Verified Supplier
1 Years
shandong
Since 2007.01
Business Type :
Manufacturer, Seller
Main Products :
Cam Indexers, Cam Indexing Drive, Programmable Rotary Indexer
Total Annual :
70000000-130000000
Employee Number :
120~180
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Programmable Rotary Indexer
MachineU China Products Machinery Welding Equipment Welding Positioner
Contact Supplier
Submit Requirement
