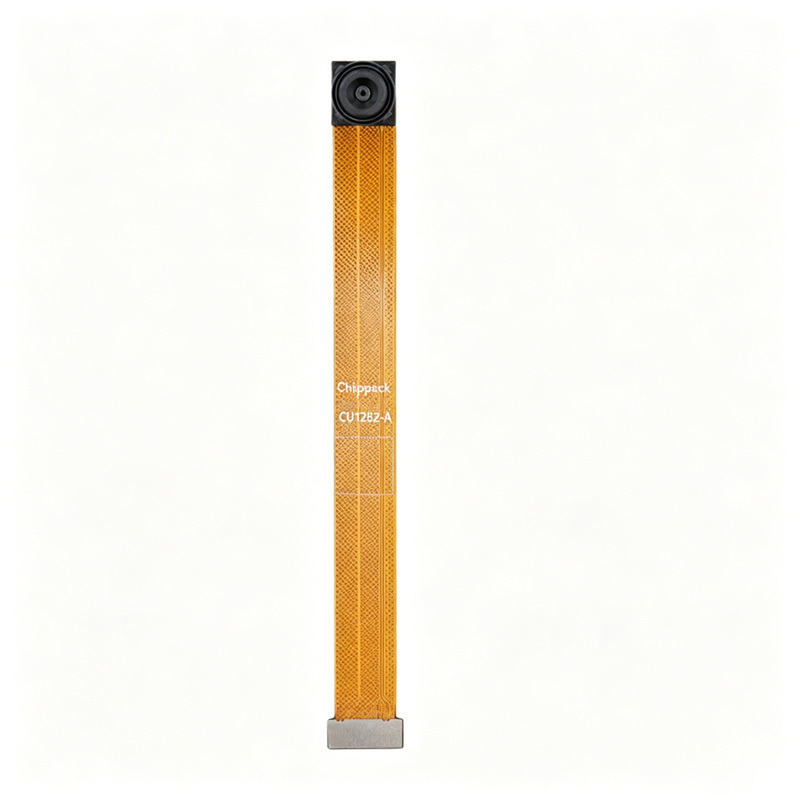

1.53 MP MONO Global 49.4 - Degree View Shutter Camera Module VD56G3 Sensor For Machine Vision

1. Basic Parameters:

‑ Resolution: 1124 (H) × 1346 (V), 1.53MP. It delivers clear imaging quality to meet the imaging requirements of various visual inspection scenarios.

‑ Pixel Size: 2.61μm (H) × 2.61μm. Adopting advanced pixel technology, it greatly improves the sensor’s light‑sensing capability and light intake, effectively optimizes imaging performance under low‑light conditions, and ensures high signal‑to‑noise ratio and image sharpness.

‑ Optical Format: 1/4‑inch. It occupies minimal device space and suits the integrated installation requirements of various miniaturized and lightweight smart devices.

‑ Supply Voltage: Core voltage 1.15V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under diverse voltage conditions and guarantee sensor reliability.

‑ Temperature Range: Operating temperature ranges from ‑30℃ to 85℃. With a wide operating temperature range, it adapts to various working environments.

2. Technical Features:

‑ Global Shutter Technology: Equipped with high‑performance global shutter technology, it enables synchronous exposure for the entire frame, completely eliminating motion smear, image distortion and illumination artifacts caused by rolling shutter. It supports high‑definition imaging up to 88fps, and can output clear and distortion‑free images even in high‑speed motion scenarios, making it ideal for applications such as dynamic capture and high‑speed inspection. Meanwhile, it reduces power consumption of auxiliary device lighting for better energy efficiency.

‑ Built‑in rich functions including auto‑exposure, defect correction, multi‑scenario parameter configuration and multi‑channel stroboscopic control. It supports calculation of up to 2000 optical flow vectors per frame and 60fps optical flow imaging. Accurate object detection and trajectory tracking can be achieved under high‑frame‑rate mode. It is compatible with various machine vision and intelligent perception algorithms with strong expandability.

‑ VD56G3 Camera Module: Compatible with standard modules with different lens configurations such as 49.4° to satisfy diverse customer requirements.

3. Application Fields:

Applied in virtual reality / augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Customization Services:

Custom modules can be produced according to customer requirements to deliver tailor‑made products that match clients’ specific needs.
