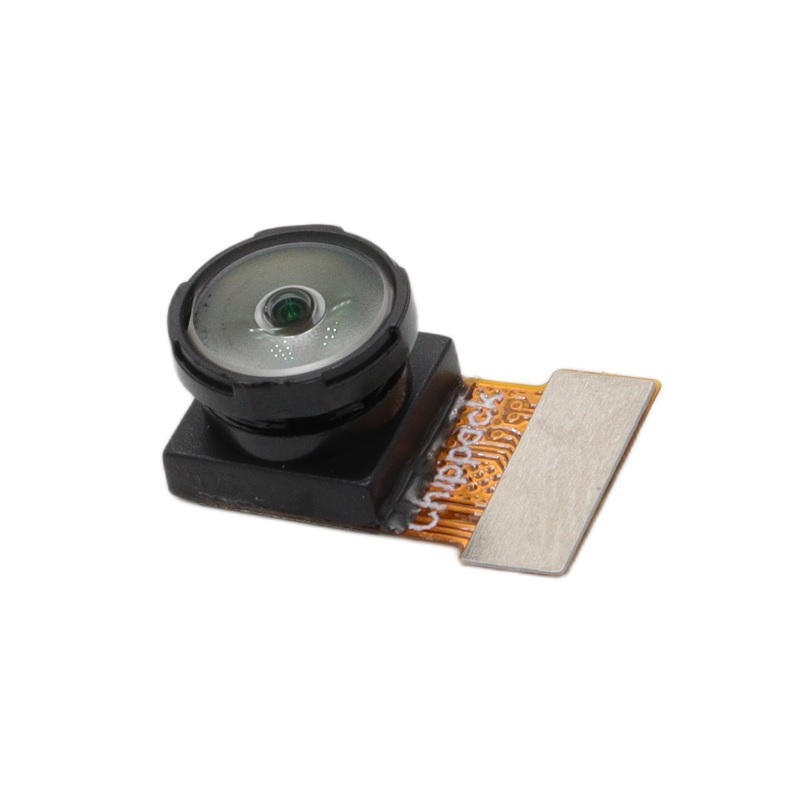

0.56 MP MONO Global Shutter 179.6 Perspective MIPI Camera Module With VD55G4 Sensor

1. Basic Parameters:

‑ Resolution: 804 (H) × 704 (V), 0.56MP. It supports two operating modes: high‑speed snapshot and conventional imaging, delivering stable image quality and excellent detail reproduction.

‑ Pixel Size: 2.16μm (H) × 2.16μm (V), with a pixel array diagonal of 2.3 mm. Featuring a compact form factor, it meets integration and mounting requirements for a wide range of miniaturized and compact devices.

‑ Optical Format: 1/9‑inch. Optimized for the 940 nm near‑infrared band, it offers high quantum efficiency and outstanding light‑sensing performance under low‑light and nighttime conditions, suited for vision imaging scenarios with active infrared supplementary lighting.

‑ Supply Voltage: Core voltage 1.1 V, interface voltage 1.8 V, analog voltage 2.8 V. It operates stably under various voltage conditions to ensure sensor reliability.

‑ Temperature Range: Operating temperature ranges from ‑30℃ to 85℃. Its broad operating‑temperature range enables adaptation to diverse working environments.

2. Technical Features:

‑ Global Shutter Technology: The global‑shutter design effectively eliminates motion blur and illumination artifacts while lowering power consumption requirements for lighting.

‑ Equipped with ST BrightSense ultra‑low‑power technology, it supports always‑on vision mode. Power consumption under conventional imaging conditions is drastically reduced to one‑tenth that of traditional comparable sensors, fitting end‑device scenarios requiring low power consumption and long battery life.

‑ Built‑in ultra‑high dynamic range of 68 dB. Integrated image‑processing algorithms include automatic exposure, intelligent noise reduction, pixel defect correction, and multi‑exposure fusion. High‑quality imaging can be achieved without an external image‑processing chip, simplifying hardware design and cutting development costs. It boasts remarkable near‑infrared light sensitivity, excellent noise control in low‑light conditions, and high image clarity. Clear images can be captured without intense supplementary lighting, offering strong light adaptability for various complex‑lighting working conditions.

‑ VD55G4 Camera Module: Compatible with standard modules with different lens configurations such as 179.6°, to satisfy diverse customer requirements.

3. Application Fields:

Applied in virtual reality / augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Customization Services:

Custom modules can be produced according to customer requirements to deliver tailor‑made products matching customers’ needs.
