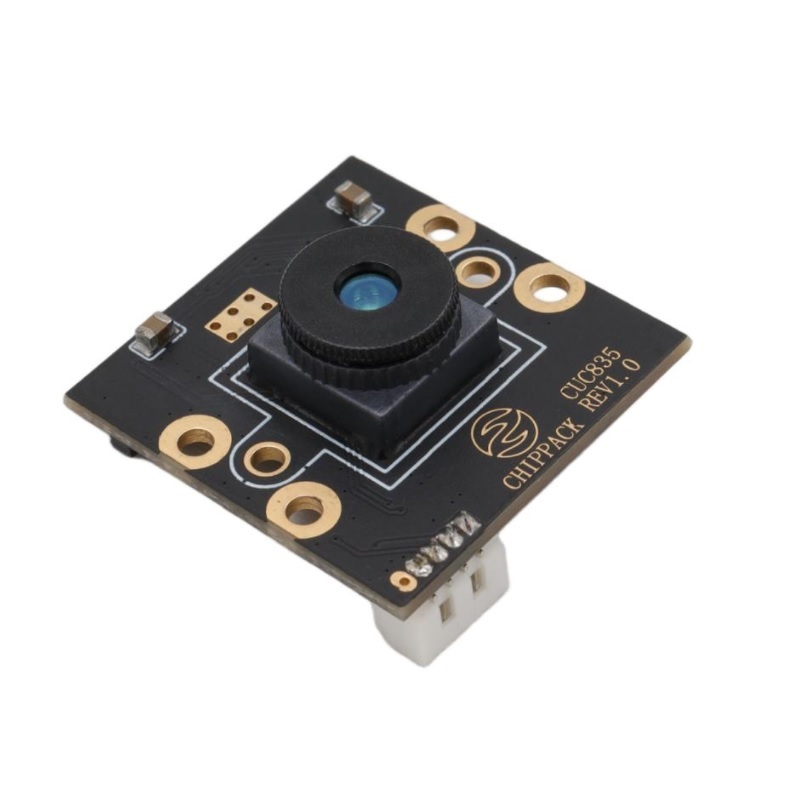

OV OV2710 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1920 (H) × 1080 (V), 2MP, compatible with multiple resolutions to ensure smooth output of high-definition video.

- Pixel Size: 3.0μm (H) × 3.0μm (V). Adopting OmniVision's proprietary OmniPixel®3-HS high-sensitivity pixel technology, this pixel size effectively increases light intake and optimizes imaging performance in low-light environments.

- Optical Format: 1/2.7-inch. The compact design meets the installation requirements of various small devices, balancing imaging performance and equipment miniaturization, and is widely used in various compact camera modules.

- Supply Voltage: Core voltage 1.5V, interface voltage 1.8V, analog voltage 3.3V. It can operate stably under different voltage conditions, ensuring the reliability of the sensor.

- Temperature Range: Operating temperature from -30℃ to 85℃. With a wide operating temperature range, it can adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting a progressive-exposure rolling shutter design, it features low imaging noise, fine detail restoration, high circuit integration, and optimized power consumption and cost, making it suitable for high-definition imaging in static and low-speed scenarios.

- Equipped with OmniPixel®3-HS high-sensitivity pixel technology, achieving a low-light sensitivity of up to 3700mv/lux·sec, a signal-to-noise ratio (S/N) of 40dB, and a peak dynamic range of 69dB. It can capture clear images in dim environments as low as 0.5lux, stably outputting high-quality images from strong daylight to near-total darkness (below 15lux), effectively reducing noise and image distortion, and enhancing imaging quality in complex lighting scenarios.

- Adopting proprietary sensor technology to effectively reduce or eliminate image interference caused by common lighting and electrical factors such as fixed pattern noise and smearing, producing clear and stable color images. Built-in one-time programmable (OTP) memory further improves operational stability and consistency, supporting long-term continuous operation and reducing equipment failure rates.

- OV2710 Camera Module: Compatible with standard modules configured with different lenses including 75° ones to meet diverse customer needs.

3. Application Fields:

Applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Service:

Custom modules can be manufactured in accordance with customer requirements, providing tailor-made products that meet their specific needs.
