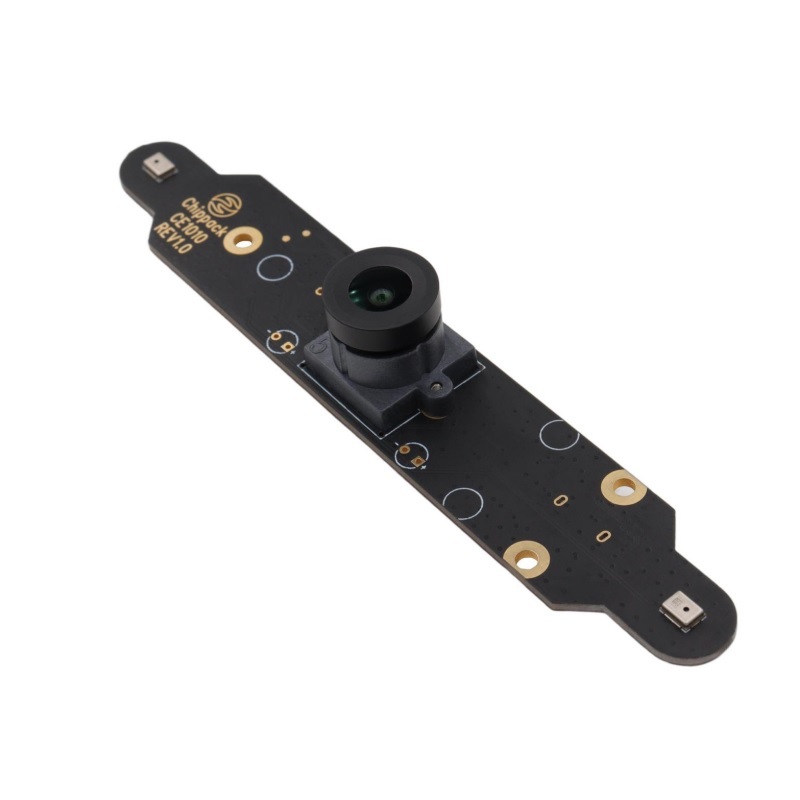

8.3MP RGB Rolling Shutter 96 Perspective USB 2.0 Camera Module With IMX415 Sensor , Customization Services Available .

1.Basic Parameters:

- Resolution: 3840 (H) × 2160 (V), 8.29 MP; compatible with mainstream resolutions for backward compatibility, meeting both high-definition imaging and multi-frame-rate output requirements.
- Pixel dimensions: 1.45 μm (H) × 1.45 μm (V), effectively enhancing light intake per pixel while balancing image resolution with low-light sensitivity.
- Optical format: 1/2.8-inch, compact and lightweight, designed for integration with miniaturized camera modules.
- Power supply voltage: The operating voltage is 5V, ensuring stable performance under appropriate voltage conditions and guaranteeing sensor reliability.

- Temperature range: The operating temperature spans from-20°C to 50°C, offering a wide temperature range that accommodates various working environments.

2.Technical Features:

- Curtain shutter technology: Featuring a line-by-line exposure curtain shutter design, it delivers low imaging noise and fine detail reproduction, with high circuit integration, optimized power consumption and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.
- Utilizing Sony's proprietary second-generation Exmor R back-illuminated CMOS technology, it eliminates the drawback of traditional front-illuminated sensors where circuitry obstructs the light-sensitive surface, significantly enhancing visible and near-infrared light absorption. Paired with STARVIS starlight night vision technology, it delivers clear, noise-free images even in extremely low-light conditions (0.1 lux). When combined with an infrared fill light, it enables all-weather surveillance in complete darkness, delivering exceptional imaging performance in low-light environments. The ultra-low dark current design prevents optical smear issues, ensuring pristine images when capturing moving subjects and maintaining exceptional image clarity during high-speed motion.
- Integrates core algorithms for bad pixel correction, lens shadow correction, and automatic white balance, delivering high-quality raw images without requiring external complex image processing chips. This simplifies backend circuit design and reduces overall development costs and timeframes.
- IMX415 Camera Module: Compatible with various lens configuration standards including 96mm, meeting diverse customer requirements.

3. Application Areas:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Services:

The modular design enables tailored production based on client specifications, delivering products precisely aligned with their needs.
