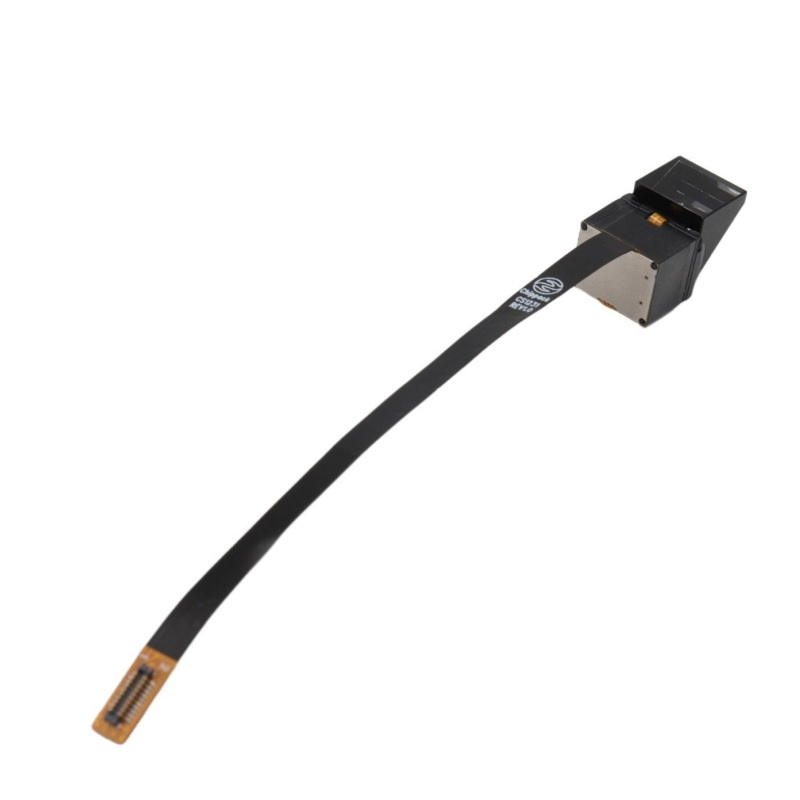

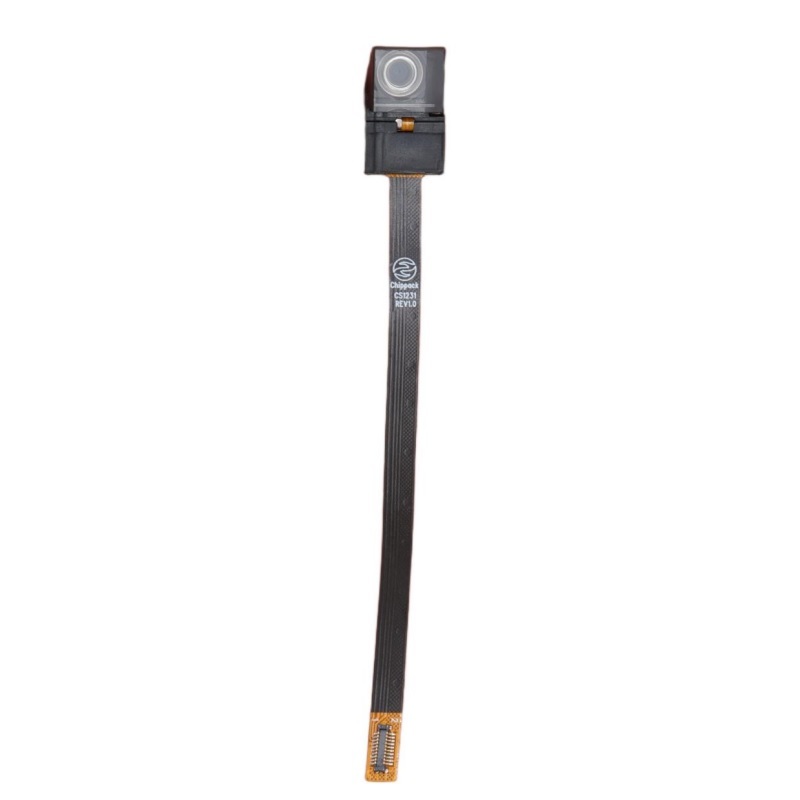

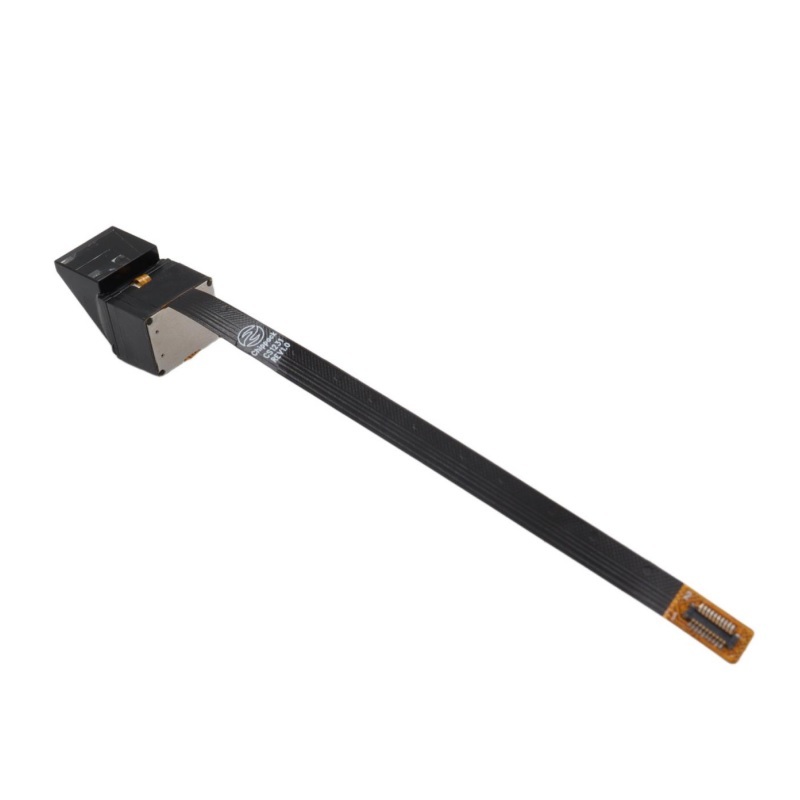

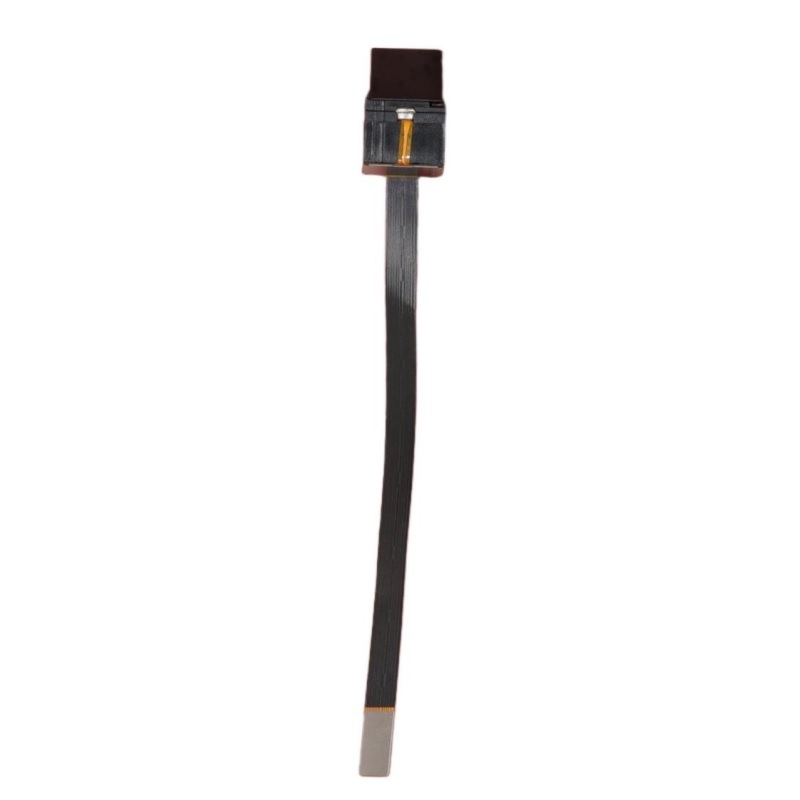

OV OV9732 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1280 (H) × 720 (V), 0.92MP. It supports high-definition video capture, stably outputs clear images, and meets mainstream high-definition imaging requirements.

- Pixel Size: 3.0µm (H) × 3.0µm (V). Adopting OmniPixel®3-HS high-sensitivity pixel technology, it effectively enhances light capture capability and optimizes imaging performance in high and low light environments.

- Optical Format: 1/4 inch. Featuring a miniaturized optical design, it is suitable for installation in compact devices and easy to integrate into space-limited products.

- Supply Voltage: Core voltage 1.8V, interface voltage 1.8V, analog voltage 3.3V. It can operate stably under various voltage conditions and ensure sensor reliability.

- Temperature Range: Operating temperature ranges from -30℃ to 70℃. With a wide operating temperature range, it can adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopts a progressive exposure rolling shutter design with low imaging noise and delicate detail restoration. It features high circuit integration, lower power consumption and cost, making it ideal for high-definition imaging in static and low-speed scenarios.

- Equipped with OmniPixel®3-HS high-sensitivity 3μm pixel technology and backside illumination process, it achieves a sensitivity of 2.066V/lux-sec, a dynamic range of 72dB and a signal-to-noise ratio of 39dB. It delivers excellent scene restoration in extremely low light and strong light conditions, effectively reduces noise, improves image purity, and satisfies clear imaging demands in low-light scenarios.

- The low-power and highly integrated design enables easy integration into wireless battery-powered devices and miniature smart terminals, greatly improving device battery life and portability. Meanwhile, it features a chief ray angle (CRA) of 9°, compatible with consumer-grade optical lens systems to reduce image artifacts and improve image quality. It supports a clock frequency of 6 to 27MHz, which can be flexibly adjusted according to application needs to meet different transmission rate requirements.

- OV9732 Camera Module: Compatible with standard modules with different lens specifications such as 45° to meet diverse customer needs.

3. Application Fields:

It is widely applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced on demand to tailor exclusive products that fully meet customers' personalized requirements.
