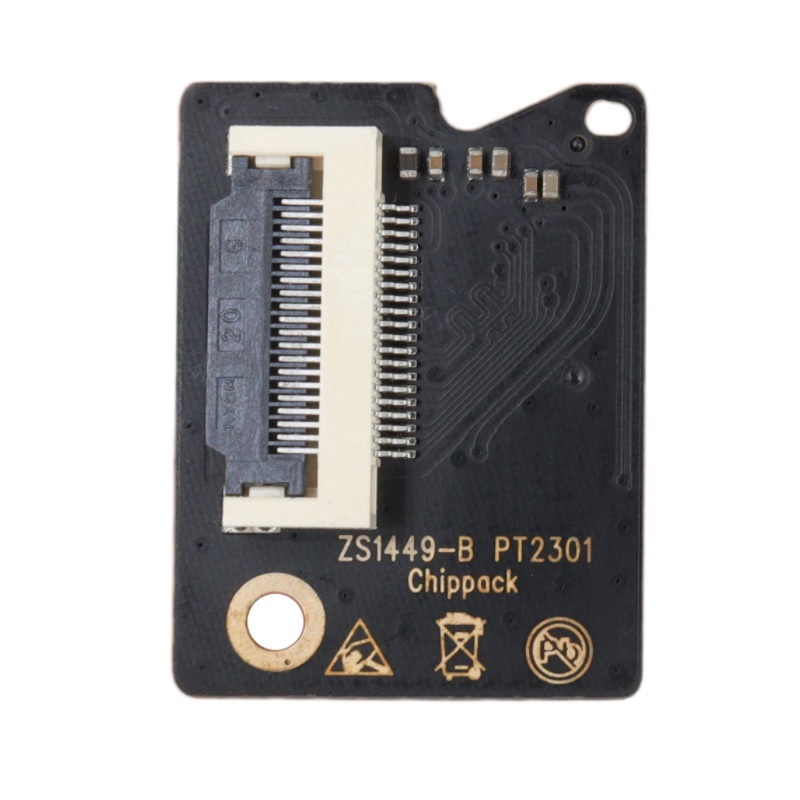

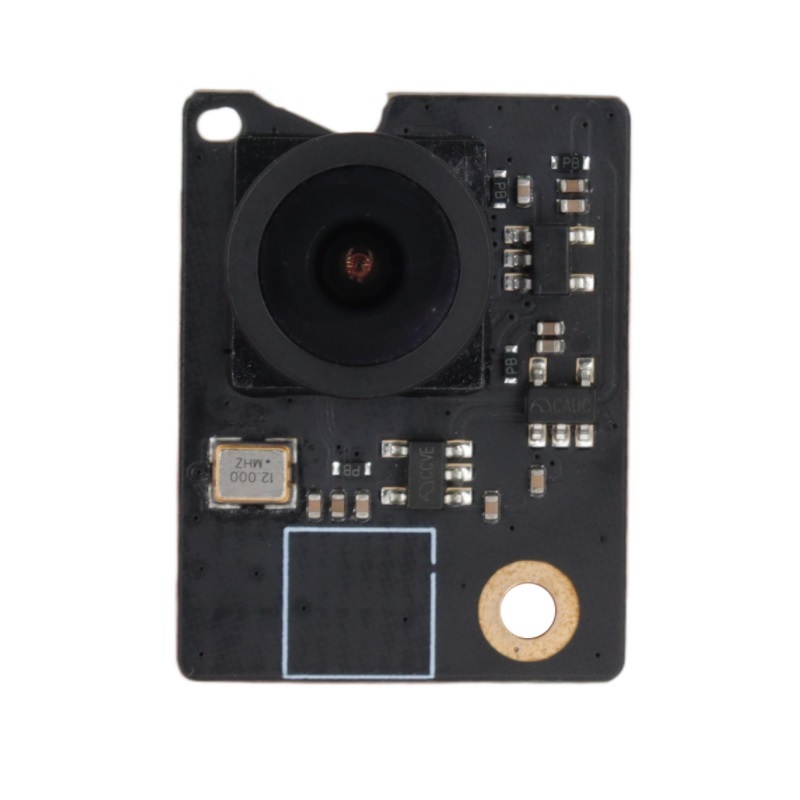

SC SC2331 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1920(H)×1080(V), 2MP. It supports high-definition image output and meets various high-definition imaging requirements.

- Pixel Size: 2.45μm(H)×2.45μm(V). Equipped with optimized pixel technology, it effectively increases light intake and improves image quality, preserving more image details especially in low-light environments.

- Optical Format: 1/3.2 inch. Featuring strong compatibility, it can be flexibly matched with various lenses to satisfy installation and imaging needs of different scenarios.

- Supply Voltage: Core voltage 1.2V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under various voltage conditions and ensure sensor reliability.

- Temperature Range: Operating temperature ranges from -30℃ to 85℃. The wide operating temperature range enables adaptation to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopts a progressive exposure rolling shutter design with low imaging noise and delicate detail restoration. It features high circuit integration, lower power consumption and cost, ideal for high-definition imaging in static and low-speed scenarios.

- It integrates upgraded DSI-2 technology and Pro series core technologies, combined with SFC Pixel® technology and ultra-low noise readout circuit. It greatly enhances low-light imaging performance and noise suppression capability, delivering clear and pure images even in dim environments. Meanwhile, optimized color processing technology improves color reproduction for authentic and delicate color presentation.

- Features Pin-to-Pin compatible design, enabling seamless upgrade of full-level products, reducing the cost and difficulty of product upgrading and improving iteration efficiency. It adopts 35pin CSP packaging with a compact size of only 5.36mm×3.35mm. The miniature form factor facilitates integration into various miniaturized devices, saves internal space, and fits the design demands of miniaturized and lightweight products.

- SC2331 Camera Module: Compatible with standard modules with different lens configurations such as 137°, to meet diversified customer demands.

3. Application Fields:

Widely applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced tailor-made according to customer requirements, delivering personalized products that fully meet customized demands.
