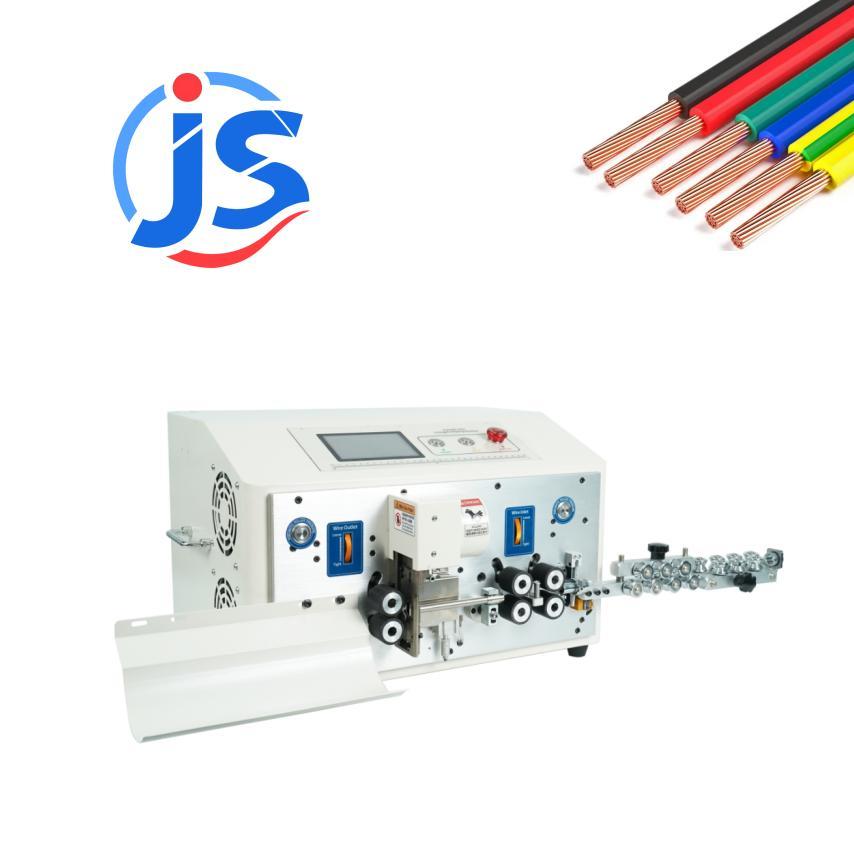

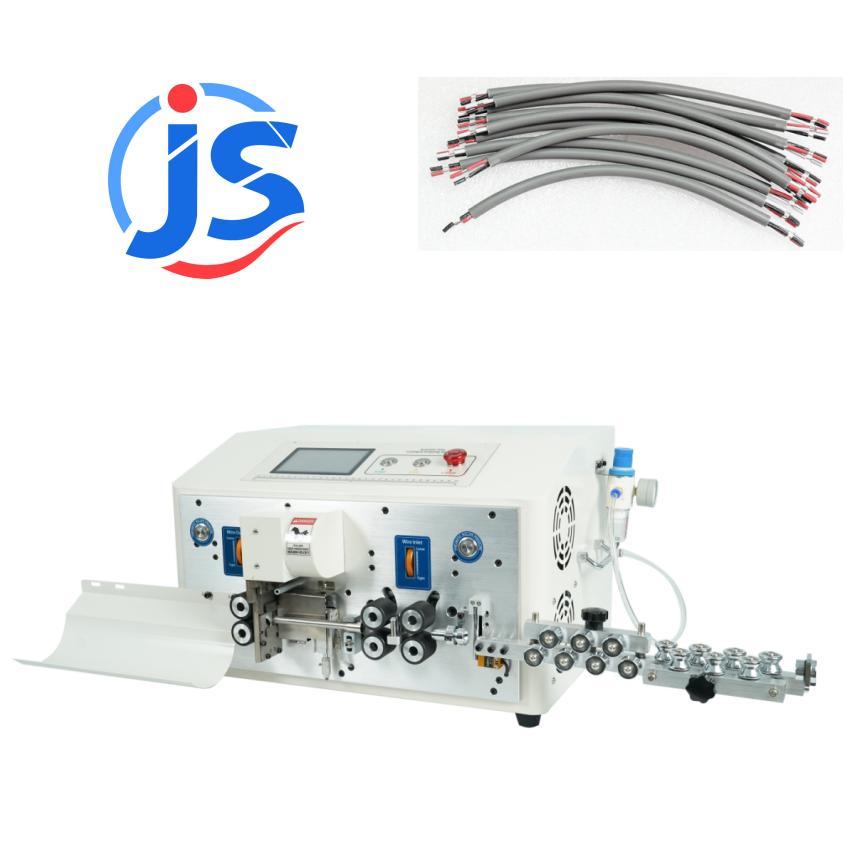

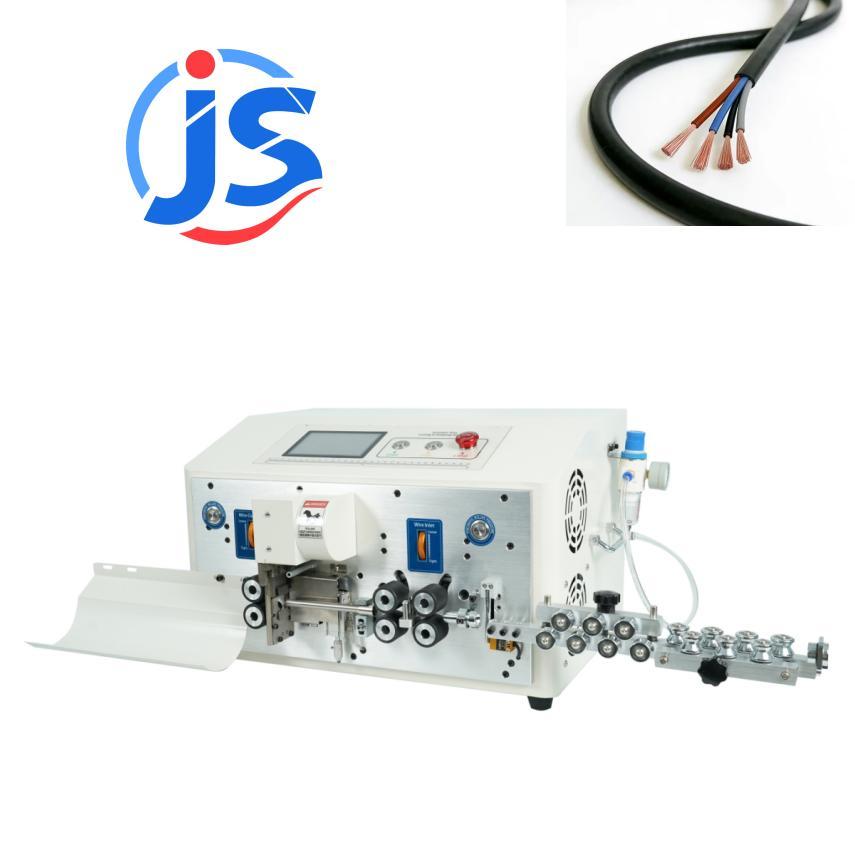

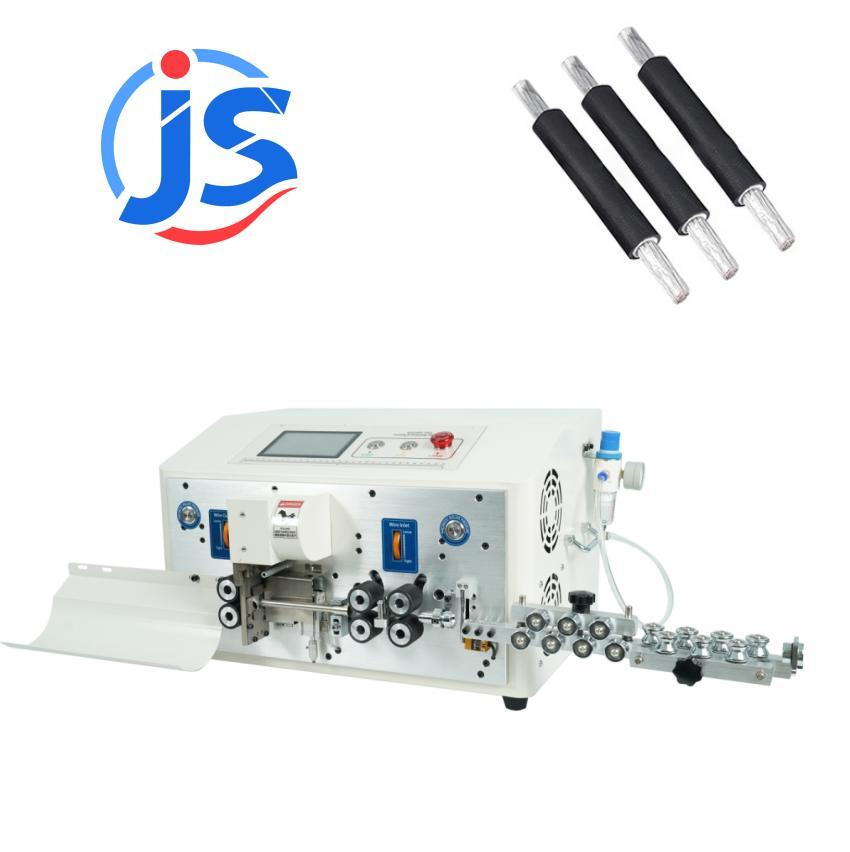

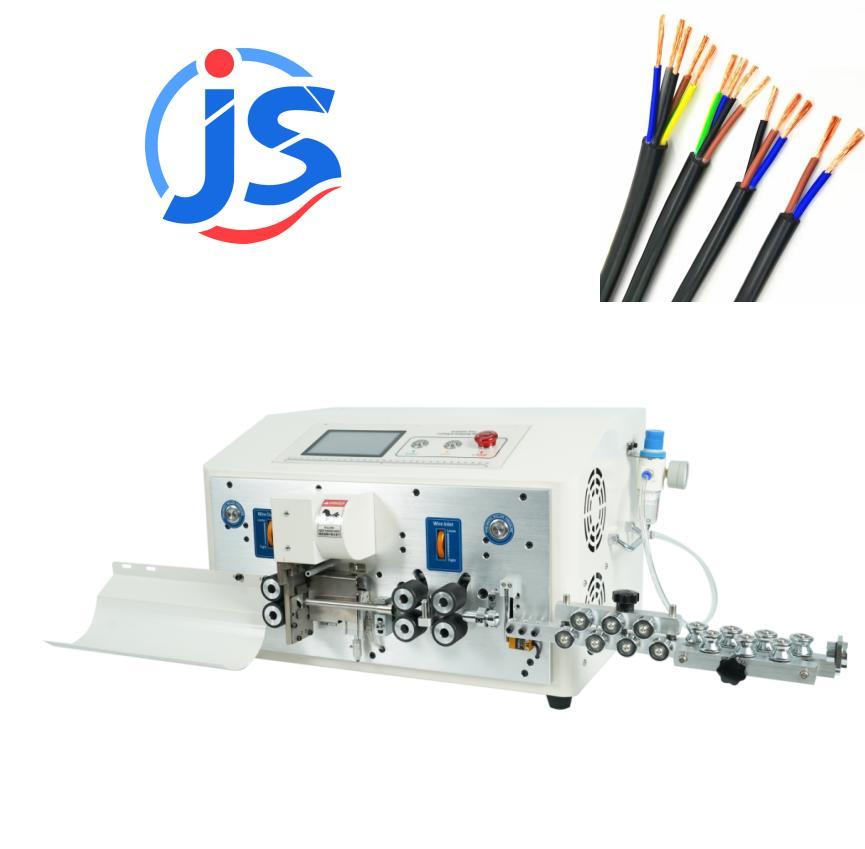

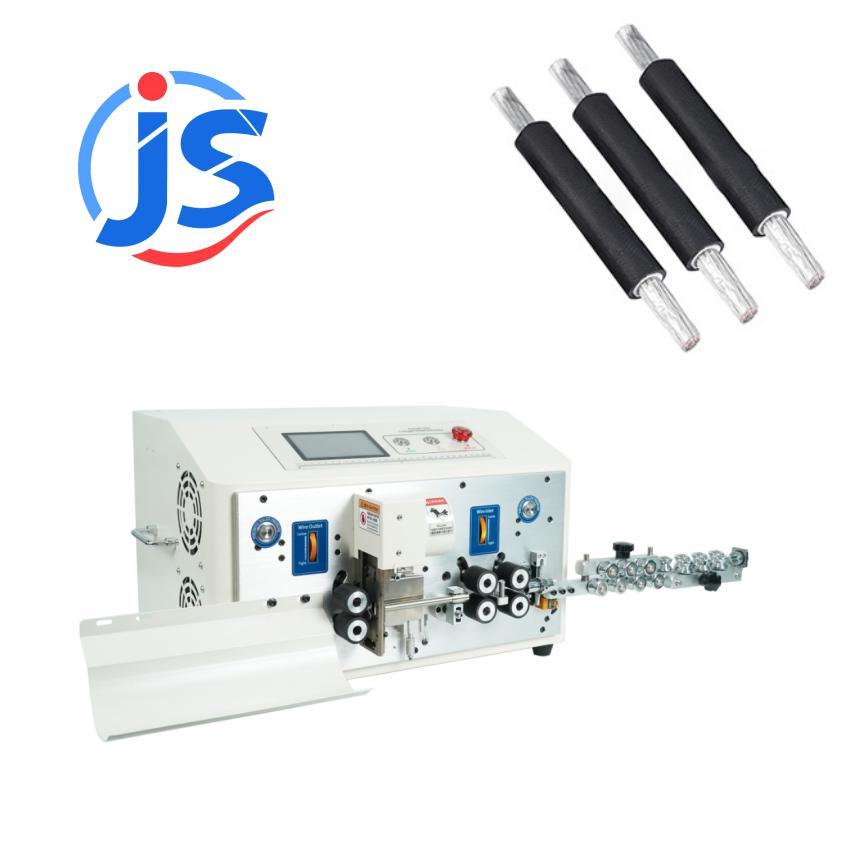

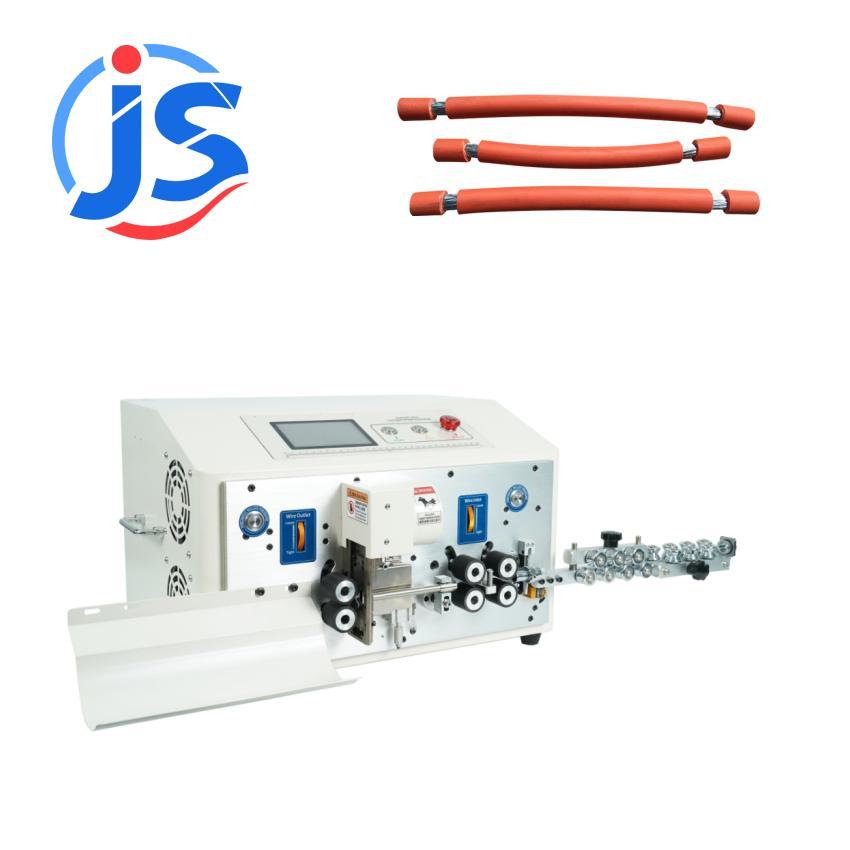

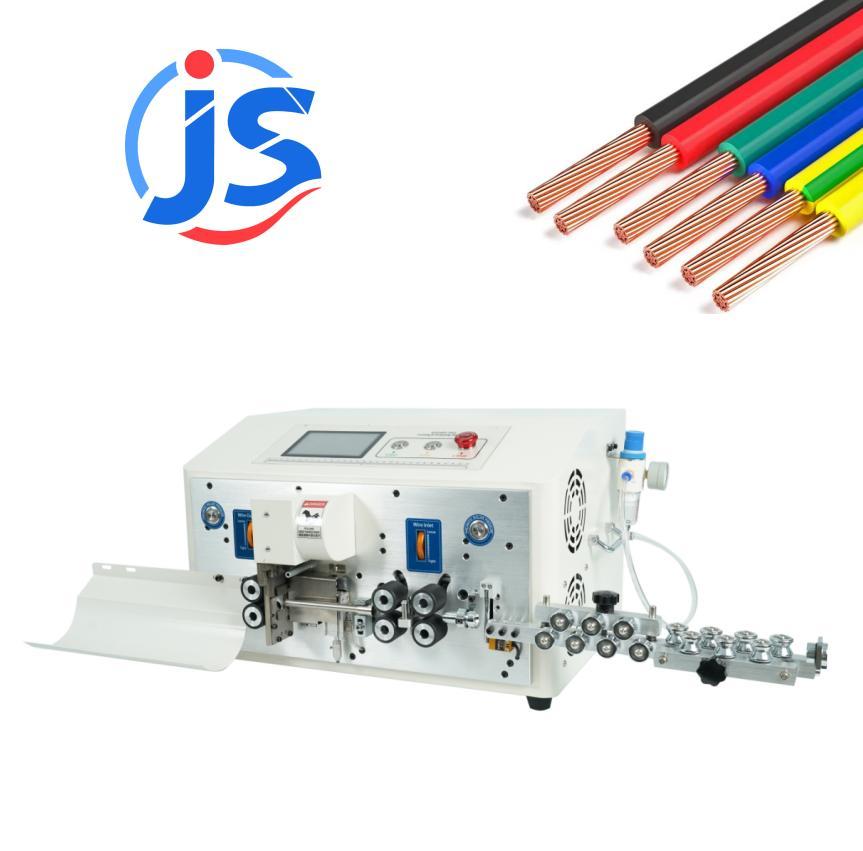

Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Specifications
Model Number :
HR-SH10MM6
Power :
550W
PLC Screen Size :
1.5-inch
MOQ :
1
Delivery Time :
Within 5 Working Days
Wire Length Range :
1～9999mm
Blade Material :
High Speed Steel
Wire Spe :
￠2-10mm (Round sheath wire)
Price :
1400
Max Conduit Inside Diameter :
￠11mm
Outer Front Strip Length :
1-210mm
Outer Rare Strip Length :
1-100mm
Packaging Details :
Carton
Machine Size :
56*46*37cm
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Inner Core Cable Number :
2 cores, 3 cores, 4 cores,5cores
Inner Core Rare Strip :
1-20mm
Output :
1000-1200pcs/hour
Supply Ability :
200
Length Accuracy :
± (0.002xL)mm
Voltage :
220V
Max Inner Strip Length :
20mm
Certification :
CE /ISO
Display :
5 Inch PLC Screen
Place of Origin :
China
Inner Core Front Strip :
1-20mm
Wire Types :
PVC, Teflon, Braided, Fiberglass
Brand Name :
JunSheng
Weight :
45KG
Max Outer Strip Length :
210mm
Description
Fully Automatic Wire Harness Cable Cut Machine with 5 Inch PLC Screen, 1000-1200pcs/hour Output, and High Speed Steel Blade
Product Specifications
Download Technical Specifications (Excel)
  • 1.5-inch PLC touch screen control with precise length tolerance, adjustable cutting and peeling parameters
  • Multi core wires 2/3/4/5, the outer sheath wire can be stripped 210mm at the front end and 100mm at the back end, while the inner sheath wire can be stripped 20mm at both the front and back ends
  • Low power reduces energy consumption and can process 1200 cables per hour
  • Can handle wire PVC, Teflon, Braided, Fiberglass wire
  • The tungsten steel blade achieves clean and complete stripping of the hard wire insulation, and the solid copper core is free of deformation or scratches
Exhibition
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Package And Shipping
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
Fully Automatic Cable Stripping Machine 550W Automatic Cable Cutting Machine 220V
