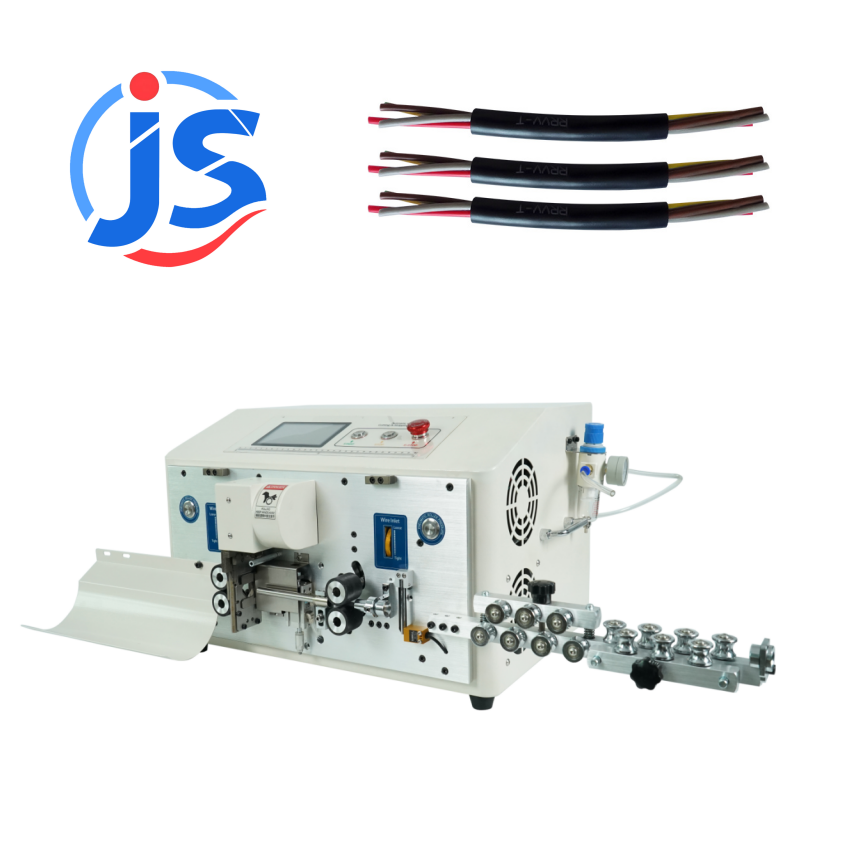

Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Automatic Cable Stripper with 5 Inch PLC Screen for 1000-1200pcs/hour and High Speed Steel Blade
Specifications
Model Number :
HR-SH9MM4
Weight :
40KG
Blade Type :
Tungsten steel
Packaging Details :
Carton
Outer Rare Strip Length :
1-100mm
MOQ :
1
Delivery Time :
Within 5 Working Days
Machine Size :
56*46*37cm
Voltage :
220V
Wire Types :
PVC, Teflon, Braided, Fiberglass wire
Price :
1050
Wire Length Range :
1～9999mm
Max Conduit Inside Diameter :
￠10mm
Blade Material :
High Speed Steel
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Power :
350W
Display :
5 Inch PLC Screen
Inner Strip Length :
20mm
Supply Ability :
200
Inner Core Cable Number :
2 cores, 3 cores, 4 cores,5cores
Length Accuracy :
± (0.002xL)mm
Screen Type :
PLC touch screen
Certification :
CE /ISO
Output :
1000-1200pcs/hour
Place of Origin :
China
Outer Front Strip Length :
1-150mm
Processing Speed :
1200 cables/hour
Brand Name :
JunSheng
Wire Spe :
￠2-9mm (Round sheath wire)
Core Condition :
Solid copper core
Description
Clean Cut Robot Wire Harness Wire Cut Machine For OD 2-9mm
Download Technical Specifications (HR-SH9MM4.xlsx)
Key Features
  • 1.5-inch PLC touch screen control with precise length tolerance and adjustable cutting and peeling parameters
  • Multi-core wire processing capability with simultaneous inner and outer sheath peeling
  • Outer sheath wire: 150mm front end and 100mm back end peeling capacity
  • Inner sheath wire: 20mm front and back end peeling capacity
  • Low power consumption design with processing capacity of 1200 cables per hour
  • Compatible with various wire types: PVC, Teflon, Braided, and Fiberglass wires
  • Tungsten steel blades ensure clean, complete stripping of hard wire insulation
  • Solid copper core remains free of deformation or scratches during processing
