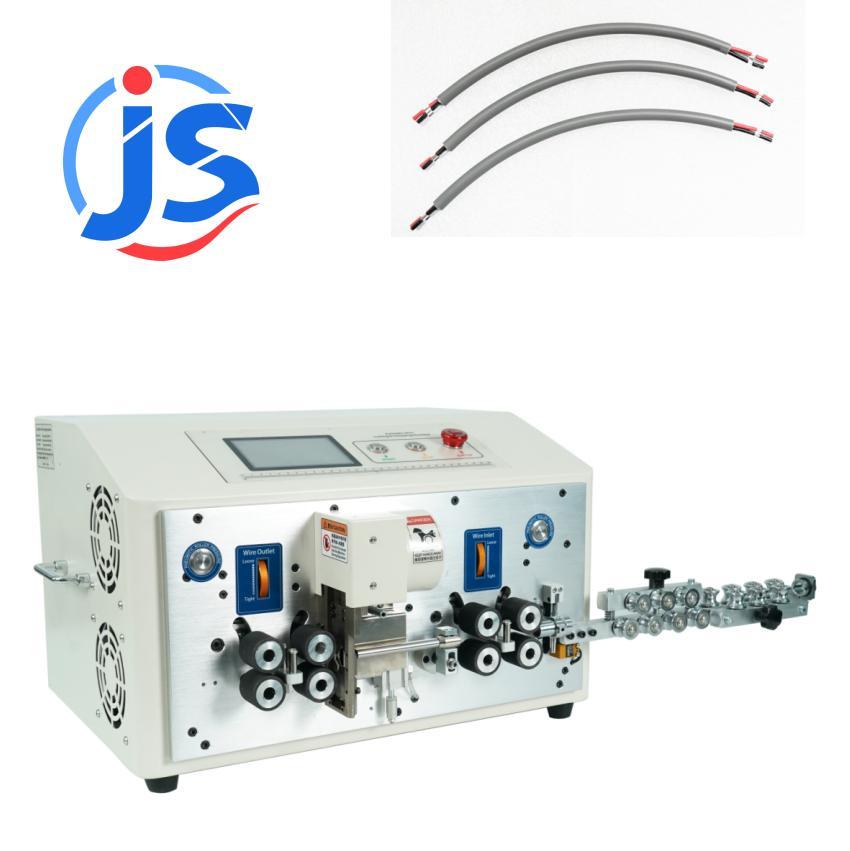

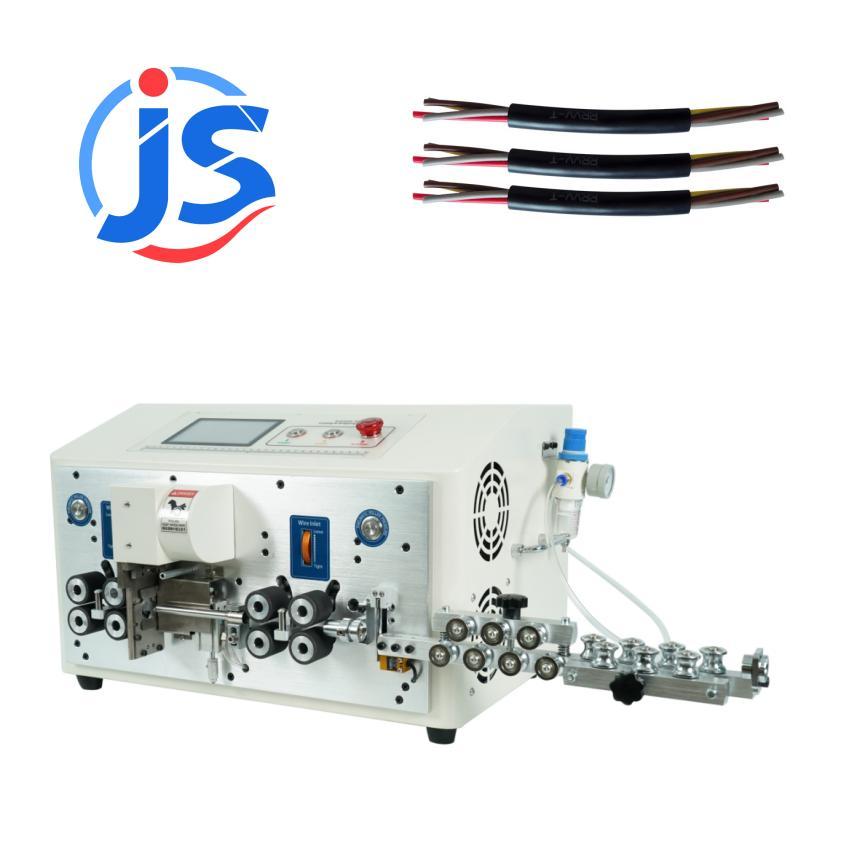

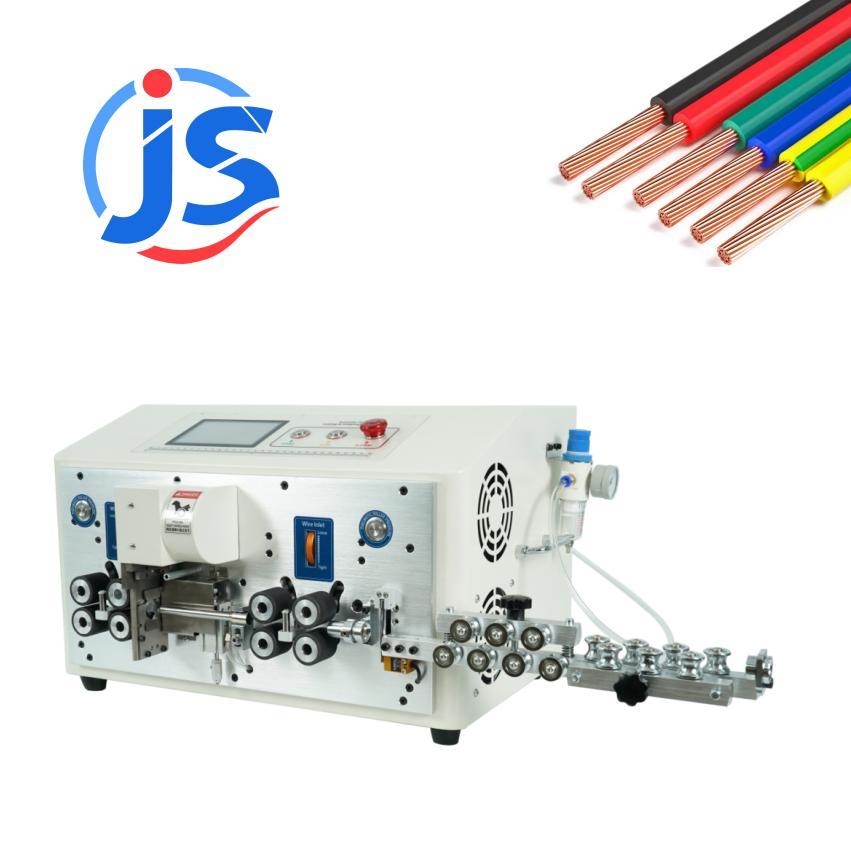

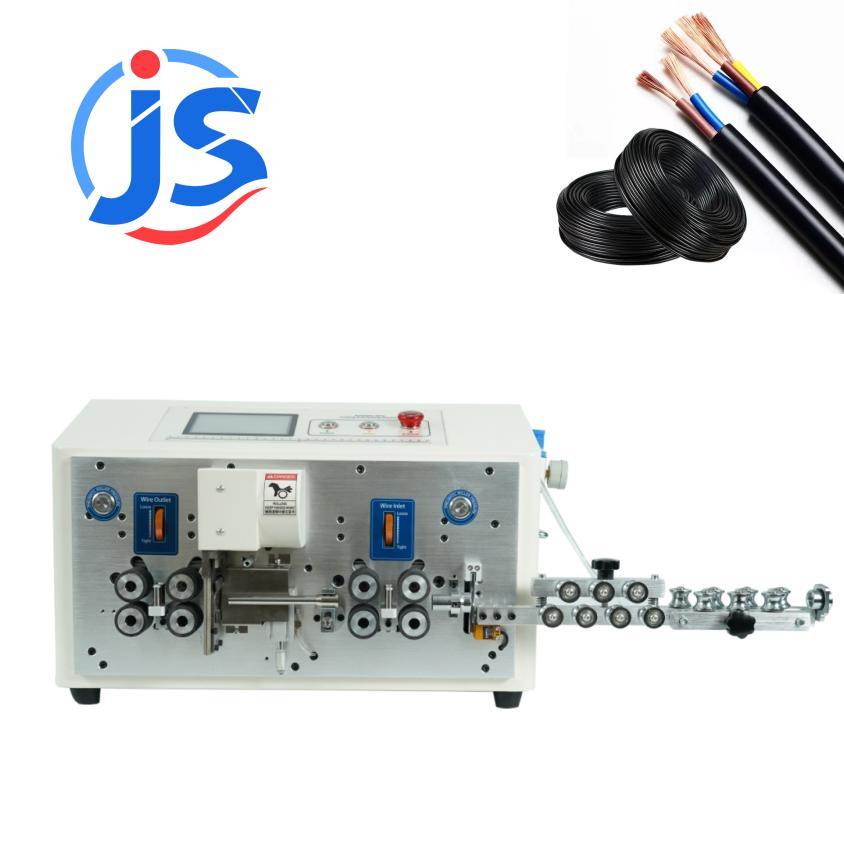

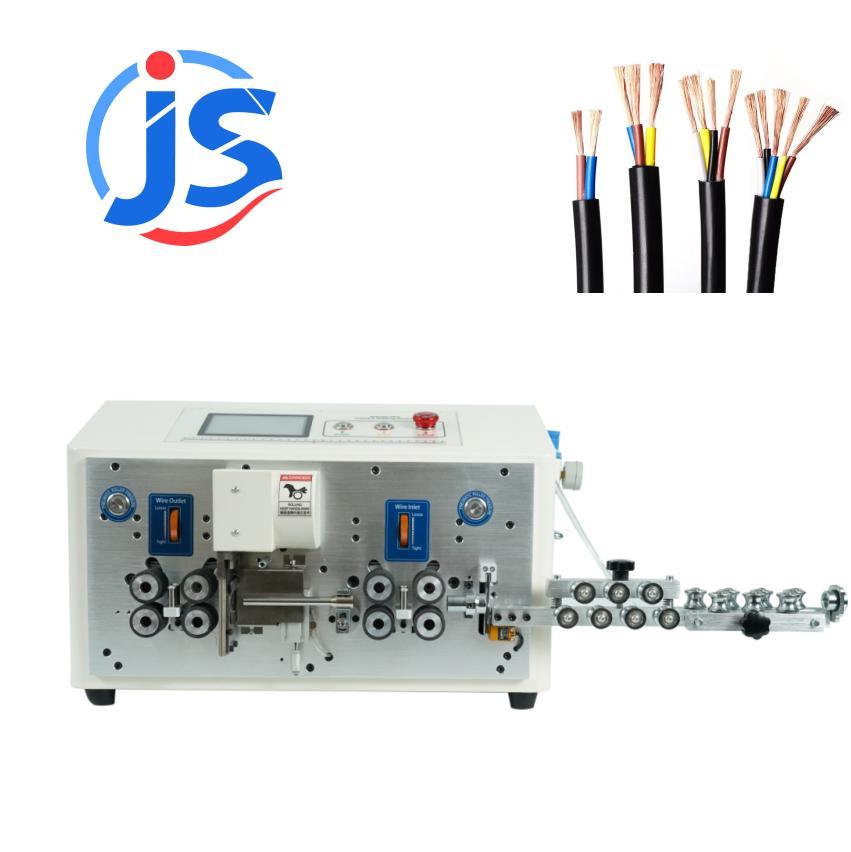

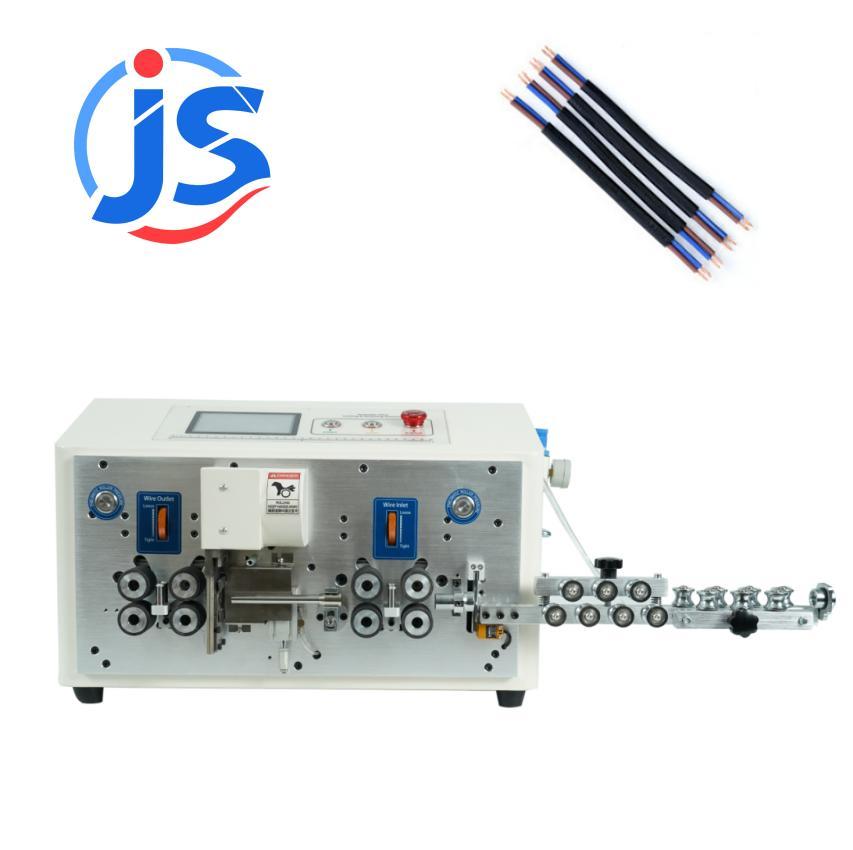

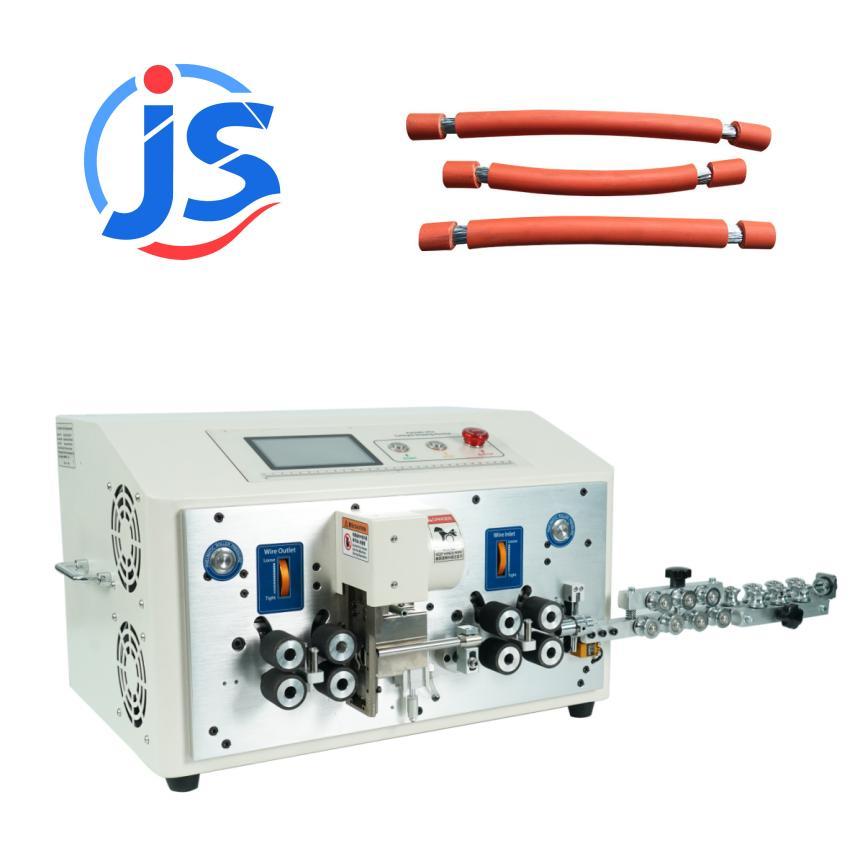

Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Specifications
Model Number :
HR-SH10MM8
Inner Core Cable Number :
2 cores, 3 cores, 4 cores,5cores
Outer Front Strip Length :
1-210mm
MOQ :
1
Delivery Time :
Within 5 Working Days
Inner Core Front Strip :
1-20mm
Display :
5 Inch PLC Screen
Inner Core Rare Strip :
1-20mm
Price :
1630
Wire Spe :
￠2-11mm (Round sheath wire)
Voltage :
220V
Machine Size :
56*46*37cm
Packaging Details :
Carton
Max Conduit Inside Diameter :
￠11mm
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Power :
650W
Blade Material :
High Speed Steel
Length Accuracy :
± (0.002xL)mm
Supply Ability :
200
Wire Length Range :
1～9999mm
Output :
1000-1200pcs/hour
Brand Name :
JunSheng
Name :
Automatic Cable Stripping Machine
Certification :
CE /ISO
Outer Rare Strip Length :
1-110mm
Place of Origin :
China
Weight :
45KG
Description
Automatic Cable Stripper Machine Wire Cutter and Stripper Machine With 5 Inch PLC Screen
Download Technical Specifications (HR-SH10MM8.xlsx)
  • 1.5-inch PLC touch screen control with precise length tolerance and adjustable cutting and peeling parameters
  • Multi-core wires 2/3/4/5 capability - outer sheath wire can be stripped 210mm at front end and 100mm at back end, while inner sheath wire can be stripped 20mm at both ends
  • Low power consumption reduces energy usage while processing up to 1200 cables per hour
  • Compatible with various wire types including PVC, Teflon, Braided, and Fiberglass wires
  • Tungsten steel blades ensure clean, complete stripping of hard wire insulation without deformation or scratches to solid copper cores
Exhibition
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
Package And Shipping
Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine Low Power Automatic Cable Stripping Machine 650W Wire Cutter and Stripper Machine
