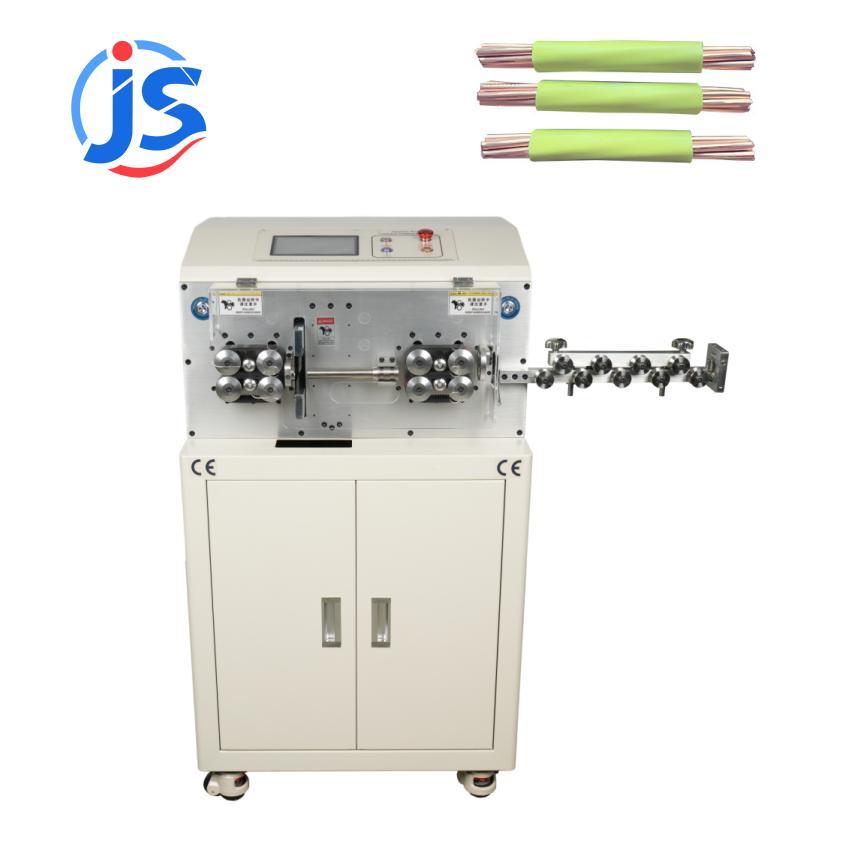

CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
CE / ISO Certified Automatic Cable Stripping Machine Automotive Wire Stripping Equipment
Specifications
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Machine Size :
68*60*118cm
Round Rare Strip :
1-150mm
Feeding Device :
8 wheel
Supply Ability :
200
Memory Capacity :
200pcs program
Driving Mode :
8-Wheel Belt Drive
Model Number :
HR-ST95SV
Cutting Length :
1-99999mm
Control Type :
PLC touch screen
MOQ :
1
Delivery Time :
Within 5 Working Days
Weight :
130KG
Blade Material :
High Speed Steel
Blade Type :
Tungsten Steel
Price :
2850
Output :
3000-3500pcs/hour
Display :
7 Inch PLC Screen
Power :
3000W
Packaging Details :
Wooden Box
Voltage :
220V
Parameter Settings :
Adjustable
Certification :
CE /ISO
Round Sheath Strip :
1-200mm
Place of Origin :
China
BV Front Strip :
1-100mm
Stored Programs :
200 sets
Brand Name :
JunSheng
BV Cable Strip :
1-100mm
Length Tolerance :
Precise
Description
CE ISO Certified Automotive Wire Harness Cable Cut Machine with 8-Wheel Belt Drive High Speed Steel Blade and 7 Inch PLC Screen
Download Product Specifications (29-HR-ST95SV.xlsx)
Key Features
  • Specially customized for BV hard wire with 8-wheel feeding device ensuring stable feeding, preventing wire bending and sliding during cutting and peeling processes
  • High rigidity tungsten steel blades provide clean full stripping of hard wire insulation without deformation or scratches on solid copper core
  • PLC touch screen control with precise length tolerance, adjustable cutting and peeling parameters, capable of storing 200 sets of parameter settings
