35kV High Voltage Fiberglass Electroscope Effective Insulated 1100mm
35kV High Voltage Fiberglass Electroscope Effective Insulated 1100mm
35kV High Voltage Fiberglass Electroscope Effective Insulated 1100mm
35kV High Voltage Fiberglass Electroscope Effective Insulated 1100mm
Specifications
Brand Name :
SHENGHONG
Model Number :
WDQ-4
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
5pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50pc/day
Delivery Time :
10 days after payment
Packaging Details :
carton
Product Name :
High Voltage Fiberglass Electroscope
Retracted length(mm) :
480
Extended length(mm) :
1500
Effective insulated :
1100
Telescopic rod insulation section quantities :
5
Weight(g) :
500
Description

35kV High Voltage Fiberglass Electroscope Effective Insulated 1100mm

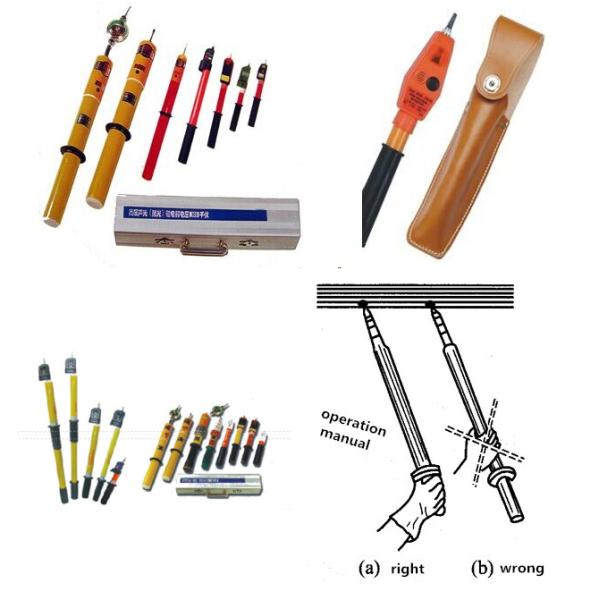

High Voltage Electroscope, integrated the advantages of various traditional electroscope. The lines and advanced and practical features. Field operation with acousto-optic alarm, safe and reliable. It can detect high voltage line and equipment Whether there is the power frequency voltage. It is used for testing 0.1 KV-750 KV lines or equipment whether running with power frequency voltage, ensure the personal safety.

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.


Specifications
1.High pressure electroscope ;Stable performance; High Quality;
2.Easy to operate; Safe and reliable;
3.Sound and light alarm;ensure work safety;

Data Sheet

Technical Data of High Voltage Electroscope
Model WDQ-1 WDQ-2 WDQ-3 WDQ-4 WDQ-5 WDQ-6 WDQ-7 WDQ-8
Rate Voltage(kV) 0-4 3-10 28 35 66 110 220 330
Retracted length(mm) 170 380 1200 480 580 580 780 1320
Extended length(mm) 900 1000 5000 1500 2000 2000 3100 6000
Effective insulated 700 700 4200 1100 1440 1440 2440 5200
The length of the handle(mm) 100 130 800 200 400 400 500 800
Telescopic rod insulation section quantities 7 5 5 5 5 5 5 5
Weight(g) 115 270 1700 500 600 600 1000 2000
Note We can customize according to customer's requirements

35kV High Voltage Fiberglass Electroscope Effective Insulated 1100mm
