SZ2B-13 13T Balancing Head Board Running Board For Two Bundle Conductor
SZ2B-13 13T Balancing Head Board Running Board For Two Bundle Conductor
SZ2B-13 13T Balancing Head Board Running Board For Two Bundle Conductor
SZ2B-13 13T Balancing Head Board Running Board For Two Bundle Conductor
Specifications
Brand Name :
SHENGHONG
Model Number :
SZ2B-13
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1pc
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5pcs/day
Delivery Time :
15 days after payment
Packaging Details :
export package
Name :
Balancing Head Board Running Board
Load Capacity :
13T
Applicable stringing block sheave width(mm) :
110
Weight(kg) :
55
Feature :
Independent
Application :
overhead line transmission
Description

SZ2B-13 13T Balancing Head Board Running Board For Two Bundle Conductor

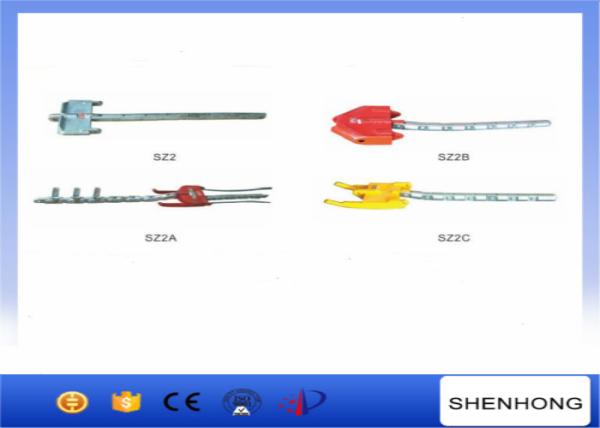

2 Bundled Conductors Running Boards
Item No.
Model
Description
Working Load (KN)
Weight (kg)
Marks
17220
SZ2-8
Used for 508X75 stringing block
80
17
Conductors are stringing separately from different bull wheels
17221
SZ2-8A
Used for 660X100 stringing block
80
19
17222
SZ2-8B
Used for 822X110 stringing block
80
20
17223
SZ2A-8
Used for 660X100 stringing block
80
90
Balance pulley structure
17224
SZ2B-13
Used for 822X110 stringing block
130
55
Conductors are stringing separately from different bull wheels
17225
SZ2C-13
Used for 916X110 stringing block
130
50
17226
SZ2B-18
Used for 1024X125 stringing block
180
65
Application:
It is used for stringing 2 bundled conductors, to connect the pilot wire rope with conductors.
The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks.
The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.

SZ2B-13 13T Balancing Head Board Running Board For Two Bundle Conductor
